PL303 Stainless Steel Petrol Diesel Fuel Level Sensor ATEX Certificates
PL303 Stainless Steel Petrol Diesel Fuel Level Sensor ATEX Certificates
Specifications
Brand Name :
Atech
Model Number :
PL303
Certification :
CE, RoHs ,ISO 9001
Place of Origin :
China
MOQ :
1pc
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 pcs month
Delivery Time :
5-8 work days
Packaging Details :
standard export packing ,carton packing, water proof, shock resistance or according to customer's requirements.
Name :
Water Level Sensor
 pressure medium :
liquid compatible stainless steel
 output signal :
4~20mA, 0.4 ~4.5V, 0~5V, RS485, RS232, 868 Mhz 4~20mA+Hart
 accuracy :
0.1%FS、0.25%FS、0.5%FS (standard)
long term stability :
0.2%FS/year
compensated temperature range :
-10~70°c
operating temperature range :
-20~85°c
Description

ATECH Factory PL303 ATEX Certificates Petrol Diesel Fuel Level Sensor

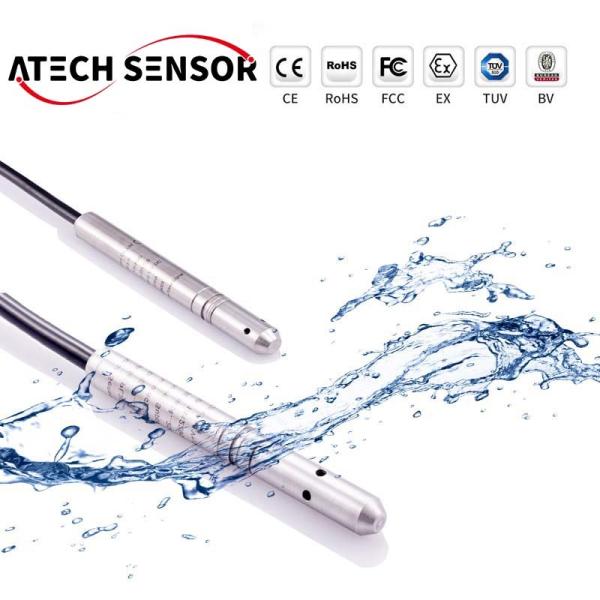

PL303 level transmitters are available in diameters as small as 13mm. Using high-performance diffused silicon pressure sensor as the measuring element, the product has a reliable amplifier circuit and precise temperature compensation, which converts the gauge pressure or absolute pressure of the measurement medium into a standard voltage or current signal.

Feature of Water Level Sensor

● Diameter : Ø13mm
● Range: 0~3m H2O...300 m H2O
● Fully welded structure, no O-ring
● Diffused silicon oil-filed sensor cell
● CE certificate
● no-polarity two wire current output
● Intrinsically sate ,explosion proof

Specifications of Water Level Sensor

pressure medium

liquid compatible stainless steel
pressure ranges

0~3 m H2O...300 m H2O
overload pressure 150%FS
output signal

4~20mA, 0.4 ~4.5V, 0~5V, RS485, RS232, 868 Mhz 4~20mA+Hart
accuracy

0.1%FS,0.25%FS,0.5%FS (standard)
load resistance

RL = (U-10)/0.02(Ω) (4~20mA current output), ＞20KΩ (voltage output)
long term stability

0.2%FS/year
supply voltage 10~36VDC
compensated temperature range -10~70°c
operating temperature range -20~85°c
storage temperature range -40~125°c
temperature coefficient of zero ±0.015%FS/°c@25°c
temperature coefficient of span ±0.02%FS/°c@25°c
insulation resistance 100MΩ@ 250VDC 100MΩ@ 500VDC
Pressure connection screw thread, throw-in type
Protection grade IP68
material of wetted part and housing 304SS or 316L
material of pressure membrane 316L
Response time 1ms


Description PL303 Submersible level transmitter

PL303 liquid level transmitter is widely used in sewage, rivers and lakes treatment, waterway, big river, l reservoir and coastline monitoring. This product has passed the intrinsically safe certification, explosion-proof certification and CE certification. The two-wire circulating current lead has no polarity.
PL303 Stainless Steel Petrol Diesel Fuel Level Sensor ATEX Certificates
PL303 Stainless Steel Petrol Diesel Fuel Level Sensor ATEX Certificates
PL303 Stainless Steel Petrol Diesel Fuel Level Sensor ATEX Certificates
