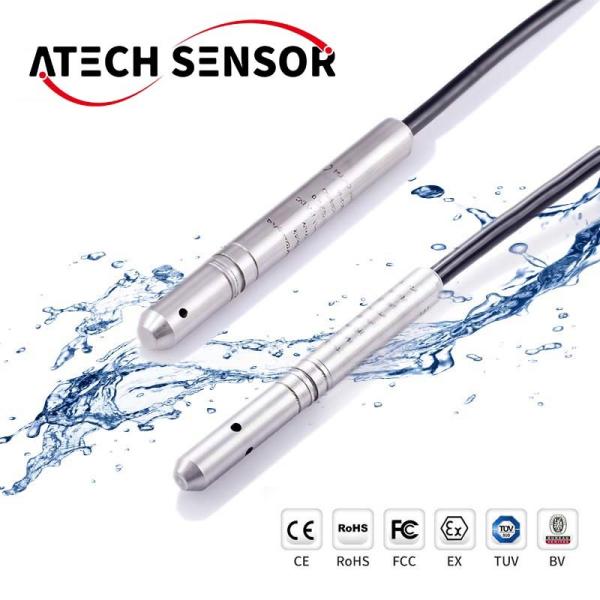

PL303 Analog Output Submersible Probe Level Sensor Water Tank Level Sensor
PL303 Analog Output Submersible Probe Level Sensor Water Tank Level Sensor
Specifications
Brand Name :
Atech
Model Number :
PL303
Certification :
CE, RoHs ,ISO 9001
Place of Origin :
China
MOQ :
1pc
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 pcs month
Delivery Time :
5-8 work days
Packaging Details :
standard export packing ,carton packing, water proof, shock resistance or according to customer's requirements.
Name :
Water Level Sensor
load resistance :
RL = (U-10)/0.02(Ω) (4~20mA current output), ＞20KΩ (voltage output)
Protection grade :
IP68
 accuracy :
0.1%FS、0.25%FS、0.5%FS (standard)
Pressure connection :
screw thread, throw-in type
material of pressure membrane :
316L
Response time :
1ms
Description

ATECH Factory PL303 SDI-12 Digital Submersible Diesel Pressure Level Sensor

PL303 series is an all-welded structure input liquid level transmitter. The product features a piezoresistive sensor with proven long-term stability and reliability, and a special digital compensation circuit housed in a robust stainless steel housing. It offers integrated construction, supports standard outputs, and cable options in multiple materials for a wide range of operating temperatures. Specifically, PL303 is mostly used for liquid level monitoring of refined oil products such as gasoline, diesel, kerosene, etc. PL303 is mostly used for liquid level monitoring of chemicals, such as methanol, ethanol, diesel exhaust fluid (DEF), diesel engine coolant, etc. These two level transmitters are also suitable for other environments with high requirements for wear protection, protection or explosion protection.

Feature of Water Level Sensor

● Diameter : Ø13mm
● Range: 0~3m H2O...300 m H2O
● Fully welded structure, no O-ring
● Diffused silicon oil-filed sensor cell
● CE certificate
● no-polarity two wire current output
● Intrinsically sate ,explosion proof

Specifications of Water Level Sensor

pressure medium

liquid compatible stainless steel

pressure ranges

0~3 m H2O...300 m H2O

overload pressure150%FS
output signal

4~20mA, 0.4 ~4.5V, 0~5V, RS485, RS232, 868 Mhz 4~20mA+Hart

accuracy

0.1%FS,0.25%FS,0.5%FS (standard)

load resistance

RL = (U-10)/0.02(Ω) (4~20mA current output), ＞20KΩ (voltage output)

long term stability

0.2%FS/year

supply voltage10~36VDC
compensated temperature range-10~70°c
operating temperature range-20~85°c
storage temperature range-40~125°c
temperature coefficient of zero±0.015%FS/°c@25°c
temperature coefficient of span±0.02%FS/°c@25°c
insulation resistance100MΩ@ 250VDC 100MΩ@ 500VDC
Pressure connectionscrew thread, throw-in type
Protection gradeIP68
material of wetted part and housing304SS or 316L
material of pressure membrane316L
Response time1ms


Description PL303 Submersible level transmitter

PL303 liquid level transmitter is widely used in the treatment of sewage, groundwater, rivers and lakes, as well as the monitoring of canals, large rivers, large reservoirs and coastlines. The product has obtained intrinsic safety certification, explosion-proof certification and CE certification. The wires of the two-wire system are non-polarized.
PL303 Analog Output Submersible Probe Level Sensor Water Tank Level Sensor
PL303 Analog Output Submersible Probe Level Sensor Water Tank Level Sensor
PL303 Analog Output Submersible Probe Level Sensor Water Tank Level Sensor
