PL301 Throw-In Type Liquid Level Sensor, Ceramic Capacitive Sensor, Sewage Pressure Level Transducers & Transmitters

PL301 series level transmitter has universal design suitable for multi industry application, also special design for different industry application characteristics. We will carefully analyze the customer's working environment and requirements, then select the most appropriate products; we can also customize the products according to the user's special requirements, so that every user of Atech can get the best use experience.

Feature of Water Level Sensor

● Use of good anti-corrosion materials, 5-layer waterproof structure IP68

● Uses 316L stainless steel housing and diaphragm

● Adopt imported MEAS TE diffusion silicon sensor

● Polyurethane wire is effective against interference, abrasion and oil

● Intrinsically sate ,explosion proof

Specifications of Water Level Sensor

Description PL301 Submersible level transmitter

The PL301 Submersible Level Transmitter / Hydrostatic Level Sensor is designed for use in rivers, reservoirs, storage tanks, boreholes, vessels and channels. They have long-term immersion protection to 100 meters and are also ideal for measuring pressure in submerged pipes and vessels.
For applications with aggressive media such as seawater or leachate, especially landfills, we can offer submersible level transmitters in high-grade duplex stainless steel with extremely high corrosion resistance.

Electrically interface with hydrostatic level transmitters using triple-sealed back-end assemblies and custom vented PUR cables. This provides the barometric pressure reference and guarantees IP68 integrity to a water depth of 100m.

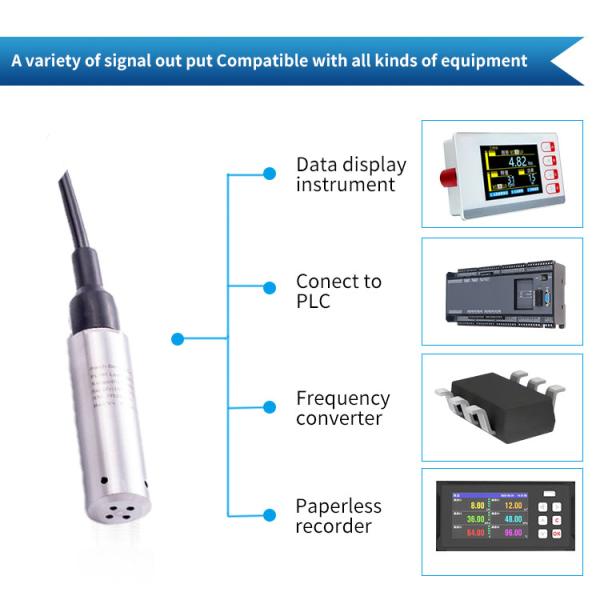

The output of the standard level transmitter is a two-wire 4-20mA signal with a surge protection circuit to reduce the effects of electrical transients caused by nearby lightning strikes and power fluctuations. For applications using a data logger, a ratiometric version is available which provides a 0.5-4.5Vdc output from a 5Vdc supply.
