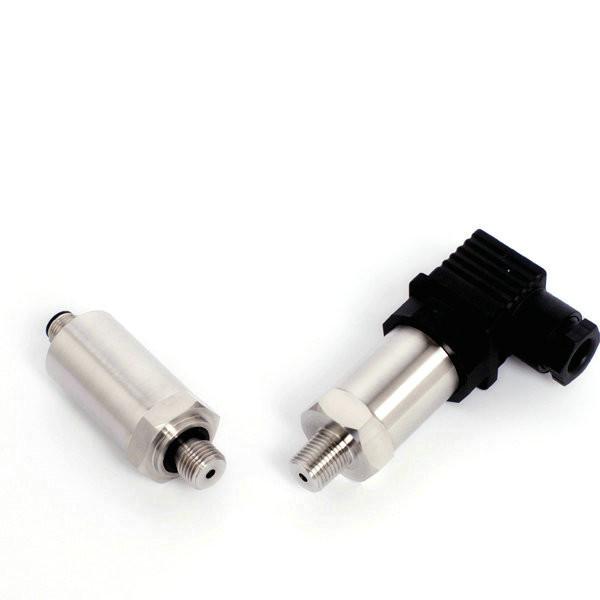

10~30V Flush Diaphragm Pressure Sensor For Food , Medicine Industry
10~30V Flush Diaphragm Pressure Sensor For Food , Medicine Industry
Specifications
Brand Name :
Atech sensor
Model Number :
PT206-2
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 pcs month
Delivery Time :
5-8 working days
Packaging Details :
standard export packing ,carton packing, water proof, shock resistance or according to customer's requirements.
Product Name :
Flush Diaphragm Pressure Sensor
pressure ranges :
-1~0.1 bar 0~0.1...1000bar
overload pressure :
300%FS(<700bar) 200%FS(<100bar)
output signal :
4~20mA, 0~5V, 0~10V, 1~5V,0.5-4.5V
accuracy :
0.25% FS ,0.5% FS
long term stability :
0.25%FS/year
supply voltage :
10~30V
operating temperature range :
-40~+85°c
Description

10~30V Flush Diaphragm Pressure Sensor For Food , Medicine Industry

Flush Diaphragm Pressure Sensor meets the requirement of GMP, which is suitable for the hygienic level system. In such a system, the medium can not contact with the instrument measuring system. Diaphragm seals do not produce dead corners or areas that cannot be emptied. These instruments have the advantages of quick disassembly, convenient assembly, non-pollution, easy cleaning, stable and reliable technical performance, and can be widely used in pharmaceutical, food, beverage, cheese, and water treatment industries.

Feature

● MEMS technology

● Diaphragm :316L

● CE certificate

● Full temperature range compensation

● Intrinsic safety

Applications

● Industrial process control
● food medicine,health and wine industry

10~30V Flush Diaphragm Pressure Sensor For Food , Medicine Industry

10~30V Flush Diaphragm Pressure Sensor For Food , Medicine Industry

Speifications

pressure medium gas liquid compatible stainless steel
pressure ranges -1~0.1 bar 0~0.1...1000bar
overload pressure 300%FS(<700bar) 200%FS(<100bar)
output signal 4~20mA, 0~5V, 0~10V, 1~5V,0.4-4.5V
accuracy 0.25% FS ,0.5% FS
load resistance RL = (U-10)/0.02(Ω) (4~20mA current output), ＞20KΩ (voltage output)
long term stability 0.25%FS/year
supply voltage 10~30V
compensated temperature range -10~70°c
operating temperature range -40~+85°c (typical) -40~ +125°c
storage temperature range -40~+120°c
temperature coefficient of zero 0.3%FS/10°c
temperature coefficient of span 0.3%FS/10°c
insulation resistance 100MΩ@ 50VDC
process connection G1/4 or others
electrical connection DIN 43650 or others
material of wetted part 1Cr18Ni9Ti
material of pressure membrane 316L
material of housing 1Cr18Ni9Ti
weight 185g

FAQ

1.Q: How long is the delivery?

-- Mostly within 10days

2.Q:Can I get a sample?

-- Sure, contact our sales please

3.Q:What is your MOQ?

-- 1pcs

4.Q: How about warranty time?

-- 12-18month

5.Q: How can I visit your factory?

-- Fly to Xian Yang air port, it’s our pleasure to pick you up.

6.Q:How do you control your quality ?

-- We have EPR system .we control from parts, process, testing, packing ,retesting.

Every Sensor will be tested two times before reach you, after that sport test for the third time. Make sure about the quantity.

Ordering guide:

In order to recommend the suitable sensor, please kindly advise us the following information

1..What is your testing medium ? oil, water, gas, waster water, or others.

2.Working temperature of the sensor ? -40°C~100°C or others

3.Pressure range ? -1-0bar,0-1bar,0-16bar,0-40bar,0-100bar,0-600bar or others

4.Output signal? 4-20mA, 0-5V ,0.5-4.5V,0-10V,RS485 or other

5.Electronic connection ? DIN43650 ,Packard, Aerial plug, direct cable or others.

6.Screw ? M20×1.5,G1/4,G1/2,R1/2,NPT1/2
