Specifications
Brand Name :
TeXin
Model Number :
TX-300W
Certification :
CE ISO
Place of Origin :
Shenzhen China
MOQ :
2
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000/month
Delivery Time :
5-8 days
Packaging Details :
durable case or box
Antenna :
Omnidirectional antenna
Lightning Protection :
DC ground
Vswr :
≤1.5
Working Range :
360°
Material :
Fiberglass
Weigh :
61g
Gain :
3dBi(customized)
Input Impedance :
50Ω
Size :
93*19mm
OutPower :
300W
Description

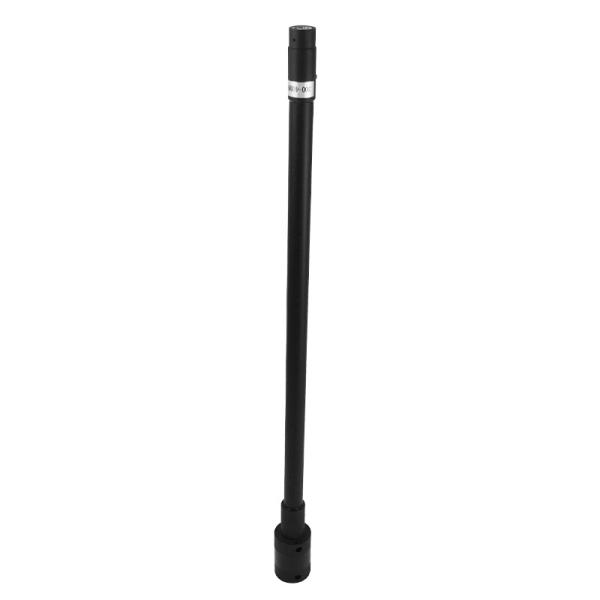

360-Degree Coverage 200-300MHz High Gain Antenna with 300W Power Output

This antenna has a powerful power output of up to 300W, which can ensure the strength and stability of signal transmission, and maintain excellent communication effects even in complex electromagnetic environments or long-distance transmission scenarios. The omnidirectional antenna design can achieve 360-degree signal coverage. This means that it can evenly transmit and receive signals in all directions without having to precisely align the receiving end like a directional antenna, greatly increasing the flexibility and convenience of use. 200 - 300MHz Omnidirectional Antenna High Power 300W antenna with high power, omnidirectional coverage, specific frequency band adaptation, and other characteristics.

360-Degree Coverage 200-300MHz High Gain Antenna With 300W Power Output

Product specification

Electrical Specifications
Frequency Range (MHz) 200-300MHz
Bandwidth (MHz) 250
Input Impendence (Ω) 50
V.S.W.R ≤1.5
Gain (dBi) 3.0/5.0
Polarization Type Vertical
Lightning Protection DC ground
Power Capacity (w) 300w
Mechanical Specifications
Antenna Length (mm) 93*19mm
Radiator copper
Connect Type SMA/RP SMA/TNC/BNC/N
Working Temp(℃) -40~60
Storage Temperature(℃) -20~40
Radome Color Black
Weight (g) 61g

Product feature

1. a high gain

2. Good anti-interference ability

3. 360-degree omnidirectional coverage

4. The antenna is designed with circular polarization

360-Degree Coverage 200-300MHz High Gain Antenna With 300W Power Output

360-Degree Coverage 200-300MHz High Gain Antenna With 300W Power Output

360-Degree Coverage 200-300MHz High Gain Antenna With 300W Power Output
