Specifications
Brand Name :
TeXin
Model Number :
TX-50W
Certification :
CE ISO
Place of Origin :
Shenzhen China
MOQ :
2
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000/month
Delivery Time :
5-8 days
Packaging Details :
durable case or box
Frequency :
400-5800MHZ (Customized)
Max Gain :
47dBm
Work Temperature :
-20~+70
Weight :
0.294kg
Max Output Power :
50W
Temperature Protection :
75℃
Size :
179*50*20mm
Material :
Aluminium
Power Amplifier Efficiency :
45
Description

400-5800MHz 50W Amplifier Module with Temp Protection

This 400-5800MHz 50W amplifier module with temp protection is designed by TeXin company. This high-performance 400-5800MHz 50W amplifier module is a cutting-edge solution for enhancing signal strength in a wide range of applications. Equipped with advanced temperature protection technology, it ensures stable and reliable operation even in demanding environments.

This 400-5800MHz 50W amplifier module with temp protection covers the frequency range from 400MHz to 5800MHz, making it suitable for a variety of communication systems such as school,Broadcasting ,prison and so on. The amplifier module features a compact and lightweight design, which is convenient for installation and integration into various systems.

400-5800MHz 50W Amplifier Module with Temp Protection for Wide Range of Applications

400-5800MHz 50W Amplifier Module with Temp Protection for Wide Range of Applications

400 - 5800MHz 50W Amplifier Module with Temp Protection Specification

No. Item Data Unit Notes
1 Frequency 400-5800 MHZ Customized
2 Work Temperature -20~+70 ℃
3 Max Output Power 50 W
4 Work Voltage DC28 V
5 Max Gain 47 dB
6 Flatness ±1 dB　
7 Max Current 4 A
8 Output VSWR ≤1.5
9 Output Connector SMA/F 50Ω Customized
10 Power Amplifier Efficiency 45 when Max Output
11 Switch Control

high low

level current

 V 0V off /0.6 on
12 Standing Wave Protection OK
13 Temperature Protection 75° ℃

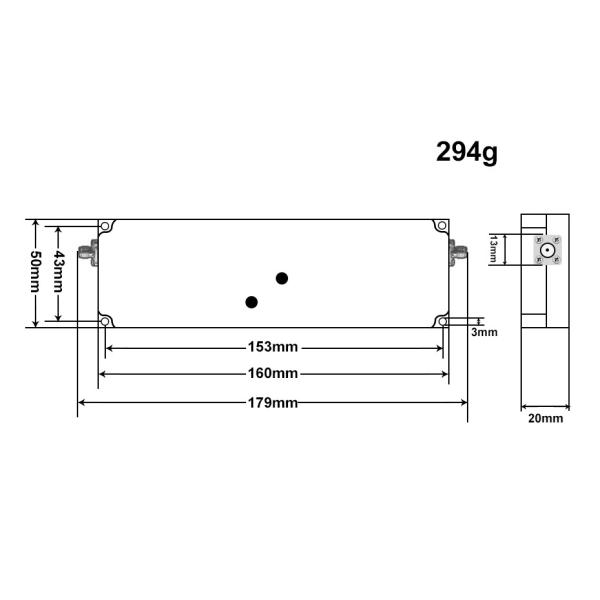

14 Size 179*50*20 mm
15 Weight 0.294 Kg

400-5800MHz 50W Amplifier Module with Temp Protection for Wide Range of Applications

Product features

1. With Temperature Protection

2. Compact and Portable

3. Customized frequency you want.

FAQ

1.Are you a manufacturer?
Yes, our factory locates in LongGang District, Shenzhen, welecom to visit us here
2.MOQ?
1 to 100pcs
3.Payment term?
T/T, Alibaba Trade Assurance(Visa, Mastercard, E-checking,etc), WestUnion, Paypal, etc
4.How to proceed an order ?
A.Let us know your requirement and product application through inquiry on Alibaba website B.We quote according to your specific need C.Customers agree with the quotation and make the payment
5.How to do if I receive defective products?
Our strict quality control will ensure 100% pass rate. But it can be damaged in the way. Please kindly share the defective product photo or video to let us know where the problem is. We will make the compensation accordingly or send you new electronic part or product.
