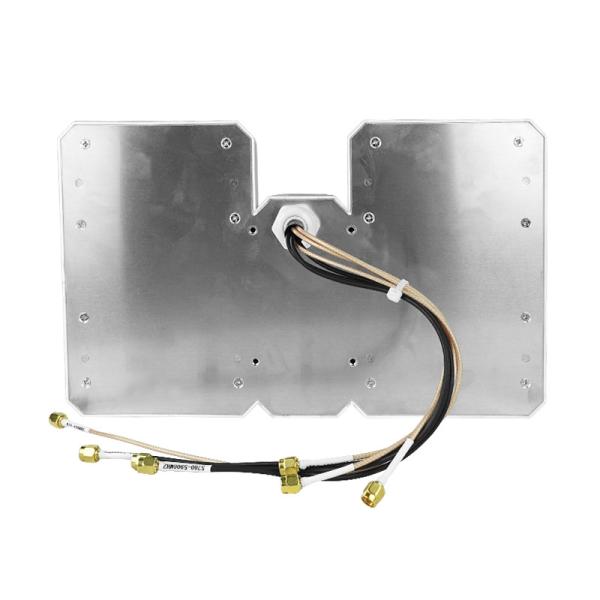

High Gain Butterfly Antenna The Ultimate Choice for High-Performance Wireless Communication
High Gain Butterfly Antenna The Ultimate Choice for High-Performance Wireless Communication
High Gain Butterfly Antenna The Ultimate Choice for High-Performance Wireless Communication
High Gain Butterfly Antenna The Ultimate Choice for High-Performance Wireless Communication
High Gain Butterfly Antenna The Ultimate Choice for High-Performance Wireless Communication
High Gain Butterfly Antenna The Ultimate Choice for High-Performance Wireless Communication
High Gain Butterfly Antenna The Ultimate Choice for High-Performance Wireless Communication
High Gain Butterfly Antenna The Ultimate Choice for High-Performance Wireless Communication
High Gain Butterfly Antenna The Ultimate Choice for High-Performance Wireless Communication
High Gain Butterfly Antenna The Ultimate Choice for High-Performance Wireless Communication
High Gain Butterfly Antenna The Ultimate Choice for High-Performance Wireless Communication
High Gain Butterfly Antenna The Ultimate Choice for High-Performance Wireless Communication
High Gain Butterfly Antenna The Ultimate Choice for High-Performance Wireless Communication
High Gain Butterfly Antenna The Ultimate Choice for High-Performance Wireless Communication
Specifications
Brand Name :
TeXin
Certification :
CE ISO
Place of Origin :
Shenzhen China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000/month
Delivery Time :
5-8 days
Packaging Details :
durable case or box
Frequency Range :
Customzied
Gain :
5-12dmi
color :
white
weight :
350g
size :
300*180*132mm
Polarization :
Vertical
V.s.w.r :
≤2.0
Function :
antenna
Description

The Butterfly antenna is a unique and high-performance antenna designed to meet the diverse needs of wireless communication. With its distinctive design and excellent performance characteristics, it has become a popular choice in various applications. Tx as a professional module manufacturer, you can rest assured to buy module from our factory and we will offer you the best after-sale service and timely delivery.

High Gain Butterfly Antenna The Ultimate Choice for High-Performance Wireless Communication

High Gain Butterfly Antenna The Ultimate Choice for High-Performance Wireless Communication

Specification

Electrical Specifications
FrequencyRange 860-930/1160-1280/1560-1620/2400-2500/5150-5350/5700-5900MHz
Gain(dBi)

860-930MHz 5dbi

1160-1280MHz 8dbi

1560-1620MHZ 8dbi

2400-2500MHz 12dbi

5150-5350MHz 12dbi

5700-5900MHz 15dbi
VSWR ≤2
Polarization

860-930MHz V

1160-1280MHz V

1560-1620MHZ V

2400-2500MHz V

5150-5350MHz H

5700-5900MHz V
Horizontal Beamwidth(0º) 65±5º
Vertical Beamwidth(0º)

860-930MHz 65±5º

1160-1280MHz 65±5º

1560-1620MHZ 65±5º

2400-2500MHz 45±5º

5150-5350MHz 28±5º

5700-5900MHz 28±5º
Front-to-back ratio(dB) ≥18
Electrical lower inclination(0º) 0º
Input Impedance(Ω) 50Ω
Maximum input power(W) 50W
Input connector type 086 cable with 6*SMS-J
Lightning Protection DC Ground
Mechanical Specifications
Dimensions­mm(Height/Width/Depth) 300*180*132mm
Antenna weight(kg) 0.35kg
Operational Humidity(％) 10- 95
Radome Color original color
Operating temperature(ºC) -30～70 º
Installation Method Machine installation

High Gain Butterfly Antenna The Ultimate Choice for High-Performance Wireless Communication

FAQ

1.Are you a manufacturer?
Yes, our factory locates in LongGang District, Shenzhen, welecom to visit us here
2.MOQ?
1 to 100pcs
3.Payment term?
T/T, Alibaba Trade Assurance(Visa, Mastercard, E-checking,etc), WestUnion, Paypal, etc
4.How to proceed an order ?
A.Let us know your requirement and product application through inquiry on Alibaba website B.We quote according to your specific need C.Customers agree with the quotation and make the payment
5.How to do if I receive defective products?
Our strict quality control will ensure 100% pass rate. But it can be damaged in the way. Please kindly share the defective product photo or video to let us know where the problem is. We will make the compensation accordingly or send you new electronic part or product.
