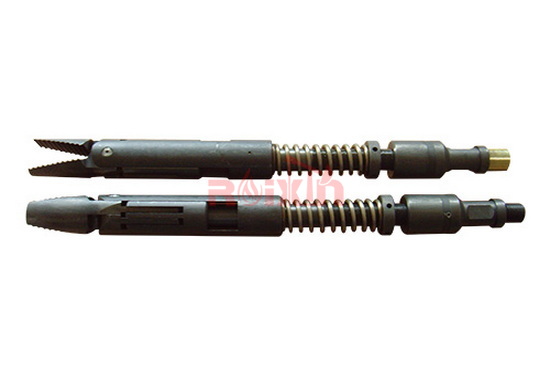

Nickel Alloy 2 Inch Wireline Grab Slickline Fishing Tools

2 inch Wireline Grab Wireline Fishing Tool

I.Overview:
The spear in the steel wire is used to catch the steel wire broken in the tubing.
The inner fishing spear is composed of a salvage chamber composed of a male buckle top part and two or three elastic tip pieces. The tip piece is welded with a tip strip to form a hook shape to grasp the end of the broken steel wire that has formed a hook loop. When the wire breaks under the packing box, an integral object such as a slotted barrel wire finder must be inserted before lowering the fishing spear to determine the position of the broken end and smash it into a ball.
II. Structural features and use:
1. There are many sizes and models of steel wire inner spears, and different inner spears can be selected according to different tubing sizes. The inner spear has good elasticity, and its spear tip must slide along the pipe wall to prevent the wire from slipping through the net.
2. If the spear is more than one or two meters above the head of the wire and then the wire is caught, the wire may accumulate on the top of the spear and the wire cannot be caught. When the spear is fishing the wire, attach the rope cap to the spear and then connect it to the RB fishing tool to go down the well. Once the spear is entangled by the steel wire, it can be thrown away at the RB with an upward shock.
III, matters needing attention:
Before using the inner spear of the steel wire, the wire finder must be lowered to form the steel wire nest in the well to facilitate the smooth fishing of the inner spear. Note: Special specifications can be provided according to customer requirements.
