16 Inch Hay Pulley Wireline Pressure Control Equipment For Well Intervention
16 Inch Hay Pulley Wireline Pressure Control Equipment For Well Intervention
Specifications
Brand Name :
Ruixin
Model Number :
12 inch 14inch 16inch 18inch 20inch
Certification :
API
Place of Origin :
China Baoji
MOQ :
1
Payment Terms :
T/T
Supply Ability :
1 set 3 weels
Delivery Time :
3-4 weeks
Packaging Details :
Wooden Box
Name :
16 Inch Wireline Hay Pulley Wireline Pressure Control Equipment
Sheave Size :
16inch
Use :
Well intervention
Wireline PCE :
Wireline Hay Pulley
Material :
Cast aluminum
Operation :
Wireline operation and slickline operation
Description

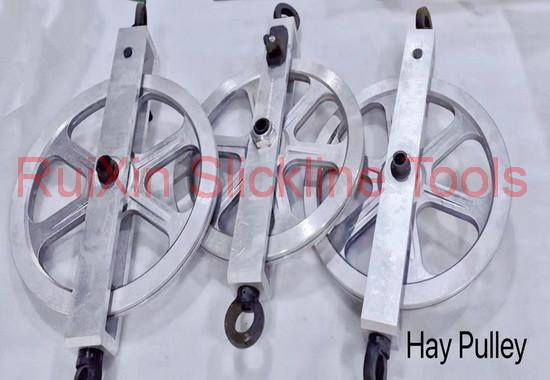

16 Inch Wireline Hay Pulley Wireline Pressure Control Equipment

I. Introduction:

The ground pulley is used to pull the steel wire or cable (wire rope) from the top of the blowout pipe to the steel wire or cable drum plane, so that the pulling force of the steel wire or cable (wire rope) is moved from the vertex to the Christmas tree, thereby reducing the steel wire or cable (wire rope) The side tension load prevents the blowout pipe from being bent and damaged. You can also lift the ground pulley to change the load direction of the steel wire or cable (wire rope).

II. Technical parameters:

1. Applicable steel wire specification: 0.125";
2. Pulley specification: 16";
3. Safety load: 20KN (2.0 tons).

III. matters needing attention:
1. Before use, check the wear of the anti-hopping block on the carrier to ensure that the steel wire or cable (wire rope) does not jump out of the wheel groove;
2. When storing, it is strictly forbidden to hit the pulley with heavy objects to avoid deformation;
3. The specifications of the ground pulley should be selected according to the diameter of the steel wire or cable (steel rope), so as to avoid excessive bending of the steel wire or cable (steel rope) and fatigue damage;
4. When the ground pulley is used in conjunction with the floor stand, it can prevent the steel wire from instantaneous relaxation and impact on the pulley.
Welcome to comtact us at any time.
