Specifications
Brand Name :
Yoston
Model Number :
Stainless Steel Wire Mesh
Certification :
ISO 9001:2008 / CE / EN / SGS
Place of Origin :
China
MOQ :
1 M2
Payment Terms :
L/C, T/T
Delivery Time :
5-8 days
Packaging Details :
Water proof paper inside outside with Carton or Wooden Case
Materials :
ASTM 304 / 316 / 316L Etc.
Weaving Type :
Plain weave, Twill weave, dutch weave
Mesh :
1-100 mesh
Advantage :
have stock mostly
Application :
Industrial filter
Name :
stainless steel screen
Description

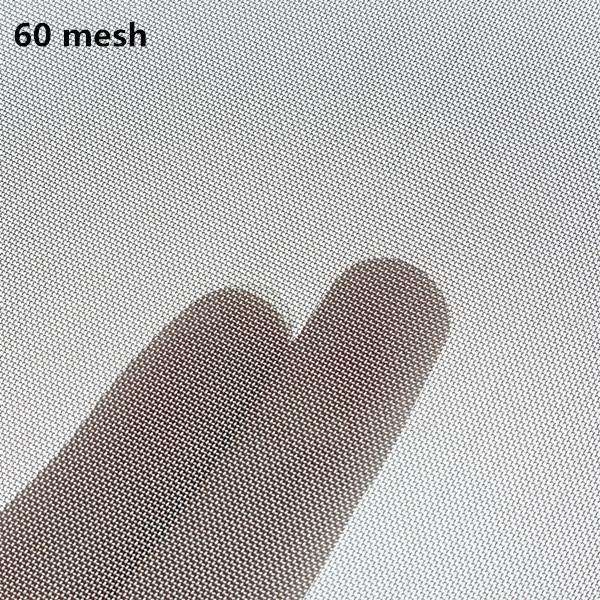

Diagonal seam Stainless steel woven wire mesh for paper machine cylinder mould

Product intruduction

"Diagonal processing" is the cutting of a sheet of wire mesh to a predetermined angle.And then processing it into an endless roll. This kind of stainless steel wire mesh is usd for cylinder machine in paper making process,especially for tissue paper making.

Material: SUS 304,316,316L.

Mesh: 2-635 mesh standard wire gauge

Width: 1.2mtr-5.0MTR Length:30.0MTR

Material Heat treated yarn 304 stainless steel wire.(AISI 316,SUS316L for choosing.)
Pattern Plain weave ( Twill weave, Satin weave, Twisted weave, Crimped weave for selection).
Type mono-filament.
Wire diameter 0.05mm to 4.0mm.(can be customized)
Mesh size customized.
Wire density according to client's requirement.
Temperature 180-200℃.
Finishing Endless / Open ended.
Position Paper Machine Cylinder Mould.
Application Main in paper Industry.(also suit for other industry,such as processing of oil,food,chemical,etc.)

.

Feature

  • Acid-resistant, alkali-resistant,non-toxic.
  • Wear-resistant,no seam marks,no static charge.
  • Net body smooth, tensile strong, good ventilation.
  • Running smoothly, .wide adaptability.
  • Heat resisting and wear proof.
  • Increase paper making speed, and speed up the slurry filter water.
  • No splashing pulp phenomena due to high speed, good protection for fiber.

  • Changed the fiber configuration way, the fiber vertical array more against square opening in common fabric,the pull strength in vertical is good but worse in crosswise.

  • Avoid the problem from traditional paper making fabric, such as wire mesh looseness, poor flatness, and pulp left in mesh.

Stainless Steel Mesh Specification (Plain Weave)
Mesh Wire Dia Aperture
Inch mm Inch mm
20X20 0.02 0.51 0.03 0.76
20X20 0.016 0.41 0.034 0.86
24X24 0.014 0.36 0.0277 0.70
30X30 0.013 0.33 0.0203 0.52
30X30 0.012 0.31 0.0213 0.54
30X30 0.009 0.23 0.0243 0.62
40X40 0.01 0.25 0.015 0.38
50X50 0.009 0.23 0.011 0.28
50X50 0.008 0.20 0.012 0.31
60X60 0.0075 0.19 0.0092 0.23
60X60 0.007 0.18 0.0097 0.25
80X80 0.0065 0.17 0.006 0.15
80X80 0.0055 0.14 0.007 0.18
100X100 0.0045 0.11 0.0055 0.14
100X100 0.004 0.10 0.006 0.15
100X100 0.0035 0.09 0.0065 0.17
120X120 0.0037 0.09 0.0064 0.12
150X150 0.0026 0.07 0.0041 0.10
160X160 0.0025 0.06 0.0038 0.10
180X180 0.0023 0.06 0.0033 0.08
200X200 0.0021 0.05 0.0029 0.07
250X250 0.0016 0.04 0.0024 0.06
300X300 (SS316) 0.0051 0.04 0.0018 0.05
325X325 (SS316) 0.0014 0.04 0.0017 0.04
400X400 (SS316) 0.001 0.03 0.0015 0.37
500X500 (SS316) 0.001 0.03 0.001 0.03
635X635 (SS316) 0.0008 0.02 0.0008 0.02

Making process :

Diagonal Seam Stainless Steel Woven Wire Mesh Paper Machine Cylinder Mould Applied

Applications

Stainless steel wire mesh and stainless steel wire cloth products are widely used in petroleum, chemical industry, environment protection, mine, airspace, paper-making, electronic, metallurgy etc. Special size and specification are available according to customers' requirement.
