Bow Top Heavy Duty Wire Mesh Fencing Railings Security Fixings For Swimming Pool
Bow Top Heavy Duty Wire Mesh Fencing Railings Security Fixings For Swimming Pool
Bow Top Heavy Duty Wire Mesh Fencing Railings Security Fixings For Swimming Pool
Bow Top Heavy Duty Wire Mesh Fencing Railings Security Fixings For Swimming Pool
Bow Top Heavy Duty Wire Mesh Fencing Railings Security Fixings For Swimming Pool
Bow Top Heavy Duty Wire Mesh Fencing Railings Security Fixings For Swimming Pool
Specifications
Brand Name :
Yoston
Model Number :
Bow Top Fence
Certification :
ISO 9001:2008 / FDA / SGS / CE/ EN
Place of Origin :
China
MOQ :
100 Pcs
Payment Terms :
L/C, T/T
Supply Ability :
10000 Pcs / Day
Delivery Time :
Depend on the quantity , usually 1-2 weeks
Packaging Details :
Stretch film ,carton box ,steel pallet or as per your requirement
Materials :
Steel
Surface Treatment :
hot dipped galvanized , powder coated
Color :
Green, Blue, Red, Yellow, Black,etc
Wire Dia. :
19 mm
Feature :
Strong and Easily Assembled
Market :
Singarpore , Malaysia, Indonesia, Australia Etc.
Description

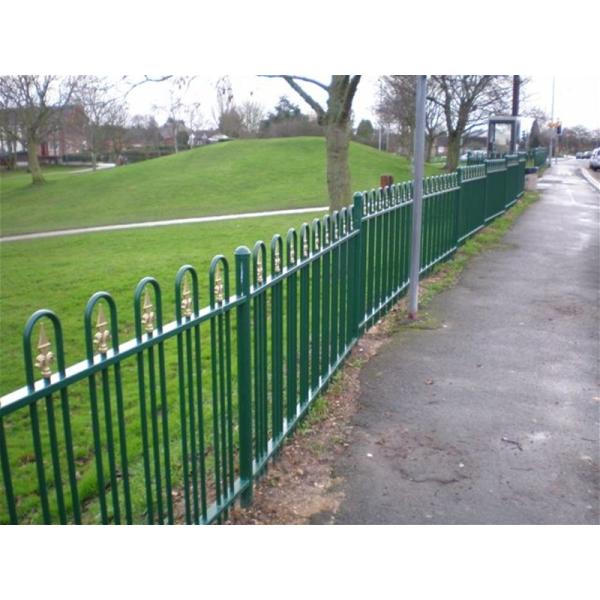

Bow Top Fencing and Railings for Swimming Sool

Yoston provide the most comprehensive range of Bow Top Fencing available. From the cost effective single Bow to our more elaborate’ Blythe’ design, we have a fence to suit every requirement.

Available in standard panels from stock or bespoke panels can be manufactured to non standard length and raked and radiused to suit individual requirements. In heights ranging from 600mm to 2000mm.

SUITABLE FOR :

  • Recreation Areas
  • Schools
  • New Build Housing

FEATURES :

  • Compliant with BS 1722 Pt. 9
  • Security Fixings
  • Stepping Cleats
  • Welded Construction
  • Hot Dip Galvanised to BS EN ISO 1461
  • Polyester Powder Coated option
  • Various Designs Available

SECURITY LEVEL :

  • Low – Medium

Gates in any width or height can be manufactured to suit all our designs

Perfect for a wide variety of applications, Bow Top fencing and gates, also known as Hairpin fencing or hoop top fencing, provides a versatile and durable demarcation and access solution. Our Bow top fencing has a pale through rail construction with no visible joins is immensely strong and because it's tubular and lighter than traditional solid steel, requires fewer support posts making installation faster and less costly.

1. hoop top railings /hairpin fencing / bow top railings standard dimensions

Height Pales Post Sizes Post Centres
1.0m 19mm Ø CHS 60.3mm Ø 3.0m
1.2m 19mm Ø CHS 60.3mm Ø 3.0m
1.5m 19mm Ø CHS 60.3mm Ø 3.0m
1.8m 19mm Ø CHS 60.3mm Ø 3.0m

2. Finish Options

  • Galvanized to BS EN 1461 as standard
  • Galvanized and powder coated to BS EN 13438 in one of our standard colours at extra cost
  • Powder coated to any other BS or RAL colour to special order

3. Installation Options

• Cranked posts bolted to wall

• Base plated posts

• Clad with mesh

• Sheeted

4. Optional additional features

We have introduced two new additional features you can add to our classic Round Top fences, just to add a little extra interest and to give your fence a different look, please ask for details. Also known as hairpin railings.

5.Matching Bow Top Gates

We can provide matching single and double leaf gates to order, with or without automated operation and access control. Gates are available as single and double swing gates with manual operation or automated with underground, swing arm or safety-glide (operator concealed in the post) operators. Single and double sliding gates available in cantilever, tracked and telescopic designs as manually operated or with fully automated operation.

Application :

Transport Infrastructural

  • Highway
  • Isolation for Road
  • Airport

Corporate / Residential Sector

  • Residential
  • Complex
  • Showroom
  • Terminal

Leisure Amusement Sector

  • Parks
  • Sidewalks
  • Playground
  • Theme Park

Others Uses

  • Landscaping
  • Police Quarters
  • Garden
  • Car Park
  • Agriculture Farms

Bow Top Heavy Duty Wire Mesh Fencing Railings Security Fixings For Swimming Pool

Bow Top Heavy Duty Wire Mesh Fencing Railings Security Fixings For Swimming Pool

Bow Top Heavy Duty Wire Mesh Fencing Railings Security Fixings For Swimming Pool
