Plain Weave Nickel 200 Woven Wire Mesh Cloth 0.15 - 2mm Aperture For Filter Media
Plain Weave Nickel 200 Woven Wire Mesh Cloth 0.15 - 2mm Aperture For Filter Media
Plain Weave Nickel 200 Woven Wire Mesh Cloth 0.15 - 2mm Aperture For Filter Media
Plain Weave Nickel 200 Woven Wire Mesh Cloth 0.15 - 2mm Aperture For Filter Media
Plain Weave Nickel 200 Woven Wire Mesh Cloth 0.15 - 2mm Aperture For Filter Media
Plain Weave Nickel 200 Woven Wire Mesh Cloth 0.15 - 2mm Aperture For Filter Media
Specifications
Brand Name :
Yoston
Model Number :
Woven Wire Mesh
Certification :
ISO 9001:2008 / CE / EN / SGS
Place of Origin :
China
MOQ :
1 M2
Payment Terms :
L/C, T/T
Delivery Time :
5-8 days
Packaging Details :
Water proof paper inside outside with Carton or Wooden Case
Materials :
nickel 200, nickel 205, nickel 270, N2, N4, N6, N8
Mesh :
10 - 100 Mesh
Aperture :
0.15 mm - 2mm
Application :
Filter , Battery Etc.
Feture :
Acid and Alkali resistant
Advantage :
have stock mostly
Description

Plain weave nickel 200 woven wire mesh cloth manufacturer of filter media

Introduction

Nickel wire mesh is mainly used in acid and alkali conditions screening and filtration or gas, liquid filtration and other media separation. There are plain weave, twill weave, dutch weave pattern three kinds of methods.

material nickel 200, nickel 205, nickel 270, N2, N4, N6, N8
wire diameter 0.0381mm-1.994mm
weaving type plain weave, twill weave and dutch weave,
mesh counts 1-300 Mesh
technique woven wire mesh
mesh rolls size 1x30m 2x30m 1.524x30m 0.914x30m etc.
sample free and avaliable
surface flat and bright
Feature

1.Excellent corrosion, acid and alkali resistance.

2.High electrical conductivity, thermal conductivity and ductility.

3.Heat resistance.

4.Wear resistance.
Usage

1. Used as the filtration materials in the mining, oil, chemical, food, pharmaceutical, machine and other fields.

2. Used in the electronics for its high electrical conductivity.

3. Used for battery production.

Characteristics:

characteristic has bears the acid and alkali,against leakage ability strongly,the easy curl,the cost low status.Widely uses in the battery profession,the manufacture nickel cadmium,the nickel battery,the carp iron electron battery.

Specification:

Mesh/Inch Wire Gauge SWG Aperture mm
3 14 6.27
4 16 4.27
5 18 3.86
6 18 3.86
8 20 2.26
10 20 1.63
20 30 0.95
30 34 0.61
40 36 0.44
50 38 0.36
60 40 0.30
80 42 0.21
100 44 0.172
120 44 0.13
150 46 0.108
160 46 0.097
180 47 0.09
200 47 0.077

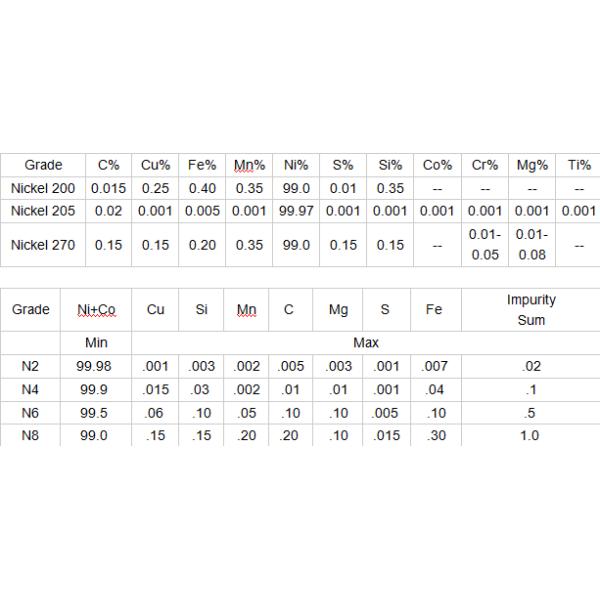

Chemical Composition


Plain Weave Nickel 200 Woven Wire Mesh Cloth 0.15 - 2mm Aperture For Filter Media

Contect Details :

Anping Yoston Metal Wire Mesh Co.,Ltd.

No.56 Yuhua South Road , Anping Hebei China

Tel / Wechat / Whatsapp: +86 15833839680

Email: yoston@foxmail.com

Skype: amyhdff

Attn: Amy
