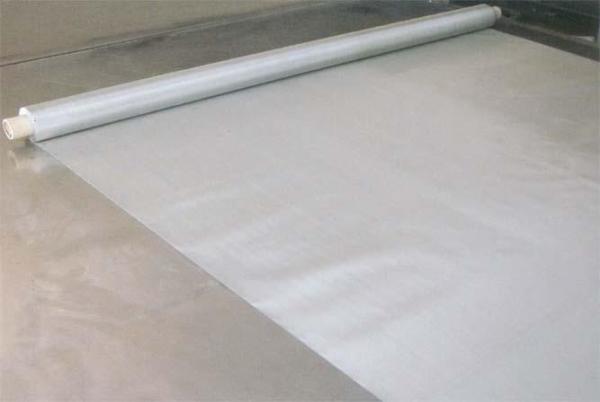

100 Mesh Inconel 600 625 Fine Woven Wire Mesh Filter Screens 0.15 - 2mm Aperture
100 Mesh Inconel 600 625 Fine Woven Wire Mesh Filter Screens 0.15 - 2mm Aperture
100 Mesh Inconel 600 625 Fine Woven Wire Mesh Filter Screens 0.15 - 2mm Aperture
100 Mesh Inconel 600 625 Fine Woven Wire Mesh Filter Screens 0.15 - 2mm Aperture
100 Mesh Inconel 600 625 Fine Woven Wire Mesh Filter Screens 0.15 - 2mm Aperture
100 Mesh Inconel 600 625 Fine Woven Wire Mesh Filter Screens 0.15 - 2mm Aperture
Specifications
Brand Name :
Yoston
Model Number :
Woven Wire Mesh
Certification :
ISO 9001:2008 / CE / EN / SGS
Place of Origin :
China
MOQ :
1 M2
Payment Terms :
L/C, T/T
Delivery Time :
5-8 days
Packaging Details :
Water proof paper inside outside with Carton or Wooden Case
Materials :
inconel 600 / 625 / 718 / 750 / 800 etc.
Mesh :
10 - 100 Mesh
Aperture :
0.15 mm - 2mm
Application :
Filter , Battery Etc.
Feture :
Acid and Alkali resistant
Advantage :
have stock mostly
Description

100 mesh inconel 600 625 woven wire mesh filter screens for filter media

Inconel 600 is a nickel-chromium alloy that offers high levels of resistance to a number of corrosive elements. In high-temperature situations, Inconel 600 will not succumb to chloride-ion stress-corrosion cracking or general oxidation. The alloy is also resistant to caustic corrosion and corrosion caused by high purity water.

1. Material: Inconel 600 / 610 / 625 / 718 / 750 / 800 ,etc.

2. Wire Diameter: 0.25mm--1.8mm

3. Mesh: 2-200mesh/inch

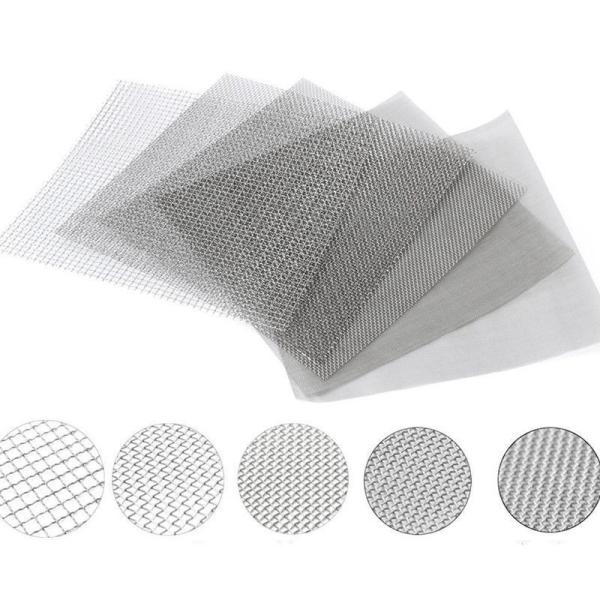

4. Weaving Pattern: Plain Weave, Twill Weave, Dutch Weave

5. Compositions tables of Inconel Woven Wire Mesh (inconel600, 601, 625, 800, 825) :

  • Inconel 600 chemical compositions

Inconel600 Ni Cr Fe C Mn Si Cu P S
Content(%) Min 72 14 6
Max 17 10 0.15 1 0.5 0.5 0.015 0.015

  • Inconel 601 chemical compositions

Inconel601 Ni Cr Fe C Mn Si Cu P S
Content(%) Min 58 21 Bal.
Max 63 25 0.1 1.5 0.5 1 0.02 0.015

  • Inconel 625 chemical compositions

Inconel625 Ni Cr Mo Nb Fe Al Ti C Mn Si Co P S
Content(%) Min Bal. 20 8 3.15
Max 23 10 4.15 5 0.4 0.4 0.1 0.5 0.5 1 0.015 0.015

Specification table :
Inconel wire mesh
Mesh/Inch Wire diameter
(mm)		 Aperture
(mm)		 Mesh/Inch Wire diameter
(mm)		 Aperture
(mm)
1 mesh 5.00×5.00 20.40 18 mesh 0.35×0.35 1.06
2 mesh 1.80×1.80 10.90 20 mesh 0.30×0.30 0.97
3 mesh 1.60×1.60 6.87 30 mesh 0.25×0.25 0.60
4 mesh 1.20×1.20 5.15 40 mesh 0.21×0.21 0.43
5 mesh 1.00×1.00 4.08 50 mesh 0.19×0.19 0.32
6 mesh 0.80×0.80 3.43 60 mesh 0.15×0.15 0.27
7 mesh 0.70×0.70 2.93 70 mesh 0.14×0.14 0.22
8 mesh 0.65×0.65 2.53 80 mesh 0.12×0.12 0.20
10 mesh 0.60×0.60 1.94 100 mesh 0.10×0.10 0.154
12 mesh 0.50×0.50 1.62 120 mesh 0.08×0.08 0.132
14 mesh 0.45×0.45 1.36 150 mesh 0.065×0.065 0.104
15 mesh 0.40×0.40 1.29 200 mesh 0.050×0.050 0.077
16 mesh 0.40×0.40 1.19 250 mesh 0.040×0.040 0.062

Weaving style :

100 Mesh Inconel 600 625 Fine Woven Wire Mesh Filter Screens 0.15 - 2mm Aperture

Produce process :

100 Mesh Inconel 600 625 Fine Woven Wire Mesh Filter Screens 0.15 - 2mm Aperture

100 Mesh Inconel 600 625 Fine Woven Wire Mesh Filter Screens 0.15 - 2mm Aperture

Contect Details :

Anping Yoston Metal Wire Mesh Co.,Ltd.

No.56 Yuhua South Road , Anping Hebei China

Tel / Wechat / Whatsapp: +86 15833839680

Email: yoston@foxmail.com

Skype: amyhdff

Attn: Amy
