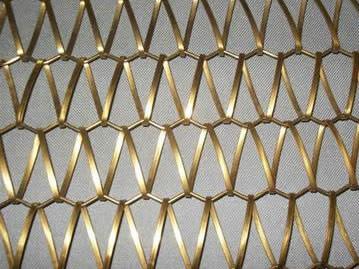

Architectural Stainless Steel Metal Conveyor Belt Wire Mesh for Facade decoration

Conveyor belt mesh is made of high quality stainless steel wire, copper wire, brass wire and other metal materials. It is mainly used for building facade cladding. The belt facade mesh consists of alternating right and left hand spiral wires which are either round or flat wires. They are joined together by a straight or pre-crimped rod with welded edges or knuckled edges. The rods connecting the spiral wires usually have a larger diameter than the spiral wires, adding durability to the structure. The spiral wires fastened on the crimped rod wires can ensure the belt not to creep to either side. Compared with other suppliers' wire mesh, the belts facade mesh we offered have more connector rods and spiral mesh per length of belt. This construction provides a closed mesh surface, which is extremely strong, flat and supportive.

The strong versatile conveyor belt facade wire mesh can be widely used in the architectural industry, for example facade cladding, handrails, balustrade, wall decorations and space dividers.

Specification

• Material: stainless steel wire, copper wire or brass wire.
• Spiral wire type: flat wire or round wire.
• Spiral wire width:
  Flat wire width: 4mm, 5mm, 6mm, 10mm, etc.
  Round wire width: 1.2mm, 2.6mm, etc.
• Spiral pitch: 3mm, 8mm, 12.5mm, 20mm, 24.3mm, 35mm, 36mm, 38mm.
• Rod type: straight wire or pre-crimped wire.
• Rod diameter:
  Straight wire diameter: 2mm, 3.5mm, etc.
  Pre-crimped wire diameter: 1.3mm, 2mm, 2.5mm, 2.6mm, 3mm, 3.5mm, etc.
• Rod pitch: 13mm, 15mm, 22.5mm, 25mm, 30mm 40mm, 60mm, 64.5mm, etc.

Features

• Good resistance to corrosion, wear resistance.
• High temperature resistance.
• Anti-oxidation and anti-fracture characteristics.
• Made of stainless steel wire, durable and long lasting.
• Copper and brass wire for beautiful and attractive surface.
• Reasonable design, easy to install.
• Strong enough, fashionable elements as facade cladding.

Application

Conveyor belt mesh is more and more popular in exterior facade applications. It can be used as facade cladding, for instance exhibition hall, hotels, office buildings. With its high open area and unique appearance, it can catch more attention.

In addition to above use, conveyor belt facade wire mesh can also be used as other decorative and functional metal fabric, space divider, handrail and balustrade, etc.

Conveyor Belt Mesh CBM-01
Material: stainless steel wire 304/316/316L.
Spiral wire width: 4mm.
Spiral pitch: 36mm.
Rod diameter: 2mm.
Rod pitch: 64.5mm.

Conveyor Belt Mesh CBM-02
Material: stainless steel wire 304/316/316L.
Spiral wire width: 6mm.
Spiral pitch: 38mm.
Rod diameter: 3mm.
Rod pitch: 30mm.

Conveyor Belt Mesh CBM-03
Material: stainless steel wire 304/316/316L.
Spiral wire width: 10mm.
Spiral pitch: 12.5mm.
Rod diameter: 2.5mm.
Rod pitch: 40mm.

Conveyor Belt Mesh CBM-04
Material: brass wire.
Spiral wire width: 5mm.
Spiral pitch: 35mm.
Rod diameter: 2.5mm.
Rod pitch: 60mm.

Conveyor Belt Mesh CBM-05
Material: stainless steel wire 304/316/316L.
Spiral wire width: 4mm.
Spiral pitch: 20mm.
Rod diameter: 3mm.
Rod pitch: 40mm.

Conveyor Belt Mesh CBM-06
Material: stainless steel wire 304/316/316L.
Spiral wire width: 1.2mm.
Spiral pitch: 3mm.
Rod diameter: 2mm.
Rod pitch: 15mm.

Conveyor Belt Mesh CBM-07
Material: stainless steel wire 304/316/316L.
Spiral diameter: 2.6mm.
Spiral pitch: 24.3mm.
Rod diameter: 2.6mm.
Rod pitch: 22.5mm.

Conveyor Belt Mesh CBM-08
Material: stainless steel wire 304/316/316L.
Spiral diameter: 1.2mm.
Spiral pitch: 8mm.
Rod diameter: 1.3mm.
Rod pitch: 13mm.

Conveyor Belt Mesh CBM-09
Material: brass.
Spiral diameter: 3mm.
Spiral pitch: 20mm.
Rod diameter: 2.5mm.
Rod pitch: 25mm.

Conveyor Belt Mesh CBM-10
Material: stainless steel wire 304/316/316L.
Spiral diameter: 1.3mm.
Spiral pitch: 5mm.
Rod diameter: 1.3mm.
Rod pitch: 13mm.
