Specifications
Brand Name :
LNF-2d fencing panels
Model Number :
868 and 656 twin wire
Certification :
ISO
Place of Origin :
Europea Design China Made
MOQ :
500 liner meter
Price :
3.88$ per liner meter
Payment Terms :
TT30% deposit balance 70% at sight of finished products
Supply Ability :
10000 liner meters
Delivery Time :
7 work days
Packaging Details :
All metal Pallets
Color :
Available any
Treatment :
Powder Painted
Description

656 Double Wire Mesh Fence and 868 Double Wire Fence

Double wire mesh fence are also named as double rod fence panel or double rod grid fencing. It has refining deign, plain panel and installs convenient.
Double wire mesh fence material:low carbon steel wire and galvanized wire
Double wire mesh fence surface treatment:hot galvanized,plastic spraying or plastic dipping.
Double Wire Panel Fencing Specifications:
Height xWidth
(mm)
Mesh Size
(mm)
Wire Diameter
Post Height
(mm)
Wire Dia(mm)
Wire Dia(mm)
Wire Dia (mm)
630X2500
50X200
8X2+6
6X2+5
6X2+4
1100
830X2500
50X200
8X2+6
6X2+5
6X2+4
1300
1030X2500
50X200
8X2+6
6X2+5
6X2+4
1500
1230X2500
50X200
8X2+6
6X2+5
6X2+4
1700
1430X2500
50X200
8X2+6
6X2+5
6X2+4
1900
1630X2500
50X200
8X2+6
6X2+5
6X2+4
2100
1830X2500
50X200
8X2+6
6X2+5
6X2+4
2400
2030X2500
50X200
8X2+6
6X2+5
6X2+4
2600
2230X2500
50X200
8X2+6
6X2+5
6X2+4
2800
2430X2500
50X200
8X2+6
6X2+5
6X2+4
3000
The Specification of the Double Wire Mesh Fence Post
Post
Size
Thickness
Square post
50*50mm 60*60mm 80*80mm 100*100mm
1.5mm 2mm 2.5mm
Rectangular post
40*60mm 60*80mm 60*120mm
1.5mm 2mm 2.5mm
Peach post
50*70mm 60*90mm 70*100mm
1.5mm 2mm 2.5mm
Double wire mesh fence, also called 2D fence panel, is a sturdy fence constructed by double horizontal wires and a vertical wire welded together. The strong structured double wire fence has galvanized, PVC coated or powder coated surface. It is durable enough to resist corrosion, rust. Moreover, it is usually used in commercial, industrial buildings, school buildings, hospitals, airports and military sites for security requirement.
656 Double Wire Mesh Fence and 868 Double Wire Fence

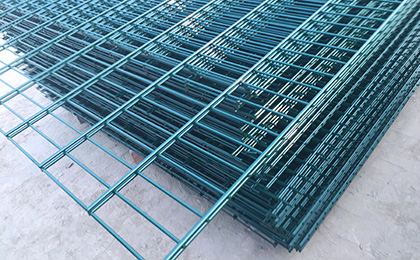

Sturdy structured green double wire mesh fence
Features:
  • The stable and robust structure constructed from double horizontal wires and vertical wires.
  • Hot-dipped galvanized, electro galvanized, PVC coated, powder coated surface treatment makes double wire mesh fence durable and resist corrosion, rust.
  • Beautiful colours are available in green, black, blue, red, white, etc.
  • Various applications for all possible areas.
  • Simple installation.
  • Maintenance-free.
  • Long service life.
Specifications:
  • Material: low carbon steel wire, stainless steel wire, galvanized wire.
  • Surface treatment: hot-dipped galvanized, electro galvanized, PVC coated, polyester coated, powder coated.
  • Wire diameter:
    • vertical wire: 5mm, 6mm.
    • Horizontal wire: 6mm, 8mm.
  • Standard colours: RAL 6005 green, 9005 black, 5010 blue, 3000 red, 9010 white or other colours according to your requirement.
  • Panel height: 63mm - 243mm.
656 Double Wire Fence Specification
Product name
Mesh size (mm)
Wire thickness
Coating
Panel width (m)
Panel height (m)
Panel weight (kg)
Double wire panel
50 × 200
Vertical wire: 1 × 5mm
Galvanized; Polyester Coated
2.5
0.63
9.00
0.83
11.50
1.03
14.20
1.23
16.80
1.43
19.30
Horizontal wire: 2 × 6mm
1.63
21.90
1.83
24.60
2.03
27.10
2.23
29.20
2.43
31.70
868 Double Wire Fence Specification
Product name
Mesh size (mm)
Wire thickness
Coating
Panel width (m)
Panel height (m)
Panel weight (kg)
Double wire panel
50 × 200
Vertical wire: 1 × 6mm
Galvanized; Polyester Coated
2.5
0.63
14.60
0.83
18.80
1.03
23.00
1.23
27.10
1.43
31.30
Horizontal wire: 2 × 8mm
1.63
35.40
1.83
39.50
2.03
43.70
2.23
48.00
2.43
52.00
Post Specification
Type A - RHS Post
Profile (mm)
Thickness (mm)
Surface treatment
Length (m)
Base plate
Rain hat
60 × 40
2.0
Galvanized; polyester powder coated
1.1 - 3.0 or on the basis of the panel height
Available
Plastic or metal
80 × 40
2.5
Type B - peach Post
Profile (mm)
Thickness (mm)
Surface treatment
Length (m)
Base plate
Rain hat
60 × 90
1.2
Galvanized; polyester powder coated
1.1 - 3.0 or on the basis of the panel height
Available
Plastic
70 × 100
1.5
656 Double Wire Mesh Fence and 868 Double Wire Fence
656 Double Wire Mesh Fence and 868 Double Wire Fence
Double wire fence
Double wire fence
656 Double Wire Mesh Fence and 868 Double Wire Fence
656 Double Wire Mesh Fence and 868 Double Wire Fence
Double wire fence
Double wire fence
Available in 8-6-6 and in 6-5-6.
Doublebeam is the most rigid form of welded mesh fencing available. The robust nature of its construction ensures that this twin wire mesh is difficult to deform and capable of resisting attacks of vandalism.
Manufactured in panels from heavy gauge welded mesh with 200 x 50 aperture they are mounted on RHS type posts with the JNC fixing system. Panels can multi-lift to a height of 4.26m.
Finished with a polyester powder coating over a galvanised substrate wire giving a hardwearing and durable presentation and long life expectancy for the fence.
Doublebeam is ideally suited for applications requiring a high degree of resistance to impact and vandalism. This panel system has been proven to withstand the most demanding applications and is particularly suited to sports enclosure applications. Medium to High security where strength and maximum rigidity is required.
We can also offer a 45 degree cranked
High anti corrosion
Using high quality iron rod as raw material, the welded panel, after galvanization, powders primer, and powders top coating, it can resist the corrosive and ultraviolet radiation very strongly.
656 Double Wire Mesh Fence and 868 Double Wire Fence
Applications:
Double wire mesh panels have a wide range of applications. They can be used in
  • School
  • Playground
  • Parks
  • Sports field
  • Stadium
  • Warehouse
  • Workshops
  • Public buildings
  • Industrial building
  • Airport and military sites
  • Other high-security sites

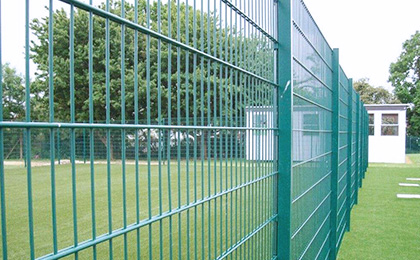

Sturdy powder coated double wire fence for public road protection Green 2D fence panel is used for sports field to protect football going out of the fence and ensure people's security outside the panel
