Specifications
Brand Name :
LNF-2d fencing panels
Model Number :
868 and 656 twin wire
Certification :
ISO
Place of Origin :
Europea Design China Made
MOQ :
500 liner meter
Price :
3.88$ per liner meter
Payment Terms :
TT30% deposit balance 70% at sight of finished products
Supply Ability :
10000 liner meters
Packaging Details :
All metal Pallets
Delivery Time :
7 work days
Mesh :
50mm x 200mm
Diameter :
656mm ,868mm
Treatment :
HDG ,powder Coating
Type :
Weld
Color :
RAL 6005 etc
Description

(manufacturer) Powder Coated Twin Wire Welded Mesh /Double Wire Mesh Fence Panels

Double wire mesh fence also called twin wire mesh fence, it is extremely rigid mesh fence system with a flat appearance, double horizontal wire 5mm or 6mm welded to 66mm, mm, vertical wire so often referred to as 656 fences and 868 mesh fence .T he double wire mesh fence often used as a premier fence for a school playground ,industry fencing where the conditions a rather strong mesh system is Indispensable.T he double wire mesh fence take high quality low carbon steel wire as raw materials compared with the traditional mesh fence it with rather stronger wire diameter 6mm/5mm/6mm and 8mm/6mm/8mm.

Welded Double Mesh Fence

Fence Panel

Wire Diameter

(Common Wire Type)

 8/6/8mm, 6/5/6mm, 5/4/5mm, and material is Q195, Q235
Mesh Size 50*200mm /55*200mm/50*150mm/55*100mm, can be customized
Panel height From 0.4m - 3.03m
Panel Width 2.0m, 2.5m as standard
Surface Treatment

Hot-dipped Galvanized then PVC coating

Electric Galvanized then PVC coating

Hot-dipped Galvanized
Fence Post Dimensions of Type

Rectangle post/Rectangle post/Peach post/Round post, material is Q195-Q235, most common is 60x40mm post:

Post (4 options with different sections)
•60x60mm and 50x50mm SHS steel Post
•40x60mm RHS steel post
•50x70 and 70x100 Peach shape post
•48mm and 60mm Round section post
Surface Treatment

Hot-dipped Galvanized then PVC coating

Hot-dipped Galvanized
Fence Accessories

Clips/Clamps

(Link Post and Panel)

 Metal Clips and Plastic Clips, there are over 6 type as choice
Rainhat or caps for posts Metal caps or plastic caps

Twin Wire Mesh Fence Post Option
Twin wire mesh fence system usually take 40 x 60 x 2.00mm ,50x50x 2.00mm ,60x60x2.00mm post and
for heavy duty 868 twin wire mesh fence for stand heavier weight, we often recommend customer to take
80x60x2.5mm, 80x80x2.5mm,120*60*3mm post to stand premier heavy works.All of list size post required the fastener system for secure mesh fence panel together with a fence post, it generates so much
Works when customer install fence in local, so the new style post is peach size post which the post size is
50 x 70 and 70 x 100mm the special mesh fence post required nothing for fasteners such as bolts, nuts, clamps, bar etc its called peach post.
Fastener System and Accessories
Square and rectangular Post: Required Clamp Bar Bolts Nuts or Clips Bolts Nuts and Post Cap
Peach Post: Required nothing
Surface Treatment of Double Wire Mesh Fence
Double wire fence surface treatment available galvanized with PVC powder coating and galvanized with PVC powder painting the Galvanized level often regard as Electro Galvanized and Hot Dipped Galvanized
The electro galvanized level 20gram/square meter and hot dipped galvanized double mesh fence zinc level
Is 60gram-600gram/square meter .
Specification of Twin Wire Mesh Fence
Double wire mesh fence has a rather wider range height so at the daily using the standard mesh fence can stand almost all circumstance.
Height X Length(mm) Mesh Opening(mm) Dia(mm) Dia(mm) Fence Length (mm)
630x2500 50x200 8x2+6 6x2+5 1100mm
830x2500 50x200 8x2+6 6x2+5 1300mm
1030x2500 50x200 8x2+6 6x2+5 1500mm
1230x2500 50x200 8x2+6 6x2+5 1700mm
1430x2500 50x200 8x2+6 6x2+5 1900mm
1530x2500 50x200 8x2+6 6x2+5 2000mm
1630x2500 50x200 8x2+6 6x2+5 2100mm
1730x2500 50x200 8x2+6 6x2+5 2200mm
1830x2500 50x200 8x2+6 6x2+5 2300mm
2030x2500 50x200 8x2+6 6x2+5 2500mm
2230x2500 50x200 8x2+6 6x2+5 2700mm
2430x2500 50x200 8x2+6 6x2+5 2900mm or 3000mm

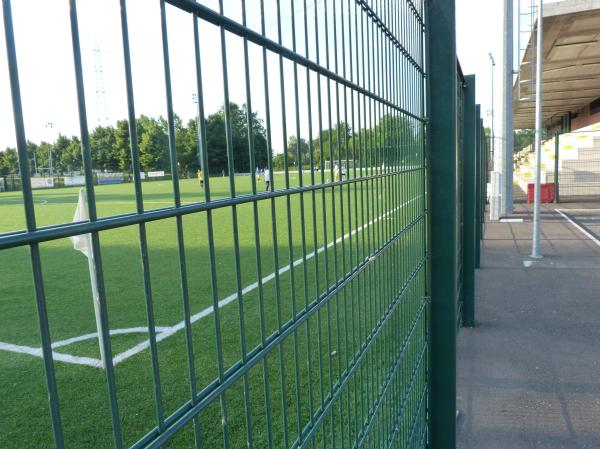

The double wire fence is a rigid yet unobtrusive mesh fencing system. It is often used as a perimeter fence for industrial or commercial premises and sports pitches where a strong mesh fencing system is required.
The inherent strength within the panels is gained by sandwiching a 6mm vertical wire between two 8mm horizontal wires. This ensures that the heavy-duty panels offer extremely high resistance to vandalism. 868 panels are then fixed to strong rolled hollow section posts using stainless steel security fixings and a full-length clamp strip. 868 is available 1030, 2030, 2430, 3060, 4060 and 4870mm high and a full range of single, double and sliding gates are available to match.
Posts: Set at 2520mm nominal centres.
Up to 2430mm high - 60 x 40 RHS
3060mm high - 80 x 40 RHS
4060mm high - 100 x 50 RHS
4870mm high - 120 x 60 RHS
Fixings: Posts nutserted to receive stainless steel
fixings and full length clamp strip.
Finish: Hot Dip Galvanised to BS EN ISO 1461 or
Galvanised & Polyester Polyester Powder Coated.
