Flat Steel Plate Design Crowd Control Barriers 1100mm x 2200mm OD 25mm x 2.0mm upright OD 19x1.2mm spacing 200mm
Flat Steel Plate Design Crowd Control Barriers 1100mm x 2200mm OD 25mm x 2.0mm upright OD 19x1.2mm spacing 200mm
Flat Steel Plate Design Crowd Control Barriers 1100mm x 2200mm OD 25mm x 2.0mm upright OD 19x1.2mm spacing 200mm
Flat Steel Plate Design Crowd Control Barriers 1100mm x 2200mm OD 25mm x 2.0mm upright OD 19x1.2mm spacing 200mm
Flat Steel Plate Design Crowd Control Barriers 1100mm x 2200mm OD 25mm x 2.0mm upright OD 19x1.2mm spacing 200mm
Flat Steel Plate Design Crowd Control Barriers 1100mm x 2200mm OD 25mm x 2.0mm upright OD 19x1.2mm spacing 200mm
Specifications
Brand Name :
LNF-Crowd Control Barriers
Model Number :
1090mm Height*2500mm Width Crowd Control Barriers
Certification :
ISO
Place of Origin :
American ,Australia ,Canadan
MOQ :
500 liner meter
Price :
18.88$ per set
Payment Terms :
TT30% deposit balance 70% at sight of finished products
Supply Ability :
10000 liner meters
Delivery Time :
7 work days
Packaging Details :
All metal Pallets
Materials :
Q235 steel pipes
Color :
Any Ral color
Type :
Weld Steel
Warranty :
3-25 years depand on treatment
Pipes :
OD 25 mm ,32mm ,38mm
Customized :
Available
Treatment :
Hot Dipped Galvanized Or Powder Painted
Market :
World Wide
Description

Flat Steel Plate Design Crowd Control Barriers 1100mm x 2200mm OD 25mm x 2.0mm upright OD 19x1.2mm spacing 200mm

2.2 M × 1.1 M CROWD CONTROL BARRIERS

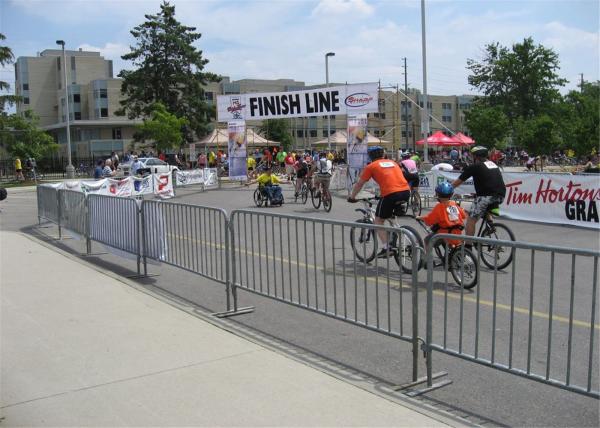

Crowd control barriers, effective and necessary crowd control management system in almost all private and public events, including concerts, demonstration, bicycle race and construction sites. It can keep order pedestrian and vehicle passing and prevent tripping and stampede accidents.
The crowd control barriers are available in various specifications, you can choose them according to your requirements.
Flat Steel Plate Design Crowd Control Barriers 1100mm x 2200mm OD 25mm x 2.0mm upright OD 19x1.2mm spacing 200mm

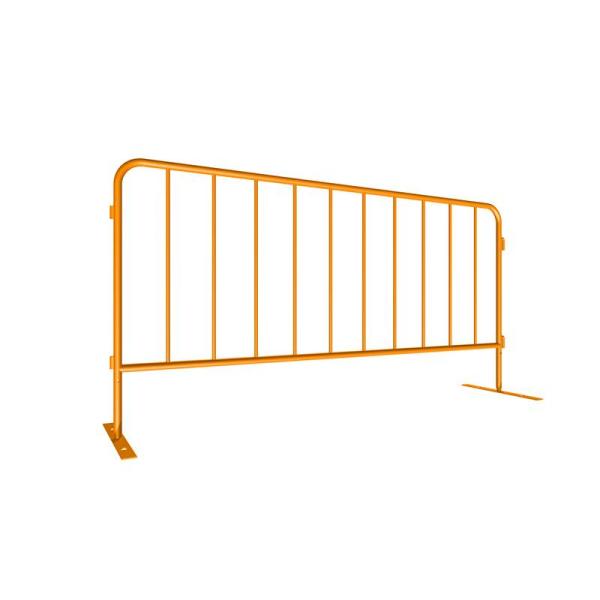

NCCB-01: 10 uprights 2.2 m × 1.1 m crowd control barrier.
  • Length: 2.2 m
  • Height: 1.1 m
  • Main frame: 25 mm OD × 1.5 mm thickness
  • Grill: 10 uprights of 16 mm OD × 1.2 mm thickness.
  • Upright spacing: 20 mm.
  • Feet: flat/bridge/fixed
Flat Steel Plate Design Crowd Control Barriers 1100mm x 2200mm OD 25mm x 2.0mm upright OD 19x1.2mm spacing 200mm
NCCB-02: 18 uprights 2.2 m × 1.1 m crowd control barrier.
  • Length: 2.2 m
  • Height: 1.1 m
  • Main frame: 32 mm OD × 1.5 mm thickness
  • Grill: 18 uprights of 16 mm OD × 1.2 mm thickness.
  • Upright spacing: 11 mm.
  • Feet: flat/bridge/fixed
CROWD CONTROL BARRIER PANELS

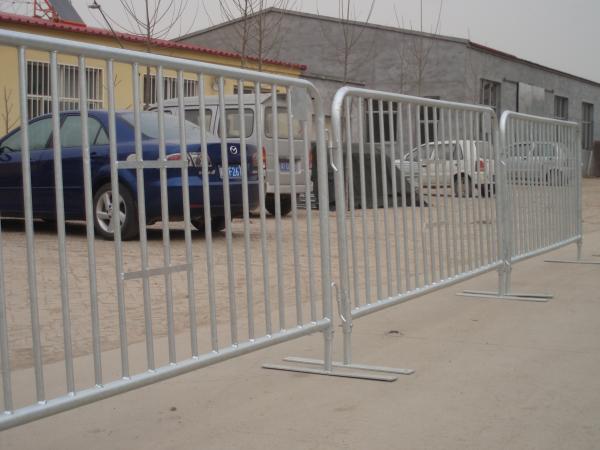

The crowd control barrier panels are constructed of outer frames, infill uprights and interlocking system. The outer frame and infill uprights are constructed of steel pipes and the interlocking system are manufactured from steel plates and steel rods.
  • Steel pipe material for high strength and impact resistance.
  • Inserted uprights before welding for durable and firm structure.
  • 360° full hand welding for optimum strength.
  • Hot dipped galvanised or powder coated for outdoors.
  • Hook and loop interlocking system prevent barrier from being damaged from the middle.
  • Flexible structure to form different passage way for different use.
Flat Steel Plate Design Crowd Control Barriers 1100mm x 2200mm OD 25mm x 2.0mm upright OD 19x1.2mm spacing 200mm
Flat Steel Plate Design Crowd Control Barriers 1100mm x 2200mm OD 25mm x 2.0mm upright OD 19x1.2mm spacing 200mm
Flat Steel Plate Design Crowd Control Barriers 1100mm x 2200mm OD 25mm x 2.0mm upright OD 19x1.2mm spacing 200mm
Flat Steel Plate Design Crowd Control Barriers 1100mm x 2200mm OD 25mm x 2.0mm upright OD 19x1.2mm spacing 200mm
CROWD CONTROL BARRIER FEET
The crowd control barriers are available in various feet for different applications
  • Fixed feet.
  • Removable flat T feet.
  • Removable bridge Y feet.
  • Removable wheel feet.
Flat Steel Plate Design Crowd Control Barriers 1100mm x 2200mm OD 25mm x 2.0mm upright OD 19x1.2mm spacing 200mm
Flat Steel Plate Design Crowd Control Barriers 1100mm x 2200mm OD 25mm x 2.0mm upright OD 19x1.2mm spacing 200mm
Flat Steel Plate Design Crowd Control Barriers 1100mm x 2200mm OD 25mm x 2.0mm upright OD 19x1.2mm spacing 200mm
Flat Steel Plate Design Crowd Control Barriers 1100mm x 2200mm OD 25mm x 2.0mm upright OD 19x1.2mm spacing 200mm
  • Fixed or removable feet options.
  • Bolt-down design optional for higher stability.
  • Different sizes of bridge feet for easy installation on corners.
  • Considerate flat design for reducing tripping hazards.
  • Removable feet for easy stacking and storing.
  • Fastening pins & hardware to prevent being stolen.
  • Wheel design for smooth and easy operation or can be used as barrier gate.
Flat Steel Plate Design Crowd Control Barriers 1100mm x 2200mm OD 25mm x 2.0mm upright OD 19x1.2mm spacing 200mm
Flat Steel Plate Design Crowd Control Barriers 1100mm x 2200mm OD 25mm x 2.0mm upright OD 19x1.2mm spacing 200mm
Flat Steel Plate Design Crowd Control Barriers 1100mm x 2200mm OD 25mm x 2.0mm upright OD 19x1.2mm spacing 200mm
Flat Steel Plate Design Crowd Control Barriers 1100mm x 2200mm OD 25mm x 2.0mm upright OD 19x1.2mm spacing 200mm
APPLICATIONS
  • Construction site.
  • Demolition site.
  • Public traffic.
  • scenic area.
  • Bike rack barricades
  • Sport fields.
  • Concert.
  • Demonstration.
Flat Steel Plate Design Crowd Control Barriers 1100mm x 2200mm OD 25mm x 2.0mm upright OD 19x1.2mm spacing 200mm
Flat Steel Plate Design Crowd Control Barriers 1100mm x 2200mm OD 25mm x 2.0mm upright OD 19x1.2mm spacing 200mm
Flat Steel Plate Design Crowd Control Barriers 1100mm x 2200mm OD 25mm x 2.0mm upright OD 19x1.2mm spacing 200mm
Flat Steel Plate Design Crowd Control Barriers 1100mm x 2200mm OD 25mm x 2.0mm upright OD 19x1.2mm spacing 200mm
Flat Steel Plate Design Crowd Control Barriers 1100mm x 2200mm OD 25mm x 2.0mm upright OD 19x1.2mm spacing 200mm
Flat Steel Plate Design Crowd Control Barriers 1100mm x 2200mm OD 25mm x 2.0mm upright OD 19x1.2mm spacing 200mm
Overall Length: 2600mm(2550when interlocked) or as stipulated
Overall Height: 1100mm or as stipulated
Weight: 19.5kgs ± 1kgs
Material: Steel tube.

Main Frame:
Outside perimeter (mainframe) is made of 38mm diameter galvanized steel tubing, minimum 1.6mm thickness(after coating). The outer frame is a single length of tubing without welds or deformation. The pipe is bent at right angles with a minimum of smooth deformation. Horizontal and vertical bars are at right angles to the overall frame.

Grill: 21 equally-spaced bars inside vertical members, made of 13mm out diameter galvanized steel tubing, minimum 1.2mm(after coating),21 interior bars are 98mm apart, O.D. to O.D.

Locking: Male-Female interlocking ends. Units join and unlock at one position (30 degrees). The male interlocking device is a minimum 16mm diameter rod welded through mainframe at both ends. Male/Female connections have enough clearance to allow for uneven ground, a minimum of 13mm on top and bottom when connected.

Feet: flat foot detachable

Finish: Entire panel is hot-dip zinc-galvanized after welding (not spraying, not use galvanized tube welding then spraying since on welded points). Every barrier is filed after galvanizing so that burrs from galvanizing are filed smooth and there are no sharp points.

Another finish:
powder-coated black, powder-coated orange or another colour.

Warranty: above 10-year warranty against hot dip galvanised finishing, above 3 years for powder coating or vinyl coated finishing.
Flat Steel Plate Design Crowd Control Barriers 1100mm x 2200mm OD 25mm x 2.0mm upright OD 19x1.2mm spacing 200mm
Flat Steel Plate Design Crowd Control Barriers 1100mm x 2200mm OD 25mm x 2.0mm upright OD 19x1.2mm spacing 200mm
Flat Steel Plate Design Crowd Control Barriers 1100mm x 2200mm OD 25mm x 2.0mm upright OD 19x1.2mm spacing 200mm
Hot dip galvanized
vinyl coated in orange colour
vinyl coated in black colour
