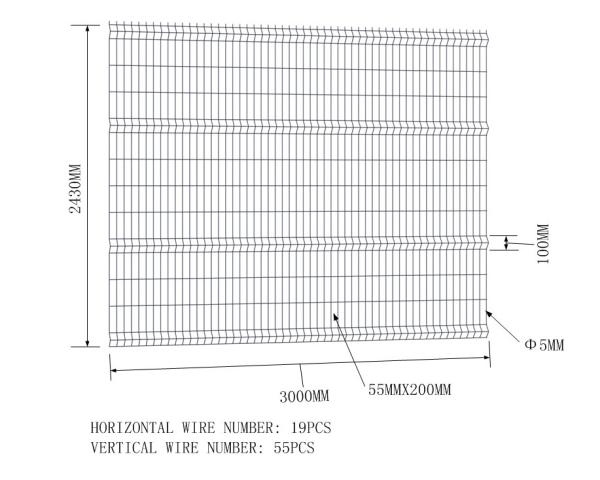

Weld Wire Mesh Fence 2430mm x 3000mm V fold Available hot dipped galvanized powder coated Mesh 50mm x 200mm Dia :5.00mm
Weld Wire Mesh Fence 2430mm x 3000mm V fold Available hot dipped galvanized powder coated Mesh 50mm x 200mm Dia :5.00mm
Weld Wire Mesh Fence 2430mm x 3000mm V fold Available hot dipped galvanized powder coated Mesh 50mm x 200mm Dia :5.00mm
Weld Wire Mesh Fence 2430mm x 3000mm V fold Available hot dipped galvanized powder coated Mesh 50mm x 200mm Dia :5.00mm
Weld Wire Mesh Fence 2430mm x 3000mm V fold Available hot dipped galvanized powder coated Mesh 50mm x 200mm Dia :5.00mm
Weld Wire Mesh Fence 2430mm x 3000mm V fold Available hot dipped galvanized powder coated Mesh 50mm x 200mm Dia :5.00mm
Weld Wire Mesh Fence 2430mm x 3000mm V fold Available hot dipped galvanized powder coated Mesh 50mm x 200mm Dia :5.00mm
Weld Wire Mesh Fence 2430mm x 3000mm V fold Available hot dipped galvanized powder coated Mesh 50mm x 200mm Dia :5.00mm
Weld Wire Mesh Fence 2430mm x 3000mm V fold Available hot dipped galvanized powder coated Mesh 50mm x 200mm Dia :5.00mm
Weld Wire Mesh Fence 2430mm x 3000mm V fold Available hot dipped galvanized powder coated Mesh 50mm x 200mm Dia :5.00mm
Specifications
Brand Name :
LNF-3d fence panels
Model Number :
1030mm/1530mm/1830mm/2030mm/2230mm height
Certification :
ISO
Place of Origin :
American Design China Made
MOQ :
500 liner meter
Price :
4.00$/liner meter
Payment Terms :
TT30% deposit balance 70% at sight of finished products
Supply Ability :
10000 liner meters
Delivery Time :
7 work days
Packaging Details :
All metal Pallets
Description

Weld Wire Mesh Fence 2430mm x 3000mm V fold Available hot dipped galvanized powder coated Mesh 50mm x 200mm Dia: 5.00mm

This kind of panel is welded by 4mm - 6mm (before treatment) high-strength iron wire, assembled with strength posts. The unique pattern design on the top enhance the anti-climb capacity, perfectly combined with security functions and aesthetic design. There are various optional parts for higher security needs, can be used in many areas.
Wire mesh Fence is one of the most important ways to keep your home safe and secured from all forms of attacks by armed robbers and so on. It is very affordable and inexpensive that is why we see most homes using wire fencing for their walls and also very durable and easy to make and fix on fences.
Installation: Directly fill in the embedded installation on the wall or cement surface, and install the safety accessories through the flange. Elbowand barbed wire can be added to the fence, according to the safety protection requirements.
* Material: Low carbon steel wire & Hot dipped galvanized wire
* Processing mode: welded
* Surface treatment:
I. Black wire welded mesh +electro galvanized+ polyester powder & PVC coated;
II. Galvanized welded mesh + polyester powder & PVC coated;
III. Hot dipped galvanized welded mesh + polyester powder & PVC coated.
Panel Height
Panel Length
Wire dia
Mesh size
Folds No.
H=1.03m
L=2.5m
4.0mm
50*200mm
2
H=1.23m
L=2.5m
4.0mm
50*200mm
2
H=1.53m
L=2.5m
4.0mm
50*200mm
3
H=1.73m
L=2.5m
4.0mm
50*200mm
3
H=2.03m
L=2.5m
4.0mm
50*200mm
4
Color:
RAL6005 Green,RAL7016 Gray, RAL9005 Black, RAL9010 White
Using high quality of the steel as raw material. The welded wire fence panel, after galvanization, powder/PVC coating; it can resist the corrosive and ultraviolet radiation very strongly. The thickness of powder coating is 100 - 120 microns usually. The choose wire diameters are 3.0 - 7.0mm. It obtains high strong powders to resist the construction.
Fence Panels:
1>it has rubber mat at the bottom of the pallet to avoid the pallet destroyed the panels
2>it has 4 metal corners to keep the pallet more strong.
3>it has metal plate under the plastic bandage to reduce the apressure of fence panels.
4>it has wooden plate at the top of fence panel which can protect the fence panels avoid being crushed by other pallets.
Fence Post:
Each fence post is covered by cap (save your installing time and cost of labor) then with plastic film, then metal pallet.
Accessories:
Clips and screws are packed by sets, plastic film + carton box.
1.Material:Low carbon steel wire and other materials
2.Process: Made through weaving, punching and welding.
3.Application:Fencing and protection for road, railway, airport, residence district, seaport, garden, feeding and husbandry
4.Product Features:Corrosion resistant, age resistant, sunshine proof, weather proof.
5.Corrosion Form:Electric galvanized, Hot-dipped galvanized after welded, Powder coated, PVC coated
Specification of Decorative Powder Coated Arched Top Metal Fence
Wire Diameter
Mesh Size
Panel Height
Panel Width
Post Height
Post Type
Fittings
4mm, 5mm
50x200mm
60x150mm
50x100mm
630mm
2000mm
2200mm
2500mm
3000mm
1000mm
Becaclip Post
Non clamps,
Rain cap
830mm
1200mm
1230mm
1400mm
Square Post
Steel clamp,
Plastic clamp,
Rain cap
1530mm
2000mm
1830mm
2400mm
2430mm
2600mm
Round Post
Steel clamp,
Plastic clamp,
Rain cap
Features of Decorative Powder Coated Arched Top Metal Fence
1> Vandal resistant, Low maintenance
2> Strong and reliable security
3> Simple structure, Attractive appearance
4> Easy installation, Convenient transport
Application of Decorative Powder Coated Arched Top Metal Fence
1>Public building fence
2>Private place fence, Where visibility is desirable
3>Residential perimeter fence
4>In Parks, Zoos and nature reserves
3. Features:
1. Material: Low-carbon steel wire Q195 (black wire, galvanized wire)
2. Wire Diameter: 4/5/4; 5/6/5; 6/5/6; 8/6/8 mm as standard
3. Surface Treatment: Electro-galvanized, Hot-dipped galvanized, PVC coated, Power coated
4. Material: high-quality low carbon steel wire Q235/Q195/S235J2, galvanized wire, plastic coated wire
5. Process: welding--making folds---galvanized/hot-dipped---powder coated---packaging
6. Colors: green RAL6005,red,yellow,whiteRAL9010 and so on.Dark Green RAL6005 is most popular
4. Applications:
1. Public building fence
2. Private place fence, Where visibility is desirable
3. Residential perimeter fence
4. In Parks, Zoos and nature reserves
5. Advantages:
1. Vandal resistant, Low maintenance
2. Strong and reliable security
3. Simple structure, Attractive appearance
4. Easy installation, Convenient transport

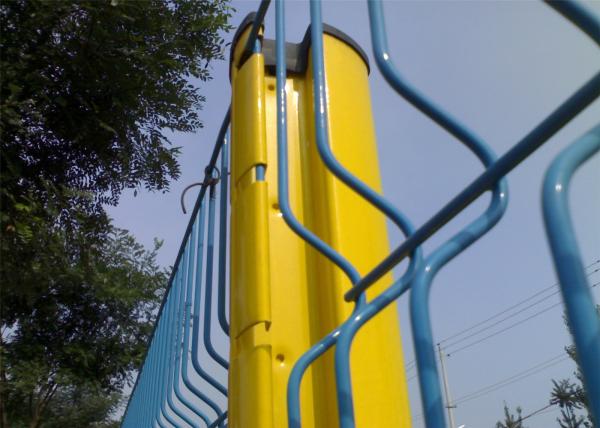

6. Product Show:
Weld Wire Mesh Fence 2430mm x 3000mm V fold Available hot dipped galvanized powder coated Mesh 50mm x 200mm Dia :5.00mm
Weld Wire Mesh Fence 2430mm x 3000mm V fold Available hot dipped galvanized powder coated Mesh 50mm x 200mm Dia :5.00mm
