Specifications
Brand Name :
LNF-temporary chain link fence
Model Number :
6' 8' height width 9.5' 10' 12'
Certification :
ASTM392 ASTM396
Place of Origin :
American Design China Made
MOQ :
500 liner meter
Price :
9.88$ per liner meter
Payment Terms :
TT30% deposit balance 70% at sight of finished products
Supply Ability :
10000 liner meters
Delivery Time :
7 work days
Packaging Details :
All metal Pallets
Materials :
HDG pipes
Mesh :
60mm x 60mm (2-3/8" )
Design :
American
Name :
Chain mesh temp fence
Size :
6ft x 8ft ,6ft x 10ft ,6ft x 12ft ,6ft x 14ft ,8ft x10ft etc
Diameter :
11.5 ga ,12.5ga etc
Description

6ft x 10ft chain mesh temporary fencing panels, construction fence panels frame OD 42mm and Mesh 60mm x 60mm x 2.7mm Dia

Chain link meshes temporary fence is also known as temporary fencing, temporary fence panels, portable fence, easy fence, and removable fence.
Features: Chain link mesh temporary fence can be quickly and easily installed without the need to disturb the surface area by digging holes or laying foundations.
Materials: low carbon steel wire, high-quality mild steel wire, Al-Mg alloy wire.
Surface finishing: Hot-dipped galvanized, galvanized
Temporary Chain Link Fence /Construction Fence Panels Spec
Tubing
1¼"(32mm) 1⅜"(35mm) 1½"(38mm) 1⅗"(40mm) 1⅝"(42mm) 1⅞"(48mm)and so on
Thickness of Tubing
16GA/ 1.6mm thick as a standard or customized owned size
Chain mesh aperture
2"x2"/(50mm x 50mm) 2¼"x2¼"(57mmx57mm) 2⅜"x2⅜"(60mmx60mm) 2½"x2½"(63mmx63mm)
Height
4ft/1220mm 6ft/1820mm 8ft/2420mm
Width
12ft /3650mm was wide acceptance by market also 8ft 9ft 10ft 14ft
Panels Size
6ft x 12ft ,8ft x 12ft, 4ft x 12ft and so on
Diameter /Gauge
10ga/3.2mm ,10.5ga/3.00mm ,11ga/2.90mm,11.5ga/2.75mm,12ga /2.60mm 12.5ga/2.5mm 13ga/2.3m
Base Optional 1
36" length x 30" width x 8"Height /914mmx762mmx203mm
Base Optional 2
36" length x 16" width x 8" Height /914mmx406mmx203mm
Base Optional 3
30" length x 18" width x 8" Height /762mm x460mm x203mm
Standard
ASTM A392-06
Steel
Galvanized Steel Construction
Finish
Corrosion-Resistant Zinc Coating
Transport Packing
Metal pallet Wrapped with Plastic
HDG zinc thickness
14 microns 100gram/SQM 28 microns 200 gram/SQM 42 microns 300 gram/SQM and 84 microns 600 gram/SQM

Chain link meshes temporary fence product details:
Chain link meshes temporary fence consists of four parts, namely the panel, the pipes, the clamps, and the bases.
The panel of chain link mesh temporary fence is usually 1.8-2.4m high.

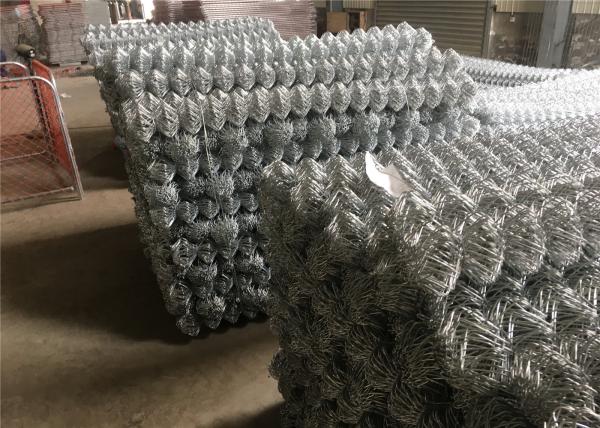

the weaved chain link mesh temporary fence panels and the chain link mesh roll:


The clamps of the chain link mesh temporary fence:
to connect two panels by locking the round posts.

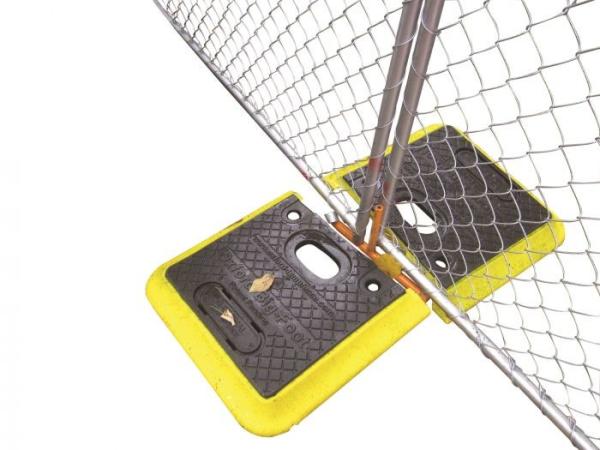

different kinds of bases of chain link mesh temporary fence:
Packaging & Shipping
Chain link mesh temporary fence panels: on a metal pallet ( there is a carton board around the panel to reduce the crash);
the bases: on a metal pallet ( there is the plastic film on around plastic feet to keep the feet clean)
the clamps: in small cartons.
Besides the chain link meshes temporary fence, we also offer other kinds of the temporary fence:
Our Services
1.samples are available;
2. within 15 days after receiving 30% deposit;
3.with fastest speed of delivery;
4.track all the way to ensure product safety;
5.high-quality after-sale service.
6.24 hours of online service.
6ft x 10ft chain mesh temporary fencing panels ,construction fence panels frame OD 42mm and Mesh 60mm x 60mm x 2.7mm dia6ft x 10ft chain mesh temporary fencing panels ,construction fence panels frame OD 42mm and Mesh 60mm x 60mm x 2.7mm dia
