Specifications
Brand Name :
LNF-Construction Fencing
Model Number :
4'6'8' Height and 2100mm height etc
Certification :
ISO
Place of Origin :
American ,Australia ,Canadan
MOQ :
500 liner meter
Price :
8.88$ per liner meter
Payment Terms :
TT30% deposit balance 70% at sight of finished products
Supply Ability :
10000 liner meters
Delivery Time :
7 work days
Packaging Details :
All metal Pallets
Materials :
HDG pipes
Mesh :
60mm x 60mm (2-3/8" )
Design :
American
Name :
Chain mesh temp fence
Size :
6ft x 8ft ,6ft x 10ft ,6ft x 12ft ,6ft x 14ft ,8ft x10ft etc
Diameter :
11.5 ga ,12.5ga etc
Description

chain mesh temporary construction fence 8ft x 12ft mesh 2-3/8 inch mesh opening x 11.5 gauge wire

Constructed to meet all required standards, these galvanised materials possess both long life and incredible utility. You can move them where you need them, over and over again. They even include a chain link fence infill designed to discourage climbing. Each panel stands 6ft meters high, tall enough to offer crowd control at public events and to discourage trespassing.

Temporary Chain Link Fence /Construction Fence Panels Spec

Tubing

1¼"(32mm) 1⅜"(35mm) 1½"(38mm) 1⅗"(40mm) 1⅝"(42mm) 1⅞"(48mm)and so on

Thickness of Tubing

16GA/ 1.6mm thick as a standard or customized owned size

Chain mesh aperture

2"x2"/(50mm x 50mm) 2¼"x2¼"(57mmx57mm) 2⅜"x2⅜"(60mmx60mm) 2½"x2½"(63mmx63mm)

Height

4ft/1220mm 6ft/1820mm 8ft/2420mm

Width

12ft /3650mm was wide acceptance by market also 8ft 9ft 10ft 14ft

Panels Size

6ft x 12ft ,8ft x 12ft, 4ft x 12ft and so on

Diameter /Gauge

10ga/3.2mm ,10.5ga/3.00mm ,11ga/2.90mm,11.5ga/2.75mm,12ga /2.60mm 12.5ga/2.5mm 13ga/2.3m

Base Optional 1

36" length x 30" width x 8"Height /914mmx762mmx203mm

Base Optional 2

36" length x 16" width x 8" Height /914mmx406mmx203mm

Base Optional 3

30" length x 18" width x 8" Height /762mm x460mm x203mm

Standard

ASTM A392-06

Steel

Galvanized Steel Construction

Finish

Corrosion-Resistant Zinc Coating

Transport Packing

Metal pallet Wrapped with Plastic

HDG zinc thickness

14 microns 100gram/SQM 28 microns 200 gram/SQM 42 microns 300 gram/SQM and 84 microns 600 gram/SQM

The metal clamp of Temporary Fence Panel:

The metal clamps are made from hot dipped galvanised steel ensure along life which makes them the perfect way to secure the top of the fencing panels together.

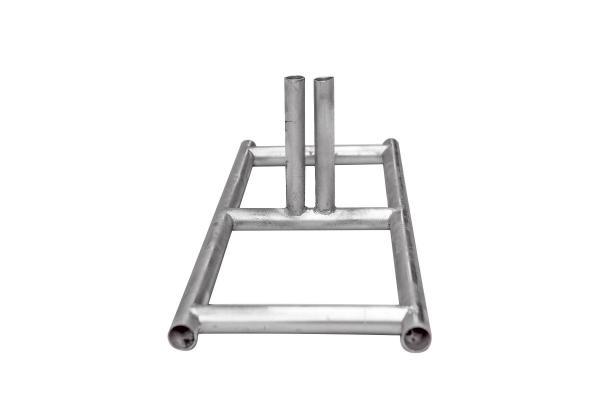

The metal base of the Temporary Fence Panel:

The metal base is made of hot dipped galvanized pipes, the T parts of the base are inserted into the base part and the worker will do both weldings on both top and bottom part to make sure the T parts are strongly welded into the base, which makes the base more strong.

The shade cloth of Temporary Fence Panel:

The shade cloths are made of PP or PE materials, which can be customized into different sizes and colours. We have large cloth in stock every year.

chain mesh temporary construction fence 8ft x 12ft mesh 2-3/8 inch mesh opening x 11.5 gauge wirechain mesh temporary construction fence 8ft x 12ft mesh 2-3/8 inch mesh opening x 11.5 gauge wirechain mesh temporary construction fence 8ft x 12ft mesh 2-3/8 inch mesh opening x 11.5 gauge wire
