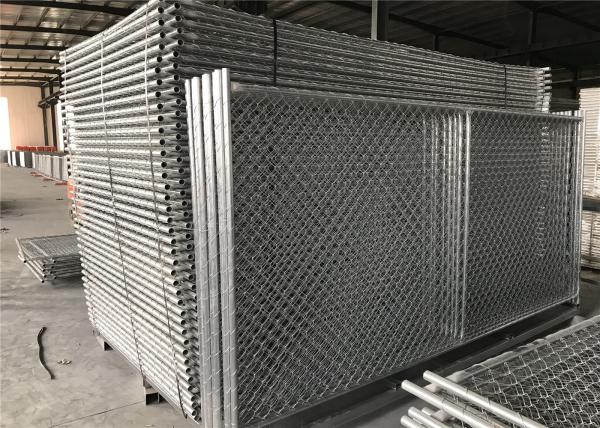

6'X12' temporary fence panels for construction site tube 1⅝(42mm) chain link fence panels tube
6'X12' temporary fence panels for construction site tube 1⅝(42mm) chain link fence panels tube
6'X12' temporary fence panels for construction site tube 1⅝(42mm) chain link fence panels tube
6'X12' temporary fence panels for construction site tube 1⅝(42mm) chain link fence panels tube
6'X12' temporary fence panels for construction site tube 1⅝(42mm) chain link fence panels tube
6'X12' temporary fence panels for construction site tube 1⅝(42mm) chain link fence panels tube
6'X12' temporary fence panels for construction site tube 1⅝(42mm) chain link fence panels tube
6'X12' temporary fence panels for construction site tube 1⅝(42mm) chain link fence panels tube
Specifications
Brand Name :
LNF-Chain link Fence Panels
Model Number :
4'6'8' Height
Certification :
ASTM
Place of Origin :
American Design China Made
MOQ :
1700 liner ft
Price :
4.00$/liner ft
Payment Terms :
TT30% deposit balance 70% at sight of finished products
Supply Ability :
10000 liner ft
Delivery Time :
7 work days
Packaging Details :
All metal Pallets
Materials :
Q235 Steel Pipes and Wire
Mesh Opening :
2"x2"/(50mm x 50mm) 2¼"x2¼"(57mmx57mm) 2⅜"x2⅜"(60mmx60mm) 2½"x2½"(63mmx63mm)
Diameter :
10ga/3.2mm ,10.5ga/3.00mm ,11ga/2.90mm,11.5ga/2.75mm,12ga /2.60mm 12.5ga/2.5mm 13ga/2.3m
Type :
chain mesh
Color :
Silver and HDG steel
Warranty :
5-15 years depand on treatment
Customized :
Available
Size :
6ft x 12ft ,8ft x 12ft, 4ft x 12ft and so on
Feet :
36" length x 30" width x 8"Height /914mmx762mmx203mm
Accessoires :
Top Couper
Description
6'X12' temporary fence panels for construction site tube 1⅝"(42mm) chain link fence panels tube
Construction Chain Link Fence Panels Tube Optional
Temporary chain link fence, also known as mobile fence, temporary isolation fence, mobile security fence, mobile fence. The main use of removable components will be the main guardrail with the base or guard column for standard connection, such as the specific needs of the time can be easily removed, for mobile installation.They are popular in Australia, American, England, Africa market.
Specifications
American temporary fence panels general specifications.
Wire Diameter
2.0mm-4.0mm
Mesh Opening
50x50mm, 60x60mm, 80x80mm, 100x100mm
Frame Post
26mm, 32mm, 38mm, 42mm, 48mm O.D
Panel Height
1800mm, 2000mm, 2100mm
Panel Length
2000mm, 2100mm, 2300mm, 2400mm, 2500mm
Surface Treatment
Pre-galvanized wire and tube welded;
PVC or PE coated after welded
  • 1¼"(32mm)
  • 1⅜"(35mm)
  • 1½"(38mm)
  • 1⅗"(40mm)
  • 1⅝"(42mm)
  • 1⅞"(48mm)
Temporary Chain Link Fence /Construction Fence Panels Spec
Tubing
1¼"(32mm) 1⅜"(35mm) 1½"(38mm) 1⅗"(40mm) 1⅝"(42mm) 1⅞"(48mm)and so on
Thickness of Tubing
14ga/2.00mm 14.5ga/1.90mm 15ga/1.80mm 15.5ga/1.70mm 16ga /1.6mm 16.5ga/1.50mm 17ga1.42mm 18ga 1.22mm
Chain mesh aperture
2"x2"/(50mm x 50mm) 2¼"x2¼"(57mmx57mm) 2⅜"x2⅜"(60mmx60mm) 2½"x2½"(63mmx63mm)
Height
4ft/1220mm 6ft/1820mm 8ft/2420mm
Width
12ft /3650mm was wide acceptance by market also 8ft 9ft 10ft 14ft
Panels Size
6ft x 12ft ,8ft x 12ft, 4ft x 12ft and so on
Diameter /Gauge
10ga/3.2mm ,10.5ga/3.00mm ,11ga/2.90mm,11.5ga/2.75mm,12ga /2.60mm 12.5ga/2.5mm 13ga/2.3m
Base Optional 1
36" length x 30" width x 8"Height /914mmx762mmx203mm
Base Optional 2
36" length x 16" width x 8" Height /914mmx406mmx203mm
Base Optional 3
30" length x 18" width x 8" Height /762mm x460mm x203mm
Standard
ASTM A392-06
Steel
Galvanized Steel Construction
Finish
Corrosion-Resistant Zinc Coating
Transport Packing
Metal pallet Wrapped with Plastic
HDG zinc thickness
14 microns 100gram/SQM 28 microns 200 gram/SQM 42 microns 300 gram/SQM and 84 microns 600 gram/SQM
Construction Chain Link Fence Panels Height*Width
4’/1220mm
6’/1830mm
8’/2430mm
9.5’/2900mm
12’/3650mm
10’/3048mm
14’/4300mm
CUSTOMIZED AVAILABLE
Temporary Chain link Fence Tube optional
· 1¼" /1.250inch/32.00mm
· 16.5ga/1.50m
· 1⅜"/ 1.400inch/35.00mm
· 16ga /1.60mm
· 1”⅗/ 1.600inch/40.00mm
· 15ga/1.80mm
· 1⅝" / 1.625inch/41.20mm
· 14ga/2.00mm
· Cusotmized available
· Cusotmized available
Outer pipes
· Gauge of Pipe
Temporary Fence Chain Link Infill Mesh Aperture and Wire Gauge
·2"x2"/(50mm x 50mm)
2¼"x2¼"(57mmx57mm)
2⅜"x2⅜"(60mmx60mm)
2½"x2½"(63mmx63mm)
10ga/3.2mm ,
10.5ga/3.00mm ,
11ga/2.90mm,
11.5ga/2.75mm,
12ga /2.60mm
12.5ga/2.5mm
13ga/2.3m
Chain Link Mesh Aperture
Wire Gauge
Customized Available
Hot dipped Galvanized To be
1.2 oz/ft2 [366g/m2]
1.8 oz/ft2 [500g/m2]
2.0 oz/ft2 [610g/m2]
