Specifications
Brand Name :
LNF-Chain link Fabric
Model Number :
3"x0.5"x 8ga wire euqal to 12.70mm x 76.20mm x 4.00mm wire
Certification :
ISO
Place of Origin :
Europea Design China Made
MOQ :
500 liner meter
Price :
3.88$ per liner meter
Payment Terms :
TT30% deposit balance 70% at sight of finished products
Supply Ability :
10000 liner meters
Delivery Time :
7 work days
Packaging Details :
All metal Pallets
Materials :
HDG pipes
Mesh :
60mm x 60mm (2-3/8" )
Design :
American
Name :
Chain mesh temp fence
Size :
6ft x 8ft ,6ft x 10ft ,6ft x 12ft ,6ft x 14ft ,8ft x10ft etc
Diameter :
11.5 ga ,12.5ga etc
Description

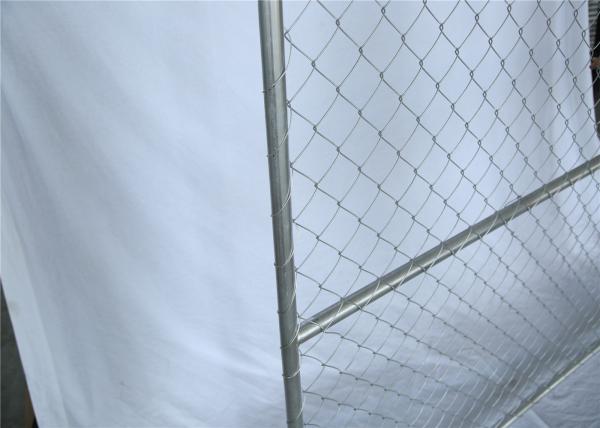

6' x 12' construction fencing panels 41.2mm outer tube wall thick 1.6mm mesh 3"x3" diameter 2.7mm

6' × 12' panel with a vertical brace

6' × 12' panel with cross brace

6' × 12' panel with the horizontal brace

6' × 12' panel with a vertical brace

6' × 12' panel with cross brace

6' × 12' panel with the horizontal brace

6' × 12' panel with a vertical brace

6' × 12' temporary chain link fence with a height of 6 ft and a width of 12 ft. Use high-quality mild steel wire and galvanized tube as raw material, the infill mesh and frame pipe are tightly wrapped together by tension bars and tension bands. As manufacture, there are three types of stable panel feet including square, oval and flat shapes for your optional. The finished temporary chain link fencing is strong enough and durable for all site-specific requirement, either uneven ground or sloping sites.

In addition, 6' × 12' temporary chain link fence with the wire diameter of 9 gauge, 2-2/5" mesh opening, frame outside diameter of 1-1/4", plus the hot dipped galvanized surface treatment, its service life can be up to 10 years.

SYSTEM COMPONENTS

Panel Specification

Dimensions
(H × W)

6' × 12' (equal to 1.8 × 3.66 m).

Wire diameter

9 ga/2.9 mm, 10.5 ga/2.7 mm, 11 ga/2.3 mm, 11.5 ga/2.4 mm, 12 ga/2.0 mm optional.

Mesh opening

2" (50 × 50 mm), 2.25" (57 × 57 mm), 2.4" (60 × 60 mm), 2.75" (70 × 70 mm) optional.

Frame O.D.

1.25"/32 mm, 1.5"/38 mm, 1.6"/40 mm round optional.

Brace

Cross, vertical, horizontal brace with 1"/2.54 mm round or the same with frame O.D.

Frame structure

360° full welded tubular frame.

Surface treatment

Hot dipped galvanized.

Pre-galvanized.

Attached way

Mesh wrapped around the flat bar then connect with clamps.

Galvanized wire wrapped with steel frame in a rather tension way.

Fence feet Specification

Material

Steel plate, steel solid rod, steel pipe.

Fence feet type

Square, oval, flat

Square/Oval feet Specification

Dimensions
(H × W × H)

36" × 13.75" × 20" (915 × 350 × 200 mm)

30" × 18" × 20" (760 × 460 × 200 mm) optional.

Surface treatment

Hot dipped galvanized.

Pre-galvanized.

Flat feet Specification

Dimensions
(H × W × TH)

23.6" × 4.3" × 0.3" (600 × 110 × 8 mm)

35.4" × 3.0" × 0.25" (900 × 80 × 7 mm) optional.

Hole size O.D.

19 mm.

Interior round steel rod/pipe

30 mm O.D. × 150 mm H.

Exterior square steel rod/pipe

30 × 30 × 150 mm.

Rod space

30 mm.

Surface treatment

Hot dipped galvanized.

Pre-galvanized.

Clamp Specification

Clamp center distance

80, 90, 100 mm optional.

Applied post O.D.

25, 28, 32, 38, 40, 42 mm optional.

Clamp TH

4 mm.

Bolt

Length available 100/60/40 mm with a 10 mm and 8 mm outer diameter.

Nut

15.9 mm, 17 mm optional.

Surface Treatment

Hot dipped galvanized.

Pre-galvanized.

Weight

0.42 kg/set.

Accessory List

2 pieces clamps with 1 bolt and 1 nut.

6' × 12' TEMPORARY CHAIN LINK FENCE PANELS

  • 360° full welded tubular frame. All pipes are 360° full welding circled to make sure a firm fence structure. This can ensure that the temporary fencing is not damaged during the frequent moving process, and will not be corroded even in a hostile environment.

  • Handcraft techniques manufacture. Panels are filled with galvanized chain link mesh and wrapped around the frame tube with tension bars and tension bands by hand in a rather tension way.

  • Another option sturdy attached way. Available flat bar the use clamps to connect the two adjacent panels.

  • 6' x 12' construction fencing panesl 41.2mm outer tube wall thick 1.6mm mesh 3

    Temporary Chain Link Fencing 360° full welded tubular frame

  • 6' x 12' construction fencing panesl 41.2mm outer tube wall thick 1.6mm mesh 3

    Construction Chain Link Fence Hand craft techniques manufacture

  • 6' x 12' construction fencing panesl 41.2mm outer tube wall thick 1.6mm mesh 3

    Chain link fence Panels with Flat bar connect with the panel frame

  • Strong corrosion surface treatment.

    • Hot dipped galvanized. To ensure at least 42 microns thickness of zinc coating. Service life can reach more than ten years.

    • Pre-galvanized. 28 microns or at least 14 microns thickness of zinc coating is anticorrosion can satisfy the normal applications

    6' x 12' construction fencing panesl 41.2mm outer tube wall thick 1.6mm mesh 3

    Hot-dip galvanized temp chain link fence is fully dipped in the zinc pool

FENCE FEET

  • No need to dig holes or laying foundations. Only need to place the base on a flat surface. If necessary, there are two 19 mm diameter pin holes on the flat feet to peg the footing on the ground when the install completes. Besides, there are fixed sandbags for anchoring.

  • Adaptable to all site-specific requirement. With good regional adaptability, the ground is not required to be absolutely flat, either cement or asphalt areas.

  • Stable enough. Technical staff will give reliable advice of fencing feet size according to the panel dimensions.

  • Three different styles are available. We provide the following three types of fence feet for your standard and special demand.

  • 6' x 12' construction fencing panesl 41.2mm outer tube wall thick 1.6mm mesh 3

    Square tubular fence feet

  • 6' x 12' construction fencing panesl 41.2mm outer tube wall thick 1.6mm mesh 3

    Oval tubular fence feet

  • 6' x 12' construction fencing panesl 41.2mm outer tube wall thick 1.6mm mesh 3

    Flat fence feet

CLAMP

Another attached way designed for connecting chain link mesh panels and the frame tube together. Use high-quality steel plate as raw material, specially moulded into various sizes to match with the different size of fencing posts.

  • Versatile. Clamp centre distance with 80, 90, 100 mm optional can match with fencing post diameter with 25, 28, 32, 38, 40, 42 mm.

  • Strong corrosion resistance. With hot dipped galvanized surface treatment, the clamps will not rust even in extremely severe weather.

  • Easy installation. Each set of clamp accessory list including 2 pieces clamps with 1 bolt and 1 nut. Just tighten the screws only by hand.

  • 6' x 12' construction fencing panesl 41.2mm outer tube wall thick 1.6mm mesh 3

    The galvanized clamp of temp chain link fence

  • 6' x 12' construction fencing panesl 41.2mm outer tube wall thick 1.6mm mesh 3

    Clamp installation

PRODUCTION PROCESS

Specified Grade Of Steel – Pipe Cutting – Welded Temp Fence Panel Frame – Hot-Dipped Galvanized – Chain Link Mesh Woven – Tie the Mesh With Frame – Packing – Shipment

6' x 12' construction fencing panesl 41.2mm outer tube wall thick 1.6mm mesh 3

Steel pipe for temporary chain link fence

6' x 12' construction fencing panesl 41.2mm outer tube wall thick 1.6mm mesh 3

Pipe cutting process

6' x 12' construction fencing panesl 41.2mm outer tube wall thick 1.6mm mesh 3

Manual welded temp fence panel frame

6' x 12' construction fencing panesl 41.2mm outer tube wall thick 1.6mm mesh 3

Chain link mesh woven

6' x 12' construction fencing panesl 41.2mm outer tube wall thick 1.6mm mesh 3

Hot-dip galvanized temp chain link fence

6' x 12' construction fencing panesl 41.2mm outer tube wall thick 1.6mm mesh 3

Tie the mesh with frame

6' x 12' construction fencing panesl 41.2mm outer tube wall thick 1.6mm mesh 3

Packed temporary chain link fence

6' x 12' construction fencing panesl 41.2mm outer tube wall thick 1.6mm mesh 3

Temporary chain link fence shipment
