6' × 10' temporary chain link fence with a height of 6 ft and a width of 10 ft. Use high-quality mild steel wire and galvanized tube as raw material, the infill mesh and frame pipe are tightly wrapped together by tension bars and tension bands. As manufacture, there are three types of stable panel feet including square, oval and flat shapes for your optional. The finished temporary chain link fencing is strong enough and durable for all site-specific requirement, either uneven ground or sloping sites.

In addition, 6' × 10' temporary chain link fence with a wire diameter of 10.5 gauge, 2-2/5" mesh opening, frame outside diameter of 1-1/2", plus the hot dipped galvanized surface treatment, its service life can be up to 10 years.

SPECIFICATIONS

6' × 10' TEMPORARY CHAIN LINK FENCE PANELS

• 360° full welded tubular frame. All pipes are 360° full welding circled to make sure a firm fence structure. This can ensure that the temporary fencing is not damaged during the frequent moving process, and will not be corroded even in a hostile environment.

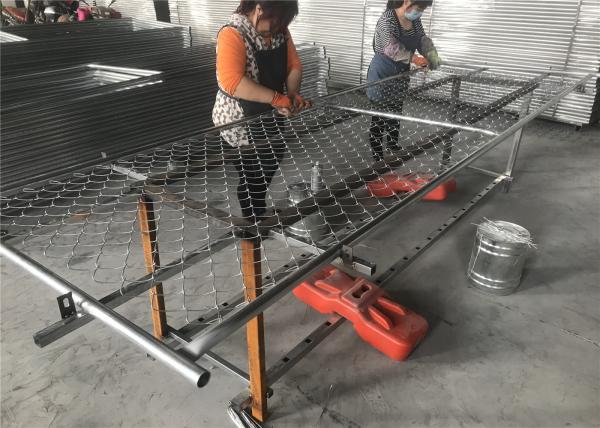

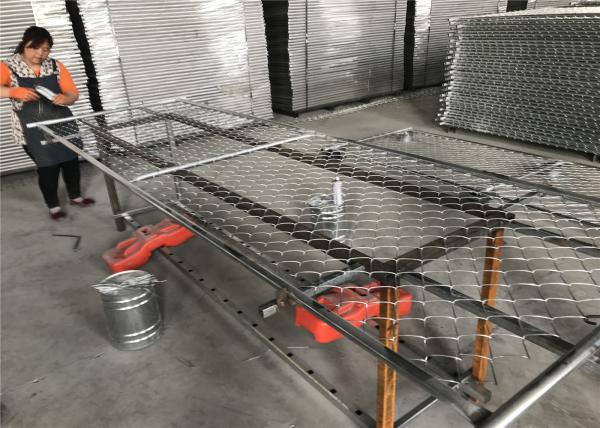

• Handcraft techniques manufacture. Panels are filled with galvanized chain link mesh and wrapped around the frame tube with tension bars and tension bands by hand in a rather tension way.

• Another option sturdy attached way. Available flat bar the use clamps to connect the two adjacent panels.

•

  360° full welded tubular frame

•

  Handcraft techniques manufacture

•

  Flat bar connect with panel frame

• Strong corrosion surface treatment.

  • Hot dipped galvanized. To ensure at least 42 microns thickness of zinc coating. Service life can reach more than ten years.

  • Pre-galvanized. 28 microns or at least 14 microns thickness of zinc coating is anticorrosion can satisfy the normal applications



  Hot-dip galvanized temp chain link fence

FENCE FEET

• No need to dig holes or laying foundations. Only need to place the base on a flat surface. If necessary, there are two 19 mm diameter pin holes on the flat feet to peg the footing on the ground when the install completes. Besides, there are fixed sandbags for anchoring.

• Adaptable to all site-specific requirement. With good regional adaptability, the ground is not required to be absolutely flat, either cement or asphalt areas.

• Stable enough. Technical staff will give reliable advice of fencing feet size according to the panel dimensions.

• Three different styles are available. We provide the following three types of fence feet for your standard and special demand.

•

  Square tubular fence feet

•

  9: Oval tubular fence feet

•

  -10: Flat fence feet

CLAMP

Another attached way designed for connecting chain link mesh panels and the frame tube together. Use high-quality steel plate as raw material, specially molded into various sizes to match with different size of fencing posts.

• Versatile. Clamp center distance with 80, 90, 100 mm optional can match with fencing post diameter with 25, 28, 32, 38, 40, 42 mm.

• Strong corrosion resistance. With hot dipped galvanized surface treatment, the clamps will not rust even in extremely severe weather.

• Easy installation. Each set of clamp accessory list including 2 pieces clamps with 1 bolt and 1 nut. Just tighten the screws only by hand.

• -11: Galvanized clamp of temp chain link fence

•

  Clamp installation

PRODUCTION PROCESS

Specified Grade Of Steel – Pipe Cutting – Welded Temp Fence Panel Frame – Hot-Dipped Galvanized – Chain Link Mesh Woven – Tie the Mesh With Frame – Packing – Shipment

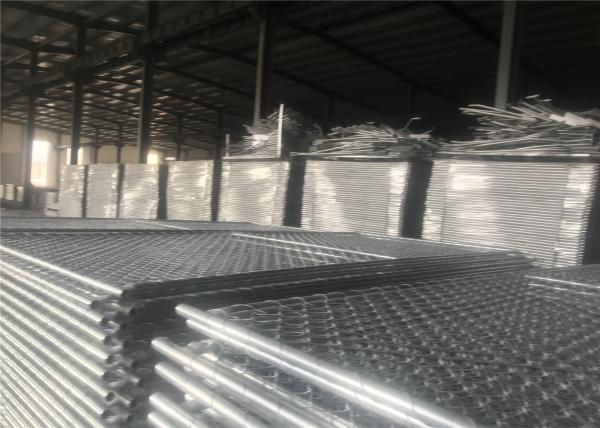

PACKING DETAILS

Temporary chain link fencing panels are delivered in steel pallets, different loading quantity according to different goods and container sizes.
