Crowd Control Pedestrian 4'X12' USA standard Temporary Chain Link Fence Panels 1⅝(42mm) *16GA wall Thick
Crowd Control Pedestrian 4'X12' USA standard Temporary Chain Link Fence Panels 1⅝(42mm) *16GA wall Thick
Crowd Control Pedestrian 4'X12' USA standard Temporary Chain Link Fence Panels 1⅝(42mm) *16GA wall Thick
Crowd Control Pedestrian 4'X12' USA standard Temporary Chain Link Fence Panels 1⅝(42mm) *16GA wall Thick
Specifications
Brand Name :
LNF-Construction Site Fence
Model Number :
4'6'8' Height
Certification :
ASTM
Place of Origin :
American Design China Made
MOQ :
500 liner meter
Price :
8.88$ per liner meter
Payment Terms :
TT30% deposit balance 70% at sight of finished products
Supply Ability :
10000 liner meters
Delivery Time :
7 work days
Packaging Details :
All metal Pallets
Mesh Type :
chain mesh
Diameter :
10ga -13 ga
Treatment :
14 microns 84 microns hot dipped galvanized
Height :
4FT 6FT 8FT
Warranty :
3-15 years depand on treatment
Pipes :
1¼”(32mm) 1⅜”(35mm) 1½”(38mm) 1⅗”(40mm) 1⅝”(42mm) 1⅞”(48mm)and so on
Width :
12FT AS a standard
Standard :
ASTM A392-06
Description

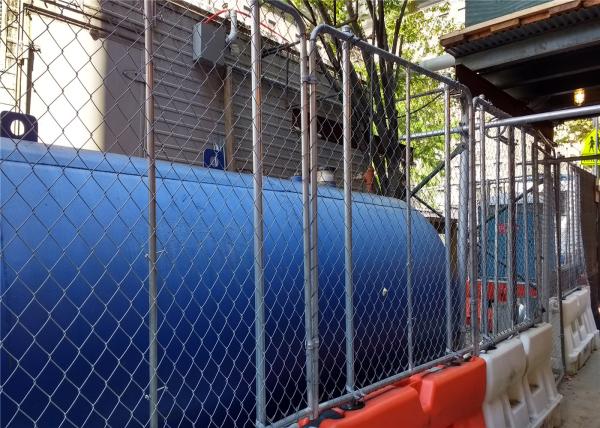

Crowd Control Pedestrian 4'X12' USA standard Temporary Chain Link Fence Panels 1⅝"(42mm) *16GA wall Thick

Advantage of Temporary Chain Link Fence

  • Installation process faster than another fence such as weld wire mesh fence panels
  • No welding all assemble together through accessories such as tension brace
  • Better suitability in inclement climate
Application of Chain Link Construction Fence Panels
  • construction sites,
  • tree protection
  • pool protection
  • many other security needs.

Temporary Chain Link Fence /Construction Fence Panels Spec
Tubing 1¼"(32mm) 1⅜"(35mm) 1½"(38mm) 1⅗"(40mm) 1⅝"(42mm) 1⅞"(48mm)and so on
Thickness of Tubing 14ga/2.00mm 14.5ga/1.90mm 15ga/1.80mm 15.5ga/1.70mm 16ga /1.6mm 16.5ga/1.50mm 17ga1.42mm 18ga 1.22mm
Chain mesh aperture 2"x2"/(50mm x 50mm) 2¼"x2¼"(57mmx57mm) 2⅜"x2⅜"(60mmx60mm) 2½"x2½"(63mmx63mm)
Height 4ft/1220mm 6ft/1820mm 8ft/2420mm
Width 12ft /3650mm was wide acceptance by market also 8ft 9ft 10ft 14ft
Panels Size 6ft x 12ft ,8ft x 12ft, 4ft x 12ft and so on
Diameter /Gauge 10ga/3.2mm ,10.5ga/3.00mm ,11ga/2.90mm,11.5ga/2.75mm,12ga /2.60mm 12.5ga/2.5mm 13ga/2.3m
Base Optional 1 36" length x 30" width x 8"Height /914mmx762mmx203mm
Base Optional 2 36" length x 16" width x 8" Height /914mmx406mmx203mm
Base Optional 3 30" length x 18" width x 8" Height /762mm x460mm x203mm
Standard ASTM A392-06
Steel Galvanized Steel Construction
Finish Corrosion-Resistant Zinc Coating
Transport Packing Metal pallet Wrapped with Plastic
HDG zinc thickness 14 microns 100gram/SQM 28 microns 200 gram/SQM 42 microns 300 gram/SQM and 84 microns 600 gram/SQM

Crowd Control Pedestrian 4'X12' USA standard Temporary Chain Link Fence Panels 1⅝Crowd Control Pedestrian 4'X12' USA standard Temporary Chain Link Fence Panels 1⅝
