Specifications
Brand Name :
LNF-Chain link Fence Panels
Model Number :
4'6'8' Height
Certification :
ASTM
Place of Origin :
American Design China Made
MOQ :
1700 liner ft
Price :
4.00$/liner ft
Payment Terms :
TT30% deposit balance 70% at sight of finished products
Supply Ability :
10000 liner ft
Delivery Time :
7 work days
Packaging Details :
All metal Pallets
Materials :
Q235 Steel Pipes and Wire
Mesh Opening :
2"x2"/(50mm x 50mm) 2¼"x2¼"(57mmx57mm) 2⅜"x2⅜"(60mmx60mm) 2½"x2½"(63mmx63mm)
Diameter :
10ga/3.2mm ,10.5ga/3.00mm ,11ga/2.90mm,11.5ga/2.75mm,12ga /2.60mm 12.5ga/2.5mm 13ga/2.3m
Type :
chain mesh
Warranty :
5-15 years depand on treatment
Customized :
Available
Size :
6ftx10ft ,6ftx8ft,6.5ft x 9ft etc
Feet :
36" length x 16" width x 8" Height /914mmx406mmx203mm
Accessoires :
Top Couper
Feature :
Easily Assembled,Eco Friendly,Rot Proof,Waterproof
Frame finishing :
PVC Coated,Powder Coated,galvanized,Hot dipped galvanized,Not Coated
Frame material :
Metal,Plastic
Pressure treated wood type :
Heat Treated,Nature,Chemical
Metal type :
Steel,Iron
Surface treatment :
Galvanized+PVC Coated,hot dipped galvanized,Electro Galvanized,PVC,Electric\hot-dipped Galvanized+pvc\powder Coated
Material :
Low-Carbon Iron Wire,Galvanized Wire,stainless steel,low carbon steel wire,Galvanized iron wire or PVC coated iron wire
Color :
black,Green,white,red,Silver
Application :
Fence Mesh,garden,Sport Field,greenfield,Basketball
Product name :
Chain Link Fence,galvanized 6' black chain link fence slat privacy,High Security 6x10 chain link temporary fence panels,temporary fence,Wholesale garden metal chain link fence panels
Length :
10ft/12ft/16ft
Wire diameter :
2.0-4.8mm
Usage :
river banks,construction and residence,galvanized chain link fence,sports field,used chain link fence for sale
Packing :
Pallet,Woven bag in two sides,Bulk or pallet,Plastic Film,Rolls
Hole shape :
diamond,Square,Customer's Request
Name :
Chain link fence,Hot Sales 6'x10' Canadian/American temporary Chain Link Fence Panel,Galvanized Chain Link Fence/PVC Coated Used Chain Link Fence For Sale,sports fence,Link Fence Netting
Width :
0.5m-5.0m
Wire gauge :
2.0-4.0mm
Description

Hot Dipped Galvanized 1.6mm Wall Thickness Temporary Chain Link Fencing Panels 11.5ga wire


Techniques:
Excellent surface coating and protect techniques.
Fully equipped powder coating line.

Characteristic:
Excellent rust resistant (fifteen years guarantee)
Rich optional color
Unique modeling
Easy to install
Environmental protection
Corrosion Form: Hot-dipped galvanized after welded, pre-galvanized tubes then Powder coating.

Chain Link Temporary fence panel is also known as American temporary fence, movable fence, construction fence. It is consist of chain link panel, round tube frame, steel feet, optional stays and clamps.This kind of fence has a superior structure, mobility and environmental suitability is very good.

Chain Link Temporary Fence Specification
Fence height
4ft, 6ft, 8ft
Fence width/length
10ft, 12ft, 14ft, etc
Wire diameter
2.7mm, 2.5mm, 3mm
Chain link mesh size
57x57mm (2-1/4"), 50x50mm, 60x60mm, etc.
Frame tube O.D
33.4mm (1-3/8"), 32mm, or 42mm (1-5/8") with 0.065" wall thickness
Vertical/cross brace tube O.D
25mm or 32mm with 1.6mm (0.065") wall thickness
Fence base/stand
610x590mm, 762x460mm, etc
Accessories
clamps, base feet, tension wire and tension bar (optional)
Material
hot dipped galvanized
Surface treatment
All joints are welded and sprayed with a galvanized paint to cover any exposed metal

Main Features

1) Simple structure in linear type ,easy in installation and maintenance.
2) Renewable resource, could be used for several years.
3) All welding slag are cleared to insure fence smooth surface.
4) Whole panel (welded mesh panel and frame tube) will be silver spray painted after welding to protect all welding spots.
5) Customized fence shape or specification is also available.

Detailed Images

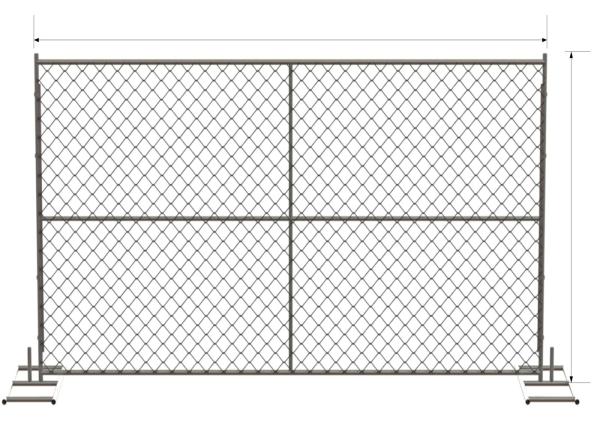

There are two types of chain link panel:
Hot Dipped Galvanized 1.6mm Wall Thickness Temporary Chain Link Fencing Panels

Type 1: panel all 4 sides are wire laced.

Hot Dipped Galvanized 1.6mm Wall Thickness Temporary Chain Link Fencing Panels

Type 2: two vertical sides are fixed on frame by flat bars and clamps.

Fence stand/feet:

Hot Dipped Galvanized 1.6mm Wall Thickness Temporary Chain Link Fencing Panels

Type 1:

Surface treatment:

hot dipped galvanized

stand shape: rectangle/oval

Hot Dipped Galvanized 1.6mm Wall Thickness Temporary Chain Link Fencing Panels

Type 2:

Surface treatment:

powder coated
stand shape: rectangle/oval

Hot Dipped Galvanized 1.6mm Wall Thickness Temporary Chain Link Fencing Panels

Type 3:
Surface treatment:

hot dipped galvanized

stand shape: H/rectangle/oval

Chain link fence panel optional parts:

Hot Dipped Galvanized 1.6mm Wall Thickness Temporary Chain Link Fencing Panels

Fence clamp:

To connect two panels together

Hot Dipped Galvanized 1.6mm Wall Thickness Temporary Chain Link Fencing Panels

Fence panel gate:

Gate shape and size could be customized.

Hot Dipped Galvanized 1.6mm Wall Thickness Temporary Chain Link Fencing Panels
Fence screen/shade cloth:
Shape: in pieces or in roll
Color: blue, black, dark green, etc.

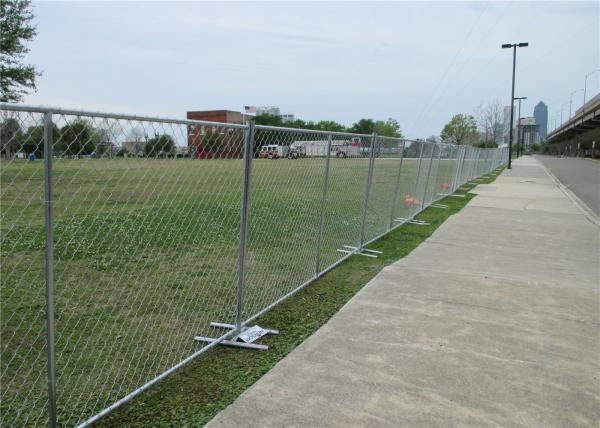

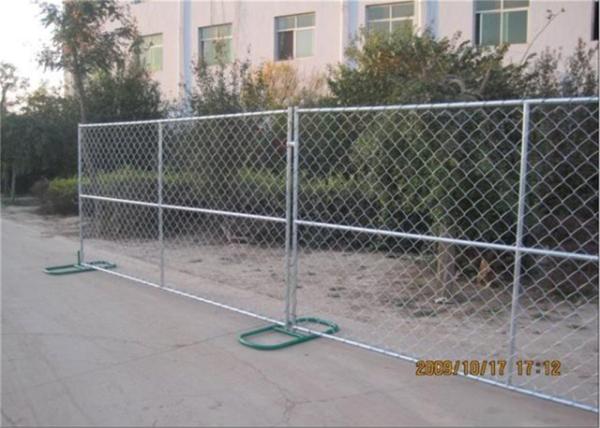

Temporary chain link panel fence is an alternative to its permanent counterpart when a fence is required on an interim basis when needed for storage, public safety or security, crowd control, or theft deterrence.

Temporary chain link panels is also often seen at special outdoor events, parking lots, and emergency/disaster relief sites. It offers the benefits of affordability and flexibility.

Hot Dipped Galvanized 1.6mm Wall Thickness Temporary Chain Link Fencing Panels
Hot Dipped Galvanized 1.6mm Wall Thickness Temporary Chain Link Fencing Panels
Hot Dipped Galvanized 1.6mm Wall Thickness Temporary Chain Link Fencing Panels
Hot Dipped Galvanized 1.6mm Wall Thickness Temporary Chain Link Fencing Panels
Packing & Delivery

Panels: in order to load more quantity into container, fence panel package will be in bulk. We will load panels piece by piece.

Stands/feet: steel pallet and fastened with nylon belt.

Clamps: in carton. 50pcs/carton

Screen/shade cloth (if required): in bundle

Hot Dipped Galvanized 1.6mm Wall Thickness Temporary Chain Link Fencing Panels
Hot Dipped Galvanized 1.6mm Wall Thickness Temporary Chain Link Fencing Panels
Hot Dipped Galvanized 1.6mm Wall Thickness Temporary Chain Link Fencing Panels
Hot Dipped Galvanized 1.6mm Wall Thickness Temporary Chain Link Fencing Panels
Hot Dipped Galvanized 1.6mm Wall Thickness Temporary Chain Link Fencing Panels
Hot Dipped Galvanized 1.6mm Wall Thickness Temporary Chain Link Fencing Panels


Specification:
ODM/OEM/Customized Services Available
Product code
panel size(mm)
Frame Pipe(mm)
Up-Right Pipe(mm)
1
6'*8',6'*10',6'*12',6*14' OR Customzied
OD1.65'' x 0.078''/0.07''/0.063''/0.047''
OD1.65''x 0.078''/0.07''/0.063''/0.047''
2
OD1.26''x0.078''/0.07''/0.063''/0.047''
OD1.26''x0.078''/0.07''/0.063''/0.047''
3
OD1.18''x0.078''/0.07''/0.063''/0.047''
OD1.18''x0.078''/0.07''/0.063''/0.047''
Chain Link
3'' * 3'' *11.5Ga or Customized
Bracket&Post
Suggest 7.5' pre-Gal post and 9.5' pre-Gal post as corner post
Galvanized Base Supporting 35.5''*16''
Chain link mesh for fencing, woven from steel wire, is probably the most widely used and versatile of all fencing fabrics, available in a variety of wire gauges and mesh sizes to suit specific applications

GALVANIZED CHAIN LINK MESH FOR TEMPORARY FENCE
WIRE GAUGE
WIDTH
LENGTH
3/4''
20mm
BWG11,12,13
0.5-3M
5M-25M
1''
25mm
BWG11,12,13
0.5-3M
5M-25M
1-1/2''
40mm
BWG8,9,10,11,12,13
0.5-3M
5M-25M
2''
50mm
BWG8,9,10,11,12,13
0.5-3M
5M-25M
2-1/2''
60mm
BWG8,9,10,12
0.5-3M
5M-25M
PLASTIC COATED CHAIN LINK FENCE
MESH
WIRE GUAGE
WIDTH
LENGTH
60*60MM
2.0/2.8MM
0.5-3MM
10-25MM
50*50MM
1.8/2.6MM
0.5-3MM
10-25MM
50*50MM
2.0/2.8MM
0.5-3MM
10-25MM
REMARK: OTHER SIZES AVAILABLE AFTER CONFIRMATION

Chain link temporary fence is designed for long life and regular use. They incorporate an anti-climb chain link mesh infill and are fully hot dipped galvanized to Australian Standards.
When used in conjunction with our Plastic/Concrete Fence Feet, Clamps and Stays, it creates a Complete
Chain link temporary fencing that is very stable, versatile and cost-effective.

Hot Dipped Galvanized 1.6mm Wall Thickness Temporary Chain Link Fencing Panels


Specification
Product name
temporary chain link fence
Wire diameter
2.5mm
Mesh opening
50x50mm(popular), 60x60mm
HXL
2.1x2.4m(regular size),1.8x2.4m, 1.8x2.9m, 2.25x2.4m, 2.1x2.6m, 2.1x3.3m
Frame pipe
25mm, 32mm, 40mm, 42mm, 48mm O.D.
Pipe thickness
2.0mm, 2.2mm, 2.3mm, 2.5mm, 2.75mm, etc
Pipe zinc coating
About 300g/m2(42 microns)
Surface finish
Hot dipped galvanizing
Wire zinc coating
About 200g/m2(28 microns)
Blow mold plastic feet
600x228x150mm
Feet
There are two kinds: metal and plastic
Clamps
Chain link temporary fence clamps used to secure the panels together.
Hot Dipped Galvanized to Australian Standard - 42 Microns.
Specially molded and 4mm thick for additional strength, center distance: 75mm, 80mm, 90mm, 100mm, etc
Stays
Stays used to support the chain link temporary fencing in high wind areas.
Hot Dipped Galvanized to Australian Standard - 42 Microns.
Specially designed for extra strength so chainlink temporary fencing can stands up in very high winds.
Each Stay requires 3 Clamps and 3 Plastic Feet, or with your demand.
Features
1. quick and easy to install and can be easily relocated
2. temporary chain link fence can protect your valuable assets and protects you against Public Liability claims
3. stabilizers used to ensure sturdy fences on long runs or wind prone areas.
4. new bracing system further ensures the integrity of the fence system in areas prone to high winds
5. temporary chain link fence is available on the Industrial/Event panel
Application
Chain link temporary fence is used in all types of construction sites -commercial, residential, heavy construction, demolition, renovation, renovation.
Panel Packing
Chain link temporary fence is pack with plastic film and steel pallet.
  • 15 days after receiving the deposit shipment;
  • We choose a shipping company of high quality but charges lower price;
  • For loading goods, we track all the way to ensure the products' safety and quickness until their arriving at the port of destination;
  • After confirming receipt, we will provide installation instructions and subsequent technical guidance;
  • For products and accessories, our company is able to provide various products accessories at the cost to the customer at any time.
Hot Dipped Galvanized 1.6mm Wall Thickness Temporary Chain Link Fencing PanelsHot Dipped Galvanized 1.6mm Wall Thickness Temporary Chain Link Fencing Panels
