2.375X2.375 (60mmx60mm) Chain Mesh Aperture Tubing 38mm X 16 Ga Wall Thick 6′x9.5′ Temporary Chain Link Fence
2.375X2.375 (60mmx60mm) Chain Mesh Aperture Tubing 38mm X 16 Ga Wall Thick 6′x9.5′ Temporary Chain Link Fence
2.375X2.375 (60mmx60mm) Chain Mesh Aperture Tubing 38mm X 16 Ga Wall Thick 6′x9.5′ Temporary Chain Link Fence
2.375X2.375 (60mmx60mm) Chain Mesh Aperture Tubing 38mm X 16 Ga Wall Thick 6′x9.5′ Temporary Chain Link Fence
2.375X2.375 (60mmx60mm) Chain Mesh Aperture Tubing 38mm X 16 Ga Wall Thick 6′x9.5′ Temporary Chain Link Fence
2.375X2.375 (60mmx60mm) Chain Mesh Aperture Tubing 38mm X 16 Ga Wall Thick 6′x9.5′ Temporary Chain Link Fence
2.375X2.375 (60mmx60mm) Chain Mesh Aperture Tubing 38mm X 16 Ga Wall Thick 6′x9.5′ Temporary Chain Link Fence
2.375X2.375 (60mmx60mm) Chain Mesh Aperture Tubing 38mm X 16 Ga Wall Thick 6′x9.5′ Temporary Chain Link Fence
Specifications
Brand Name :
LNF-residential fence panels
Model Number :
4'6'8' Height and 2100mm height etc
Certification :
ASTM392 ASTM396
Place of Origin :
American Design China Made
MOQ :
500 liner meter
Price :
8.88$ per liner meter
Payment Terms :
TT30% deposit balance 70% at sight of finished products
Supply Ability :
10000 liner ft
Delivery Time :
7 work days
Packaging Details :
All metal Pallets
Materials :
Q235 Steel Pipes and Wire
Mesh Opening :
2"x2"/(50mm x 50mm) 2¼"x2¼"(57mmx57mm) 2⅜"x2⅜"(60mmx60mm) 2½"x2½"(63mmx63mm)
Diameter :
10ga/3.2mm ,10.5ga/3.00mm ,11ga/2.90mm,11.5ga/2.75mm,12ga /2.60mm 12.5ga/2.5mm 13ga/2.3m
Type :
chain mesh
Warranty :
5-15 years depand on treatment
Customized :
Available
Size :
6ftx10ft ,6ftx8ft,6.5ft x 9ft etc
Feet :
36" length x 16" width x 8" Height /914mmx406mmx203mm
Accessoires :
Top Couper
Description

2.375"X2.375" (60mmx60mm) Chain Mesh Aperture Tubing 38mm X 16 Ga Wall Thick 6′x9.5′ Temporary Chain Link Fence

1. Chain Link, Temporary fence is also known as Temporary fencing, temporary fence panels, portable fence, Temp fence, temp fencing, and mobile fence. It is consist of chain link panel, round tube frame, plastic feet, stays, and clamps. This kind of fence has a superior structure, globality, mobility, and environmental suitability is very good.

2.Common product specification:

Material

low carbon steel wire, Q195

carbon steel pipe, Q235

US Standard Specification

Wire diameter:2.7mm

Mesh opening:58x58mm,60mm*60mm,50mm*50mm

Frame pipe:32mm O.D.33.4mmO, D

Pipe thickness:2.0mm--3.0mm

HXL:6'*10

Surface finish

(Hot dipped galvanizing)

Wire zinc coating

About 200g/m2(28 microns)

Pipe zinc coating

About 300g/m2(42 microns)

Fence base

Hot dipped galvanizing, sizes are suited to the pipe diameter.

Base feet

762mm*460mm,customized colors

Package

On steel pallet

3. Chain link fence features:

1). It can quickly and easily be installed, without the need to disturb the surface area by digging holes or laying foundations.

2). Weather resistant and durable, and will last much longer; The temporary fences are light and easy to handle while being strong and robust at the same time;

3). The feet are removable which makes transportation and storage much easier and more efficient

4). Easy to Erect - four meters a minute

Light and easy to handle

Create a gate at any point on the perimeter

Economical temp fence - can be used time after time

Delivered accompanied by forklift for easy distribution

Constructed from heavy gauge galvanized tube and welded mesh infill

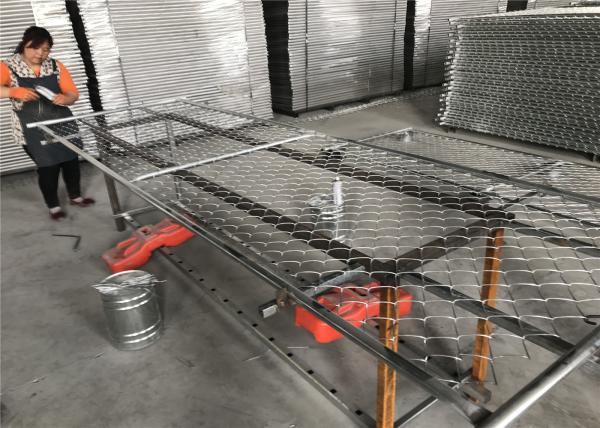

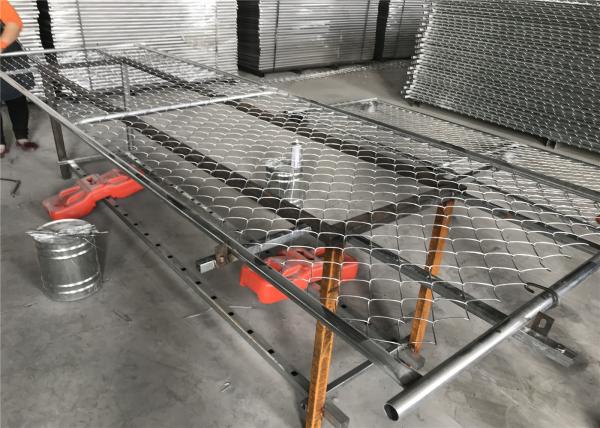

4.Construction chain link fence productive process:

Pre-hot dip galvanized wire drawing--- cut wire and pipes ---wire weave---cut the corners of the mesh---Pre hot dip galvanized pipes welded-polish the welds-paint anti-rust epoxy-spray sliver powder coat on each welds-stacking-packaging

2.3752.3752.375
