Specifications
Brand Name :
LNF-ClearVU Wire Fence
Model Number :
3"x0.5"x 8ga wire euqal to 12.70mm x 76.20mm x 4.00mm wire
Certification :
ISO
Place of Origin :
South African Design China Made
MOQ :
500 liner meter
Price :
18.88$ per liner meter
Payment Terms :
TT30% deposit balance 70% at sight of finished products
Supply Ability :
10000 liner meters
Delivery Time :
7 work days
Packaging Details :
All metal Pallets
Materials :
Q235 Steel
Mesh Opening :
3" x 0.5" x 8gague wire,12.70mm x 76.20mm
Diameter :
4.00mm ,3.00mm
Size :
Available Customized
Color :
All RAL color card
Treatment :
Hot Dipped Galvanized Or Powder Coated
V Beams :
Available
Sample :
Free but pay freight cost
Accessoires :
Clamp,Post ,Y arm for barb wire
Feature :
Anti ,Resistant ,Cut ,Climb
Main Market :
Africa ,Oceania ,Aisa
Salt Spray Test :
Pass
Description

ClearVu Fencing, THE INVISIBLE WALL, SECURITY FENCE

ClearVu has been engineered as a security barrier which disappears into its surroundings. The high density, high tensile mesh includes apertures too narrow for finger and footholds, preventing climbing or cutting with standard tools, bolt cutters etcA range of detection systems that work effectively with ClearVu is available to enhance security peace-of-mind. In addition, it can accommodate various topping options to further enhance the security of the Clearvu Security Fence. The average lifespan of ClearVu under normal conditions is in excess of 25 years.

ClearVu Fencing,THE INVISIBLE WALL, SECURITY FENCE

Products: 358 security fence panels
Color: Green RAL6005, Black RAL9005, Yellow RAL1021 or as request
Wire diameter: 3-6mm
Surface treatment: Hot Dipped Galvanized (505g/m²) / Electric
Galvanized + Polyester Powder Coated (All colors in Ral)
Mesh Opening: 76.2mm*12.7mm / 75.0mm*12.5mm /100mm*15mm
POST CAP: Metal Cap / Anti-UV Plastic Cap
CLAMP: Metal Clamp / Flat Bar Covered
Panel height
Panel width
Vertical wire
Horizontal wire
Post section
Post length
No of bends
No of clamps
1800mm
2515mm
4.0mm
3.15mm
60*60*2mm
2400mm
4
16
2000mm
2515mm
4.0mm
3.15mm
60*60*2mm
2600mm
4
16
2200mm
2515mm
4.0mm
3.15mm
60*60*2mm
2800mm
4
16
2400mm
2515mm
4.0mm
3.15mm
60*60*2mm
30000mm
4
16
3000mm
2515mm
4.0mm
3.15mm
60*60*2mm
3600mm
4
16
Clear View Fence Wonder Fence. Anti-climb weld mesh system (also known as 358 mesh fencing) is dominantly used in fencing systems designed to bring maximum perimeter protection to a site without impeding visibility (which is important for human patrolling or video surveillance).
Product advantages:
High Density weld confi guration provides a finger-proof, anti-climb barrier
High delay factor
Extremely diffi cult to cut using conventional wire cutters
Excellent through visibility, due to 4.00mm* wire diameter & rectangular mesh confi guration
Compatible with most electronic alarm and detection systems

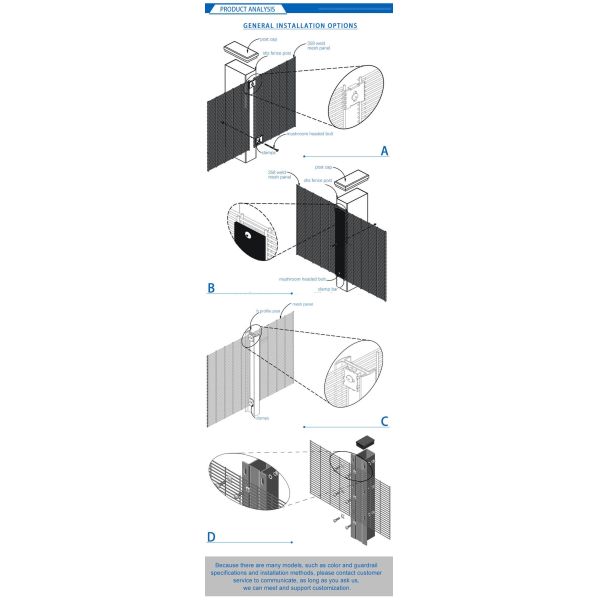

ClearVu Panels
  • 3mm horizontal x 4mm vertical diameter high tensile wires
  • Aperture size - 76,2mm x 12,7mm (3510)
  • Panels reinforced with 4 x 50mm deep "V" formation horizontal recessed bands and 2 x 75mm 70-degree flanges along sides.
ClearVu Posts
  • Tapper posts with UV stabilized polymer end cap
  • Tapper: 85mm - 45mm / 150mm - 75mm
Options
A variety of anti-climb structures may be installed to the mesh top such as:
  • Razor mesh
  • 100mm high galvanized Shark tooth spike rails
  • 100mm high galvanized castle spikes
  • Lines of electric fence wires
ClearVu Fencing,THE INVISIBLE WALL, SECURITY FENCE
