clear view fence cape town
clear view fence cape town
clear view fence cape town
clear view fence cape town
clear view fence cape town
clear view fence cape town
clear view fence cape town
clear view fence cape town
Specifications
Brand Name :
LNF-ClearVU Wire Fence
Model Number :
3"x0.5"x 8ga wire euqal to 12.70mm x 76.20mm x 4.00mm wire
Certification :
ISO
Place of Origin :
South African Design China Made
MOQ :
500 liner meter
Price :
18.88$ per liner meter
Payment Terms :
TT30% deposit balance 70% at sight of finished products
Supply Ability :
10000 liner meters
Delivery Time :
7 work days
Packaging Details :
All metal Pallets
Materials :
Q235 Steel
Mesh Opening :
3" x 0.5" x 8gague wire,12.70mm x 76.20mm
Diameter :
4.00mm ,3.00mm
Size :
Available Customized
Color :
All RAL color card
Treatment :
Hot Dipped Galvanized Or Powder Coated
V Beams :
Available
Sample :
Free but pay freight cost
Accessoires :
Clamp,Post ,Y arm for barb wire
Feature :
Anti ,Resistant ,Cut ,Climb
Main Market :
Africa ,Oceania ,Aisa
Salt Spray Test :
Pass
Description

clear view fence cape town is a simple but strong enough and high security Panel fence system.It including panel mesh ,post and accessories ,the panel mesh is welded with galvanized wire as per EN10244 or low carbon steel wire in high tensile strength, and the post variety is C post, UC post,H post,T post,square post,round post,rectangular post.The bolts and nuts of clear view fence cape town are stainless steel 304 , panel and post are powder coated with Akzo Nobel- Interpon 600 series powder and pass 500H-1000H salty spray followed by ISO9227.

Feature:

  • 1, Attractive appearance or see through view
  • 2, Rigid enough with perfect steel structure
  • 3, Simple and easy installation
  • 4, Alternative for both ground bury or flange installation
  • 5, Suitable for flat ground and slope ground installation
  • 6, High security protection and anti climb
  • 7, Anti cutting and durable
  • 8, Reference standard:BS1722-14,ISO1461,EN13438,EN10436
Application:
Secure wall is suitable for:
Prison
Power stations
Government infrastructure projects
Parks
Factories
Warehouses
Sports facilities
Commercial and industrial applications
Airport
oil-gas pipeline infrastructure
Railway
Military base
Harbor

Specification clear view fence cape town

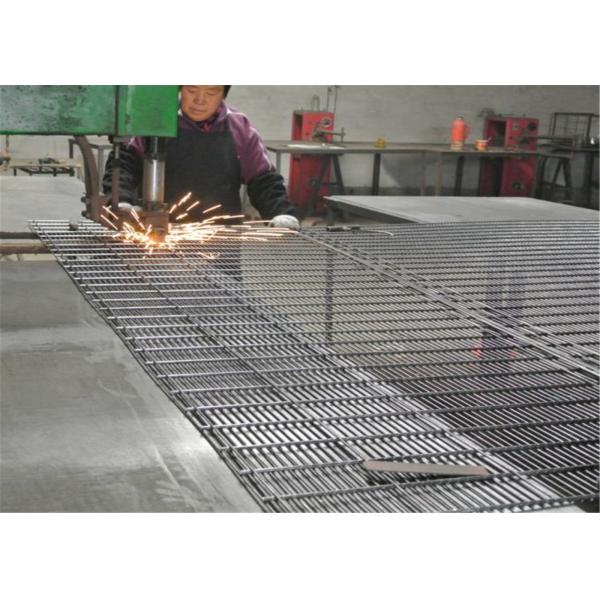

The fence panel is welded by our advanced automatic machine to give the fence high welded shear strength and more rigid after installation. wire diameter comes with 3mm,4mm,5mm, mesh size in 76.2*12.7mm or 75x12.5mm.The surface treatment of clear view fencing Durban in hot dipped galvanized only; hot dipped gavanized+ polyester powder coating, pre galvanized+polyester powder coating as per EN13438, standard colors: RAL6005 Green,RAL9005 Black,RAL7040 Grey,RAL7016 Grey,RAL5002 Blue,other colors on request.
Code
Style
Panel Size
Mesh
Wire
Post1
Post2
Post3
1111830
3D
1830*2740
76.2*12.7
75*12.5
3+4mm
76*64
C post
100*100*6*8
UC/H post
80*80 square post
76.2OD round post
1112130
3D
2130*2740
76.2*12.7
75*12.5
3+4mm
76*64
C post
100*100*6*8
UC/H post
80*80 square post
76.2OD round post
1112440
3D
2440*2130
76.2*12.7
75*12.5
3+4mm
76*64
C post
100*100*6*8
UC/H post
80*80 square post
76.2OD round post
1112740
3D
2740*2130
76.2*12.7
75*12.5
3+4mm
76*64
C post
100*100*6*8
UC/H post
80*80 square post
76.2OD round post
1121830-clear view fence cape town
2D
1830*2440
76.2*12.7
75*12.5
4+4mm
76*64
C post
100*100*6*8
UC/H post
80*80 square post
76.2OD round post
1122130
2D
2130*2440
76.2*12.7
75*12.5
4+4mm
76*64
C post
100*100*6*8
UC/H post
80*80 square post
76.2OD round post
1122440
2D
2440*2130
76.2*12.7
75*12.5
4+4mm
76*64
C post
100*100*6*8
UC/H post
80*80 square post
76.2OD round post
1122740
2D
2740*2130
76.2*12.7
75*12.5
4+4mm
76*64
C post
100*100*6*8
UC/H post
80*80 square post
76.2OD round post

clear view fence cape town Fencing Post

The C post is our unique design on clear view fence Pretoria market,it's shaped from galvanized coils as per EN10346.the post is rigid structure and attractive appearance. The post also comes in UC/H post,T post,I post,IPE post,round post and square post.The surface treatment in hot dipped galvanized only; hot dipped galvanized+polyester powder coating;pre galvanized+polyester powder coating as per EN13438, standard colors: RAL6005 Green,RAL9005 Black,RAL7040 Grey,RAL7016 Grey,RAL5002 Blue,other colors on request.

Accessories clear view fence cape town :

1. Installation Fittings: flat bar-H1 or steel clamp,top tail, bottom tail, bolt,shear off nut,washer,rain-hat.
2. Extension Fittings:razor wire, barbed wire,extension arm(single or double arm),wall spike.
3. Security Enhence Fittings: electric fencing system

clear view fence cape townclear view fence cape townclear view fence cape town
