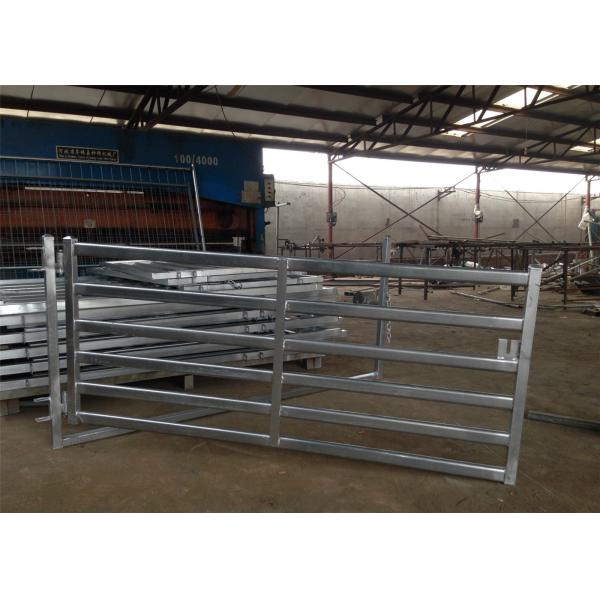

Heavy Duty Corral Panels
Heavy Duty Corral Panels
Heavy Duty Corral Panels
Heavy Duty Corral Panels
Heavy Duty Corral Panels
Heavy Duty Corral Panels
Heavy Duty Corral Panels
Heavy Duty Corral Panels
Heavy Duty Corral Panels
Heavy Duty Corral Panels
Specifications
Brand Name :
wiremeshfence.com/buy-farm_fence.html
Model Number :
1.6m 1.8m height 5 bar 6 bars
Certification :
ISO
Place of Origin :
American Design China Made
MOQ :
500 liner meter
Price :
8.88$ per liner meter
Payment Terms :
TT30% deposit balance 70% at sight of finished products
Supply Ability :
10000 liner meters
Delivery Time :
7 work days
Packaging Details :
All metal Pallets
Materials :
Q235 steel pre hot dipped galvanized steel pipe
Color :
Any Ral Color
Treatment :
Hot Dipped Glavanized,Powder Coated
Thickness :
1.2-2.5mm
Type :
Weld panels
Warranty :
5 -25 years depand on the treatment
Main Market :
Oceania Europea ,Middle East ,USA ,AU etc
Accessoires :
U and L lugs
Customized :
Available
Sample :
Free but pay freight cost
Square pipes :
40*40mm*1.6mm,50*50*1.6m
Round Pipes :
32mm,42mmO.D,1.6mm thick
Oval Pipes :
30*60*1.6mm,40*80*1.6mm
Height :
1.6m high with 5 bars,1.8m
Name :
Heavy duty galvanized livestock panel ,cattle panel ,horse pane, ,sheep panels
Stanard Size :
1800x2100,1600mm x 2100mm
Description

heavy duty cattle panel is usually called cattle panel, horse panel, livestock panel, corral panel

Heavy Duty Corral Panels, also called cattle fence panels, livestock panels, and corral fence panels, are a kind of welded steel tube fence for cattle, horses and other livestock. It is made of high-quality, low carbon steel, which has good strength. We can provide different corral panels and corral panel gates for you. Corral panels consist of round tube corral panels, square tube corral panels and oval tube corral panels. The quantity of the tubes can also be different. The main markets of our corral panels are Australia, European countries, Canada, America and Asia countries.

Features Heavy Duty Corral Panels :

Our Heavy Duty Corral Panels with following features and advantages

  • The fence panel is made of steel so that the panel can stand against the fierce strike of the cattle and horses.
  • It is durable and has good corrosion resistance with galvanised or PVC coating surface.
  • The panel is light, so it is easy to transport.
  • The panel is easy to install without digging holes in the ground.
  • The lugs are welded for all four sides, durable and safe.
  • The panels with welded top caps will be waterproof and dustproof.
Heavy Duty Corral Panels
Corral panels fixed by pins and lugs are stable.		 Heavy Duty Corral Panels
Round tube type corral panels are stable with solid welded points.		 Heavy Duty Corral Panels
Square tube type corral panels.		 Heavy Duty Corral Panels
Oval tube type corral panels with no sharp edges can decrease the hurt to the livestock.
Heavy Duty Corral Panels
The Corral fence gate will be stabler by welding with the fence panel.		 Heavy Duty Corral Panels
The gate installed with the fence panels by clamps will be more flexible.		 Heavy Duty Corral Panels
Corral panels can be used to protect horses.		 Heavy Duty Corral Panels
Corral panels can be used to separate the livestock and protect them.

Specifications:

Our Heavy Duty Corral Panels available several types of tubes such as round tubes, oval tubes and square tubes etc

  • Material: low carbon steel.
  • Surface treatment: hot-dipped galvanised, PVC coated.
  • Zinc coating: more than 15 microns.
  • Colour: green, yellow, black or as your request.
  • Accessories: 1 set needs two rain caps, 2 "U" lugs, 2"L" lugs, two pins and two footplates.

Round Tubes Heavy Duty Corral Panels

Size Height: 1.6 m, 1.8 m, etc.
Length: 2.07 m, 2.09 m, 2.1 m, etc.
Vertical frame OD: 32 mm, 42 mm. Thickness: 1.6 mm.
Horizontal tube size OD: 32 mm, 42 mm. Thickness: 1.6 mm.
Tube quantity 1.6 m height with five tubes, 1.8 m height with six tubes.

Square Tubes

Size Height: 1.6 m, 1.8 m, etc.
Length: 2.07 m, 2.09 m, 2.1 m, etc.
Heavy Duty Corral Panels Vertical frame 40 mm × 40 mm RHS, 50 mm × 50 mm RHS. Thickness: 1.6 mm.
Horizontal tube size 40 mm × 40 mm RHS, 50 mm × 50 mm RHS. Thickness: 1.6 mm.
Horizontal tube quantity 1.6 m height with five tubes, 1.8 m height with six tubes.

Oval tube

Size Height: 1.6 m, 1.8 m, etc.
Length: 2.07 m, 2.09 m, 2.1 m, etc.
Vertical frame 40 mm × 40 mm RHS, 50 mm × 50 mm RHS. Thickness: 1.6 mm.
Horizontal tube size 30 mm × 60 mm oval tube, 40 mm × 80 mm oval tube, 40 mm × 120 mm oval tube. Thickness: 1.6 mm.
Horizontal tube quantity 1.6 m height with five tubes, 1.8 m height with six tubes.
Cattle panel gate 2200 mm × 2000 mm (H × L)
Frame Horizontal & Vertical tube: 50 mm × 50 mm RHS with fully welded caps.
Thickness: 1.8 mm
Heavy Duty Corral Panels gate horizontal tubes 40 mm × 80 mm. Thickness: 1.6 mm.
6 round tubes.
Main gate Size: 2200 mm × 750 mm (height × inner width)
Pipe: 50 mm × 50 mm. Thickness: 2 mm.

Applications

Heavy Duty Corral Panels can be widely used as security fences for farms. With good strength, the panel can keep animals safe and protect your farm fields from wild animals attacking.

Package Heavy Duty Corral Panels :

  1. The fence panel can be packaged with plastic film and wooden or metal pallets.
  2. The accessories like the pins can be packaged with plastic film and a carton box.
  3. We can also pack them as your request.

Photo Heavy Duty Corral Panels

Heavy Duty Corral Panels are designed for the safe and effective flow of cattle in the lead up to the race, reducing stress on livestock by separating operator and beast. Cattle panels can have different shapes; below are the popular shapes and specifications on the market.
Heavy Duty Corral Panels
Heavy Duty Corral Panels
Heavy Duty Corral Panels
Heavy Duty Corral Panels
Heavy Duty Corral Panels
360 degree fully welded
Heavy Duty Corral Panels
Heavy Duty Corral Panels
Heavy Duty Corral Panels
Heavy Duty Corral Panels
Heavy Duty Corral PanelsHeavy Duty Corral Panels
