Green Color PVC Coated Welded Wire Mesh Panels/PVC Coated Prison 358 Security Fencing export to malaysia ,
Green Color PVC Coated Welded Wire Mesh Panels/PVC Coated Prison 358 Security Fencing export to malaysia ,
Green Color PVC Coated Welded Wire Mesh Panels/PVC Coated Prison 358 Security Fencing export to malaysia ,
Green Color PVC Coated Welded Wire Mesh Panels/PVC Coated Prison 358 Security Fencing export to malaysia ,
Green Color PVC Coated Welded Wire Mesh Panels/PVC Coated Prison 358 Security Fencing export to malaysia ,
Green Color PVC Coated Welded Wire Mesh Panels/PVC Coated Prison 358 Security Fencing export to malaysia ,
Green Color PVC Coated Welded Wire Mesh Panels/PVC Coated Prison 358 Security Fencing export to malaysia ,
Green Color PVC Coated Welded Wire Mesh Panels/PVC Coated Prison 358 Security Fencing export to malaysia ,
Specifications
Brand Name :
LNF-wiremeshfence.com/buy-358_fence.html
Model Number :
3.00mm wire 4.00mm wire 12.70mm*76.20mm
Certification :
ISO
Place of Origin :
South African Design China Made
MOQ :
500 liner meter
Price :
18.88$ per liner meter
Payment Terms :
TT30% deposit balance 70% at sight of finished products
Supply Ability :
10000 liner meters
Delivery Time :
7 work days
Packaging Details :
All metal Pallets
Materials :
Q235 Steel
Mesh Opening :
3" x 0.5" x 8gague wire,12.70mm x 76.20mm
Diameter :
4.00mm ,3.00mm
Size :
Available Customized
Color :
All RAL color card
Treatment :
Hot Dipped Galvanized Or Powder Coated
V Beams :
Available
Sample :
Free but pay freight cost
Accessoires :
Clamp,Post ,Y arm for barb wire
Feature :
Anti ,Resistant ,Cut ,Climb
Main Market :
Africa ,Oceania ,Aisa
Salt Spray Test :
Pass
Description

Green Color PVC Coated Welded Wire Mesh Panels/PVC Coated Prison 358 Security Fencing export to Malaysia, South Africa, USA

Product Description

Green Color PVC Coated Welded Wire Mesh Panels/PVC Coated Prison 358 Security Fencing export to malaysia ,

Name Anti-climb Fence /358 high security fence
Material Iron, Stainless Steel,Galvanized wire, Galfan Wire.
Surface Treatment Hot-dipped Galvanized Electro-galvanized with polyester powder coated (all colors in RAL)
Connecting Methods lron Bar. Hexagonal Clamp and Screws
Height 1000mm to 6000mm popular: 2500mm, 3000mm
Width 1000mm to 3000mm popular: 2200mm, 2500mm
Wire thickness 4mm to 6mm the most popular is 4mm (BWG Gauge 8#).
Hole size 76.2mm x 12.7mm (3 inch x 0.5 inch)
Post Square post popular: 60mm x 60mm, 80mm x 60mm
V-top including angle iron, barbed wire, razor barbed wire.
Fastener flat bar, screw, clamp

Green Color PVC Coated Welded Wire Mesh Panels/PVC Coated Prison 358 Security Fencing export to malaysia ,

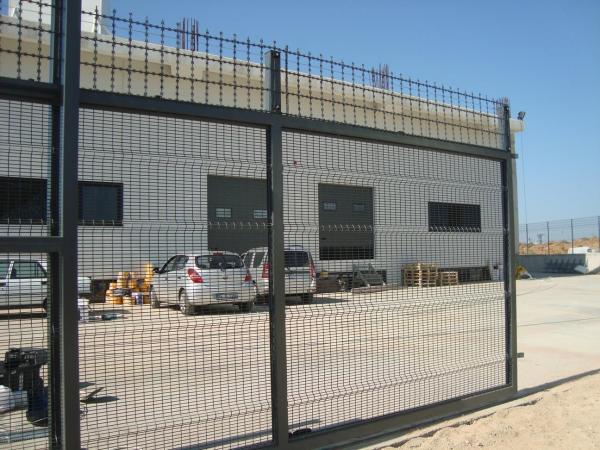

High Security Fence, also called 358 fence, which is well-known as anti-climb and anti-cut fence. Perfectly suited to high security applications, like military, airport, prison, warehouse, factory etc.
This high performance system provides the ultimate protection against anti-climb and cut through. With the additional V-top like barbed wire and razor barbed wire, the system will have multiple additional features to aid security.

Advantages

Green Color PVC Coated Welded Wire Mesh Panels/PVC Coated Prison 358 Security Fencing export to malaysia ,

Green Color PVC Coated Welded Wire Mesh Panels/PVC Coated Prison 358 Security Fencing export to malaysia ,

Packaging & Shipping

Green Color PVC Coated Welded Wire Mesh Panels/PVC Coated Prison 358 Security Fencing export to malaysia ,

an anti-climb fence is also called high-density mesh fence or anti-terrorist mesh fence. It is designed for a high-security area with high strength steel post, high density welded mesh panel, prevent remove fittings and connection and integrated security annex configuration(sawtooth, extension arms, barbed wire and razor ribbon roll). Anti-cut and anti-clamp design make the fence can effectively resist the externals.

Green Color PVC Coated Welded Wire Mesh Panels/PVC Coated Prison 358 Security Fencing export to malaysia ,

specifications:

MasterView 358

2.1m

2.4m

3.0m

Panel height

2134mm

2438mm

2997mm

Panel width

2515mm

2515mm

2515mm

Mesh size

12.7 x 76.2mm

12.7 x 76.2mm

12.7 x 76.2mm

Horizontal wire

4mm

4mm

4mm

Vertical wire

4mm

4mm

4mm

Panel weight

50kg

57kg

70kg

Posts

60 x 90 x 4 mm

60 x 90 x 4 mm

80 x 80 x 4 mm

Post length

2.8m

3.1m

4.0m

Clamp bar

40 x 6 m slotted

40 x 6 m slotted

40 x 6 m slotted

Fixings

8 security nuts

No. of fixings

8

9

11

Other specifications could be customed by the customers’ requirements.

Green Color PVC Coated Welded Wire Mesh Panels/PVC Coated Prison 358 Security Fencing export to malaysia ,Green Color PVC Coated Welded Wire Mesh Panels/PVC Coated Prison 358 Security Fencing export to malaysia ,
