Temporary fence, portable fence, removable fence, pool fence, and swimming pool fencing. We have passed the ISO9001 certification, the fence can meet Australian standard AS 4687-2007.One Complete Set Temporary Wire Mesh Fence Include: Temporary Fence Panel, Temporary Fence Clamps, Temporary Fence Plastic Feet, Temporary Fence Brace

1.Material
Low Carbon Steel Wire+Hot Dipped Galvanized Pipe

2.Surface Treatment
Electro galvanized, Hot dipped galvanized, PVC coated, galvanized after welded, powder coating after welded, paint spraying.

3.Temporary Wire Mesh Fence Produce Process
Wire Drawing → Welding →Tube Raw Material → Cutting → Welding panel and tube →Packing → Loading

4.Specification
Wire Diameter : 2.50mm, 3mm, 3.5mm, 4mm, 4.5mm, 5.00mm
Panel Size(HxL):2100x2400mm, 1800x2400mm, 1800x2500mm,etc
Infill Mesh Opening: 60x150mm,50x150mm,75x75mm,etc
Frame Pipe:25mm,32mm,40mm,42mm,48mm(1.5mm,2.0mm thickness)

5.Australia/New Zealand Temporary Fence Common Specification

Different specifications are available according to your needs

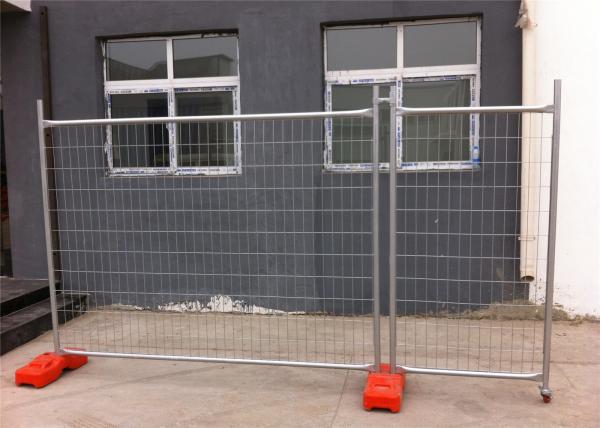

6.Temporary Fence Panel
Our flagship temporary fencing panels are designed to withstand the test of time and the harsh conditions experienced in many construction and resource sites.
7.Panel Features
1>Anti -climb mesh infill
2>360° weld between the vertical & horizontal pipe
3>Horizontal pipe ends crimped for increased strength.
4>Above Industry Benchmark in the thickness of galvanizing
5>Easy to install and to handle

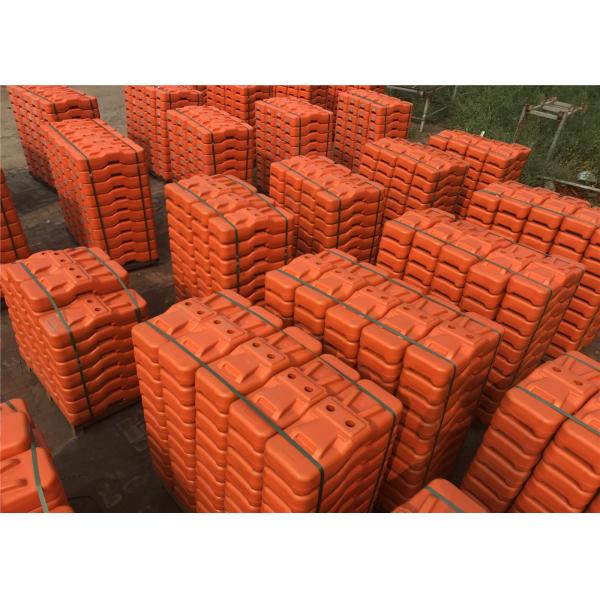

8.Temporary Fence Base
Our Plastic/Concrete Fence Feet are of high quality, heavy duty, long life product. Your High-quality steel temporary fence will look great and be safer with these high visibility colored feet. They are easier to see which makes them safer as they are less likely to be a tripping hazard for the public.
9.Concrete Base Type
1>Blow Plastic Moulding Feet
are also known as temporary fence block, fence base and plastic block, which are UV 5 Treatment, Anti Aging, Colour Fade, Filled Concrete approx 26kg.
Common Dimensions:600mm x 230mm x 130mm
Hole Diameter: OD28mm, 25mm,32mm,42mm,48mm and more
2>Inject Plastic Moulding Feet
Common Size :570mm x 230mm x130mm
Plastic Net Weight:1.3kg
Filled Concrete total weight:28kg
Hole Diameter: OD28mm,25mm,32mm,42mm,48mm and more

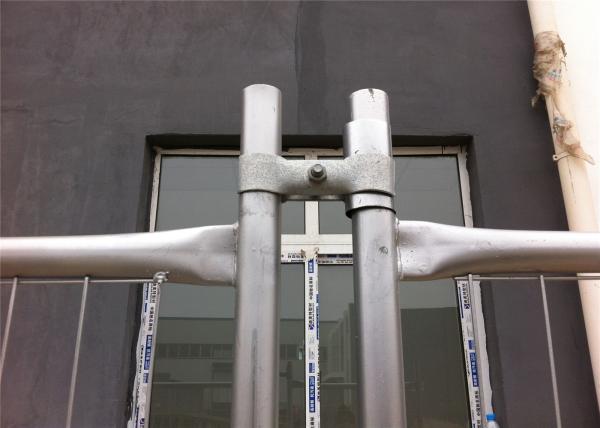

10.Clamps
The clamps are used to secure the panels together. Our temporary fence clamps consist of a central nut bolt, making securing two panels easy and fast.
Hot dipped galvanized temporary fence clamp zinc thickness 42microns which equal to 300gram/sqm total 4.00mm thickness enhance additional durable, strength.
Our clamp can be used to secure the panels together fastly and easily the center distance range from 75mm,80mm,90mm,100mm which suit one OD 25 OD 28 OD 32 OD 42 OD 50 pipe, etc.
11.Temporary Wire Mesh Fence Stay
Also called temporary fence brace or support used to support the temporary fence panel in high wind area finish by hot dipped galvanized 42 microns thickness, per stay required two fence clamp and three concrete feet the additional strength to secure fence panel stand well in high wind per 4.8meter or 7.2meter one stay live.
12.Temporary Wire Mesh Fence Benefits
Quick and easy to install and can be easily relocated, beautiful and practical;
Easy for transport, simple installation in various land situations;
Protects your valuable assets and protects you against Public Liability claims;
Hinged gates can be attached to enable vehicular and machinery access;
Panel stabilizers used to ensure sturdy fences on long runs or wind prone areas;
The new bracing system further ensures the integrity of the fence system in areas prone to high winds;
Fence extensions are available on the Industrial/Event panel;
Several types of fence panel and base are available.

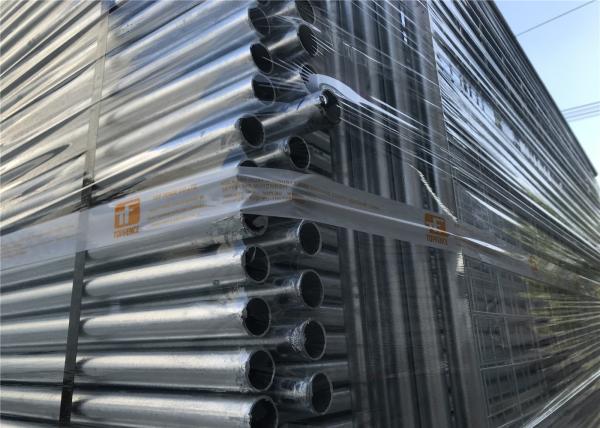

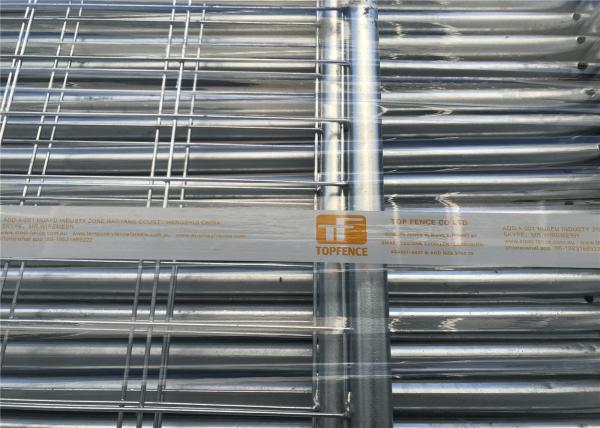

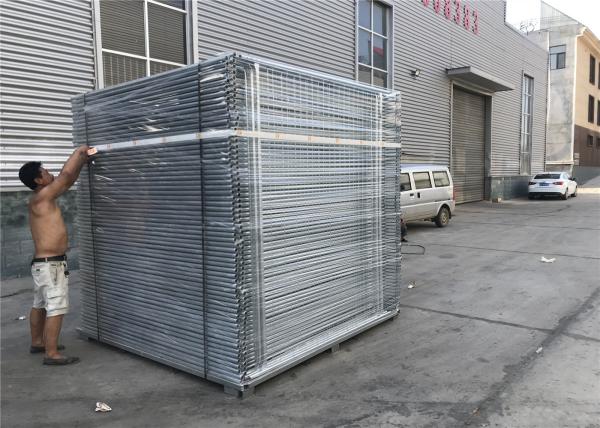

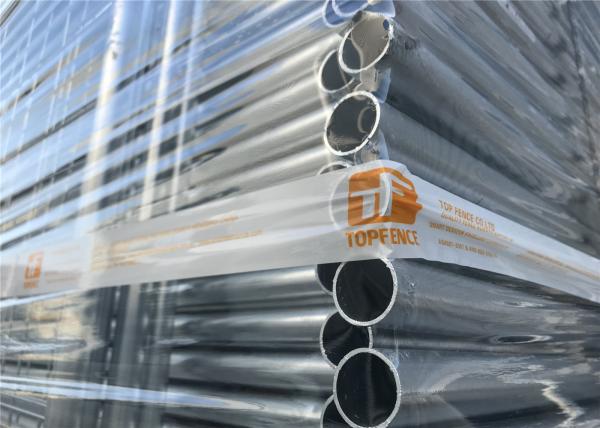

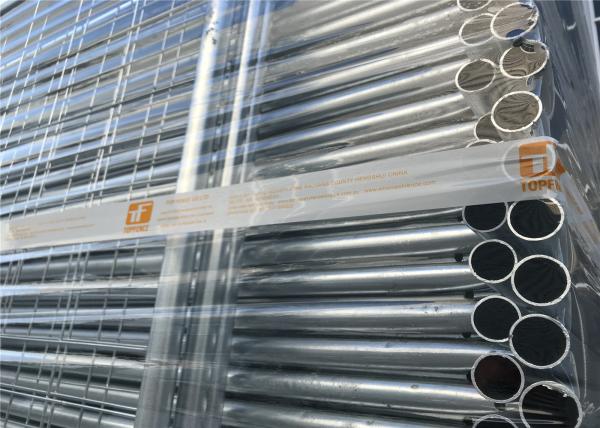

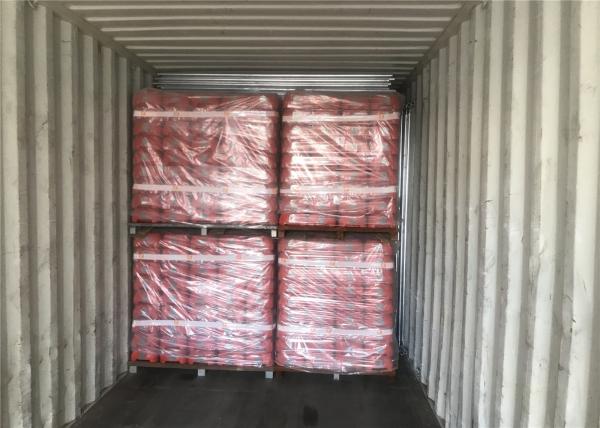

13.Packing and Shipping
1>There is a rubber mat at the bottom of the pallet to avoid the pallet destroyed the panels
2>There are 4 metal corners to keep the pallet more strong.
3>There is a metal plate under the plastic bandage to reduce the pressure of fence panels.
4>There is a wooden plate at the top of fence panel which can protect the fence panels from being crushed by other pallets.
14.Our Service
1>Reply to your inquiry in 24 working hours.
2>Experienced staffs answer all your question in professional and fluent English.
3. Samples are available free.
4>Exclusive and unique solution can be provided to our customer by your own well-trade and professional engineers and staffs.
5>Special discount and protection of sales area provided to your distributor.
6>Do the best cheap wholesale hot dipped galvanized temporary fencing in China.

Recent 3 years was emphasized use in the whole system to withstand high wind, it is a good solution to fix the problem of fencing panels not stand well in extreme wind climates
