8' x 14'Portable chain link construction fence Tubing 1⅝(42mm)x 1.6mm Thick Cross barce Chain mesh 2¼x2¼(57mmx57mm)
8' x 14'Portable chain link construction fence Tubing 1⅝(42mm)x 1.6mm Thick Cross barce Chain mesh 2¼x2¼(57mmx57mm)
8' x 14'Portable chain link construction fence Tubing 1⅝(42mm)x 1.6mm Thick Cross barce Chain mesh 2¼x2¼(57mmx57mm)
8' x 14'Portable chain link construction fence Tubing 1⅝(42mm)x 1.6mm Thick Cross barce Chain mesh 2¼x2¼(57mmx57mm)
8' x 14'Portable chain link construction fence Tubing 1⅝(42mm)x 1.6mm Thick Cross barce Chain mesh 2¼x2¼(57mmx57mm)
8' x 14'Portable chain link construction fence Tubing 1⅝(42mm)x 1.6mm Thick Cross barce Chain mesh 2¼x2¼(57mmx57mm)
8' x 14'Portable chain link construction fence Tubing 1⅝(42mm)x 1.6mm Thick Cross barce Chain mesh 2¼x2¼(57mmx57mm)
8' x 14'Portable chain link construction fence Tubing 1⅝(42mm)x 1.6mm Thick Cross barce Chain mesh 2¼x2¼(57mmx57mm)
8' x 14'Portable chain link construction fence Tubing 1⅝(42mm)x 1.6mm Thick Cross barce Chain mesh 2¼x2¼(57mmx57mm)
8' x 14'Portable chain link construction fence Tubing 1⅝(42mm)x 1.6mm Thick Cross barce Chain mesh 2¼x2¼(57mmx57mm)
8' x 14'Portable chain link construction fence Tubing 1⅝(42mm)x 1.6mm Thick Cross barce Chain mesh 2¼x2¼(57mmx57mm)
8' x 14'Portable chain link construction fence Tubing 1⅝(42mm)x 1.6mm Thick Cross barce Chain mesh 2¼x2¼(57mmx57mm)
Specifications
Brand Name :
LNF-residential fence panels
Model Number :
4'6'8' Height and 2100mm height etc
Certification :
ASTM392 ASTM396
Place of Origin :
American Design China Made
MOQ :
500 liner meter
Price :
8.88$ per liner meter
Payment Terms :
TT30% deposit balance 70% at sight of finished products
Supply Ability :
10000 liner ft
Delivery Time :
7 work days
Packaging Details :
All metal Pallets
Materials :
HDG pipes
Mesh :
60mm x 60mm (2-3/8" )
Design :
American
Name :
Chain mesh temp fence
Size :
6ft x 8ft ,6ft x 10ft ,6ft x 12ft ,6ft x 14ft ,8ft x10ft etc
Diameter :
11.5 ga ,12.5ga etc
Description

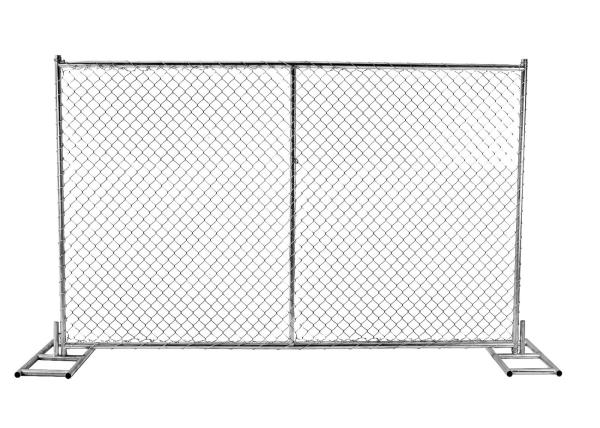

8' x 14'Portable chain link construction fence Tubing 1⅝”(42mm)x 1.6mm Thick Cross brace Chain mesh 2¼”x2¼”(57mmx57mm)

LEADING NEW FENCE co Temporary chain link fence panels to consider in a highest artistic and practical moreover portable and movable was bring to productions, temporary chain link fence covered with a full range of spec enable it can meet customers any idea to give all solutions in construction industries.

Temporary Chain Link Fence /Construction Fence Panels Spec
Tubing 1¼”(32mm) 1⅜”(35mm) 1½”(38mm) 1⅗”(40mm) 1⅝”(42mm) 1⅞”(48mm)and so on
Thickness of Tubing 16GA/ 1.6mm thick as a standard or customized owned size
Chain mesh aperture 2”x2/”(50mm x 50mm) 2¼”x2¼”(57mmx57mm) 2⅜x2⅜(60mmx60mm) 2½”x2½” (63mmx63mm)
Height 4ft/1220mm 6ft/1820mm 8ft/2420mm
Width 12ft /3650mm was wide acceptance by market also 8ft 9ft 10ft 14ft
Panels Size 6ft x 12ft ,8ft x 12ft, 4ft x 12ft and so on
Diameter /Gauge 10ga/3.2mm ,10.5ga/3.00mm ,11ga/2.90mm,11.5ga/2.75mm,12ga /2.60mm 12.5ga/2.5mm 13ga/2.3m

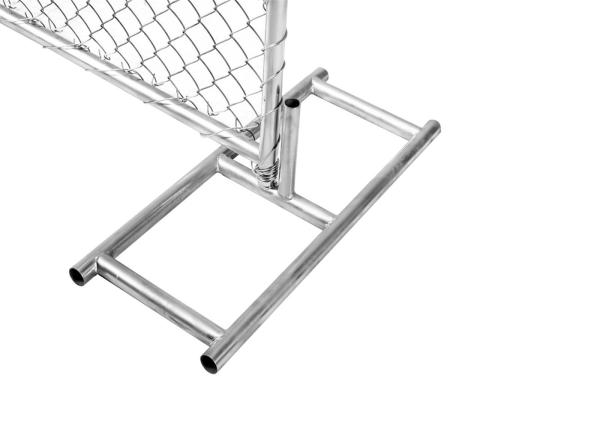

Base Optional 1 36” length x 30” width x 8” Height /914mmx762mmx203mm
Base Optional 2 36” length x 16” width x 8” Height /914mmx406mmx203mm
Base Optional 3 30” length x 18” width x 8” Height /762mm x460mm x203mm
Standard ASTM A392-06
Steel Galvanized Steel Construction
Finish Corrosion-Resistant Zinc Coating
Transport Packing Metal pallet Wrapped with Plastic
HDG zinc thickness 14 microns 100gram/SQM 28 microns 200 gram/SQM 42 microns 300 gram/SQM and 84 microns 600 gram/SQM

Temporary chain link fence panels also available cross, vertical, horizontal brace to meet you any level of budget more details call us 86-18631889222 and all we made temporary fencing are full welding ar circle of tubing to make sure quality is first class

8' x 14'Portable chain link construction fence Tubing 1⅝8' x 14'Portable chain link construction fence Tubing 1⅝8' x 14'Portable chain link construction fence Tubing 1⅝
