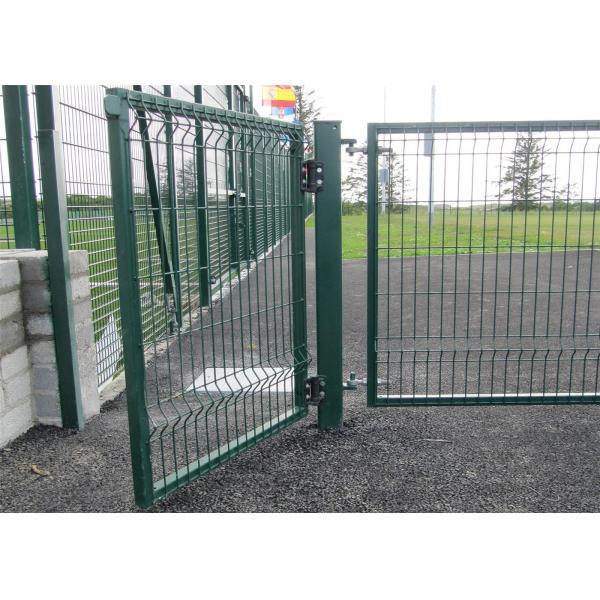

50mm*100mm PVC coated Wire Mesh Fence Panels
50mm*100mm PVC coated Wire Mesh Fence Panels
50mm*100mm PVC coated Wire Mesh Fence Panels
50mm*100mm PVC coated Wire Mesh Fence Panels
50mm*100mm PVC coated Wire Mesh Fence Panels
50mm*100mm PVC coated Wire Mesh Fence Panels
50mm*100mm PVC coated Wire Mesh Fence Panels
50mm*100mm PVC coated Wire Mesh Fence Panels
Specifications
Brand Name :
LNF-PVC coated Wire Mesh Fence
Model Number :
Mesh 50mm*200mm with bended
Certification :
ISO
Place of Origin :
Europea Design China Made
MOQ :
500 liner meter
Price :
8.88$ per liner meter
Payment Terms :
TT30% deposit balance 70% at sight of finished products
Supply Ability :
10000 liner meters
Delivery Time :
7 work days
Packaging Details :
All metal Pallets
Type :
Weld
Payment :
TT
Color :
RAL 6005
Mesh Opening :
50mm x 200mm ,55mm x 200mm ,65mm x 200mm
Panel Size :
1830mm x 2500mm ,2030mm x 2500mm ,1730mm x 2500mm
Description

50mm*100mm PVC Coated Wire Mesh Fence Panels

Welded mesh security fencing is a combination of wires in the horizontal and vertical direction welded at their.junctions to provide a rigid fence. A number of different designs are manufactured from Ø3 mm to Ø5 mm wire.at varying specifications for economy or strength. The mesh size has a dimension of 50 x 200 mm, width 2500 mm panels. Welded mesh panel fencing offers great strength and endurance to bending over the whole surface and we add to 2 to 4 folds in a "V".

Fence Panel Specification:

Zinc/Powder/PVC Coating thickness

Surface Type

 Min Max

Hot dipped galvanized

 450g/m2 650g/m2

Powder coating

 60μm 120μm

PVC Coated

 450μm 650μm

Curved Welded Wire Mesh Fence
Panel Mesh Wire Thickness

Surface

Treatment

Panel

Width

Folds

NOS.

Panel

Height

 Fence Height
Mesh Panel

50*100mm

55*100mm

4.0mm

4.5mm

5.0mm

6.0mm

 Galvanized and Electrostatic polyester powder coated or PVC coated

2.5mm

3.0mm

 4 2000mm 2700mm
5 2300mm 3200mm
6 2600mm 3700mm
V Panel 2 530mm 2700mm
630mm 3200mm
730mm 3700mm

Welded Wire Mesh Panel
Place of Origin

Hebei China

Material

 High-quality low carbon steel wire Q235, Q195, S235J2

Color

 Dark Green, Blue, Dark, White, Red and so on
Surface Treatment

Hot-dipped Galvanized then PVC coating

Electric Galvanized then PVC coating

Hot-dipped Galvanized or Electric Galvanized

Post Specification:

There is the varied type of posts to match the V pressed welded mesh fence.

Fence Post
Post Style Post Size Post height
Rectangle post 40*60*1.2mm;40*60*1.5mm;40*60*2mm 1.63m;1.83m;2.1m
Square Post 40*40*1.2mm;40*40*1.5mm;60*60*2mm;
60*60*2.5mm		 2.13m;2.2m;2.23m;
2.4m
Peach post 50*70mm;70*100mm 2.53m;2.6m
Round post 38mm*1.2mm;40*1.5mm;42*1.5mm;48*2mm 2.63m

Fence Panel Manufacturing Process:

Wire Drawing → Wire Straightening & Wire Cutting → Welding →Folds/Curves Bending→ Electric Galvanizing/Hot-dipped Galvanizing → Parkerizing → PVC Coating /Spraying→ Packing → Loading.

Packing:

Fence Panels:

1>it has rubber mat at the bottom of the pallet to avoid the pallet destroyed the panels

2>it has 4 metal corners to keep the pallet more strong.

3>it has a metal plate under the plastic bandage to reduce the pressure of fence panels.

4>it has a wooden plate at the top of fence panel which can protect the fence panels avoid being crushed by other pallets.

Fence Post:

Each fence post is covered by the cap (save your installing time and cost of labor) then with plastic film, then metal pallet.

Accessories:

Clips and screws are packed by sets, plastic film + carton box.

Advantages:

1. simple grid structure,

2. easy to transport,

3. install no limit of typographic relief,

4. more bending zone.

5. corrosion resistance,

6. anti-aging, acid resistance,

7. polishing

8. durable.

​50mm*100mm PVC coated Wire Mesh Fence Panels50mm*100mm PVC coated Wire Mesh Fence Panels
