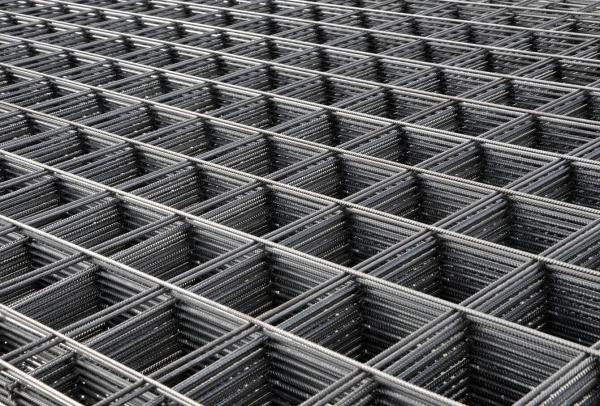

DIN488 GERMAN STANDARD Weld Rebar Reinforced Wire Mesh For Construction Site
DIN488 GERMAN STANDARD Weld Rebar Reinforced Wire Mesh For Construction Site
DIN488 GERMAN STANDARD Weld Rebar Reinforced Wire Mesh For Construction Site
DIN488 GERMAN STANDARD Weld Rebar Reinforced Wire Mesh For Construction Site
DIN488 GERMAN STANDARD Weld Rebar Reinforced Wire Mesh For Construction Site
DIN488 GERMAN STANDARD Weld Rebar Reinforced Wire Mesh For Construction Site
Specifications
Brand Name :
DIN488
Model Number :
Ribbed Square Mesh
Certification :
ISO
Place of Origin :
China
MOQ :
10tons
Price :
350$-650$/ton
Payment Terms :
T/T
Supply Ability :
1000ton per year
Delivery Time :
14 days
Packaging Details :
metal pallet
Materials :
Q235
Size :
2.4mx6.0m
Standard :
Australia 4671
Tensile :
MPA550
Application :
Wall Materials,Protecting Mesh,floor,construction,Heat Insulation Materials
Width :
20cm-200cm,1m,1m or as client's request,100-2200mm,1.2m
Material :
Galvanized Steel Wire,Black Wire Mesh,Stainless Steel Wire,strong carbon steel wire
Color :
blue,orange
Alkali content :
Medium,Alkali Free
Weave type :
Plain Woven,Twill Woven
Yarn type :
C-Glass
Mesh size :
5*5mm,4X4 5X5 4X5 8X8 10X10mesh,4 MM X 4 MM,4mm*4mm 5mm*5mm 8mm*8mm 9mm*9mm
Weight :
160g/m2,75gsm-300gsm,30gsm-180gsm Etc,40g/m2 - 200g/m2,75gsm
Standing temperature :
500,High Temperature,common,220
Length :
customer requirements
Technique :
Welded Mesh
Weave style :
Plain Weave
Type :
Welded Mesh
Wire diameter :
Requirement,1-9mm,5-16mm
Usage :
Construction,Bird sanctuaries,Rabbit cages kennels Enclosures
Product name :
4.5oz Alkali-resistant Fiberglass Reinforcing Mesh For Wall,WELDED WIRE MESH,Factory Alkali-Resistant Fiberglass Mesh fiberglass wire mesh,High quality 1/4''welded wire mesh supplier,galvanized welded wire fence panels in chinese market
Feature :
Alkaline-resistant,Corrosion Resistance,strength,Flexible soft,Durable
Surface treatment :
Hot Dipped Galvanized,Galvanized,Polished,hot dip glvanized; galvanized+PVC Coated,Untreatment
Description

DIN488 GERMAN STANDARD Weld Rebar Reinforced Wire Mesh For Construction Site

Welded mesh reinforcingis a convenient and cost effective alternative to conventional bar reinforcement for the following reasons :
1.The mesh is generally specified and manufactured according to standard references making for easy site identification, quality control and management.
2.The mesh is manufactured in sheets or rolls resulting in a quick and simple site installation process.
Although generally used in surface beds (concrete floor slabs on fill) and concrete roads, mesh can also be used in suspended floor slabs, concrete walls, culverts / drains and composite brick / concrete retaining walls.

Reinforcement mesh is a welded wire fabric, prefabricated steel reinforcement material. It has a rectangular or square reinforcement mesh grid pattern and is produced in flat sheets.

Wire diameter 3mm-16mm
Material Low carbon steel rod
Length 1m-12m or as per customized
Width 0.5m-3m
Usage Road, bridge and tunnel,building
Hole shape: Rectangle,Square
Mesh opening: 100--400MM
Features High tension strength

Product Description

BS44B3 BRITISH STANDARD

Ref NO. Stand Unit

Longitudinal

Wires mm

Cross Wires

mm

Pitch of

wire mm

 No.of sheet per ton

Mass

Kg/m2
A393 sheet 10 10 200@200 15 6.16
A252 sheet 8 8 200@200 22 3.95
A193 sheet 7 7 200@200 29 3.02
A142 sheet 6 6 200@200 40 2.22
A98 sheet 5 5 200@200 57 1.54

AS/NZ 4671:2001 Australia/New Zealand Standard

Ref No. Stand Unit

Longitudial

Wires (mm)

Edge Wires

(mm)

Cross Wires

(mm)

Mass

(Kg)
SL81(F81) Sheet 7.6@100 7.60@100 7.60@100 105
SL102(F102) Sheet 9.5@200 6.75@100 9.50@200 80
SL92(F92) Sheet 8.6@200 6@100 8.60@200 66
SL82(F82) Sheet 7.6@200 5.37@100 7.60@200 52
SL72(F72) Sheet 6.75@200 4.77@100 6.75@200 41
SL62(F62) Sheet 6@200 4.77@100 6@200 33
SL52(F52) Sheet 4.77@200 4.77@100 4.77@200 21


TRENCH MESH

Ref NO. Unit NO. wires Main Wire mm Cross wire mm Mass(kg) Dimensions
L8TM200 Sheet 3 7.6@100 4.0@300 6.8 6 x 0.2M
L8TM300 Sheet 4 7.6@100 4.0@300 9.2 6 x 0.3M
L8TM400 Sheet 5 7.6@100 4.0@300 11.6 6 x 0.4M
L11TM200 Sheet 3 10.7@100 4.75@300 13.3 6 x 0.2M
L11TM300 Sheet 4 10.7@100 4.75@300 17.7 6 x 0.3M
L12TM200 Sheet 3 11.9@100 4.75@300 15.8 6 x 0.2M
L12TM300 Sheet 4 11.9@100 4.75@300 21.2 6 x 0.3M

Packing details:

1. Packed in bundles, pallet or as the customers' request

2. 5-10 days for one 20' container

Shipping:

Samples will be shipped by express service - DHL, EMS, UPS, TNT or Fedex.

1, By counier, like DHL, PUS, Fedex, dtc. Usual 5-7 days;

2, By air to the air port, usual 3-5 days arrives;

3, By sea to the sea port, usual 25-45 days.

Reinforcing mesh is a welded wire fabric, prefabricated steel reinforcement material. It has a rectangular or square grid pattern and is produced in flat sheets.
The fabric is used to provide tensile strength and crack control to structural concrete elements.
Welded Wire Mesh Panel is made of superior quality welded mesh, with flat even surface, firm structure, be used extensively in building, food, agriculture and so on.
Wire Materials: High quality mild steel wire, stainless steel wire, galvanized steel wire, hot-dipped zinc plating iron wire, PVC wire
Process: Galvanized after weaving or galvanized before weaving.
Finish: Electric galvanizing, hot-dip zinc plating, stainless steel or PVC coated.
Wire Diameter: 2mm-14mm
Wire Dia: BWG8-24
Mesh: 5/8"-2"
Width: 0.5-3m
Longth: 10M-50M
General Use: Welded Wire Mesh with excellent corrosion resistance and oxidation resistance, is extensively used as fencing, decoration and machinery protection material in agriculture, construction, transport, mine, sports field, lawn and various industrial fields.
Reinforcement Rebar Welded Wire Mesh Specifaication
Diameter(mm)
Aperture (mm)
Width(m)
Length
Inch
MM
2.0mm-3.2mm
1"
25.4
0.914m-1.83m
The length does not limit
2.0mm-4.5mm
2"
50.8
0.914m-2.75m
2.0mm-6.0mm
3"
70.2
0.914m-2.75m
2.0mm-6.0mm
4"
101.6
0.914m-2.75m
2.0mm-6.0mm
5"
127
0.914m-2.75m
2.0mm-6.0mm
6"
152.4
0.914m-2.75m
2.0mm-6.0mm
7"
177.8
0.914m-2.75m
2.0mm-6.0mm
8"
203.2
0.914m-2.75m
Diameter(mm)
Aperture (mm)
Width(m)
Length
Inch
MM
2.0mm-3.2mm
1"
25.4
0.914m-1.83m
3Feet x 6Feet
4Feet x 8Feet
5Feet x 10Feet
1M X 2M 1.5M X 3M
2M X 4M
Other panel sizes can also be made according to request
The length does not limit
2.0mm-4.5mm
2"
50.8
0.914m-2.75m
2.0mm-6.0mm
3"
70.2
0.914m-2.75m
2.0mm-6.0mm
4"
101.6
0.914m-2.75m
2.0mm-6.0mm
5"
127
0.914m-2.75m
2.0mm-6.0mm
6"
152.4
0.914m-2.75m
2.0mm-6.0mm
7"
177.8
0.914m-2.75m
2.0mm-6.0mm
8"
203.2
0.914m-2.75m
Technical Info: Wire diameter for welded steel bar panel ranges from 5mm to 16mm. Welded bar panel opening: 75mm to 300mm. Panel length: 100cm to 1400cm. Panel width: 100cm to 300cm.
SL52,SL62/SL72/SL82/SL92/SL102 reinforcing mesh And so on
Reinforcement Rebar Welded Wire Mesh Features
Steel bar grating costs less time and labor in work. It saves about 50 to 70 percent work time compared with common binding wire mesh. The use of bar grating can also strengthen the concrete parts to reduce surface breaking ratio. Welded bar grating for reinforcement is especially suitable for big area concrete engineering. Using of welded bar reinforcement can save about 10 percent of the total cost of the project.

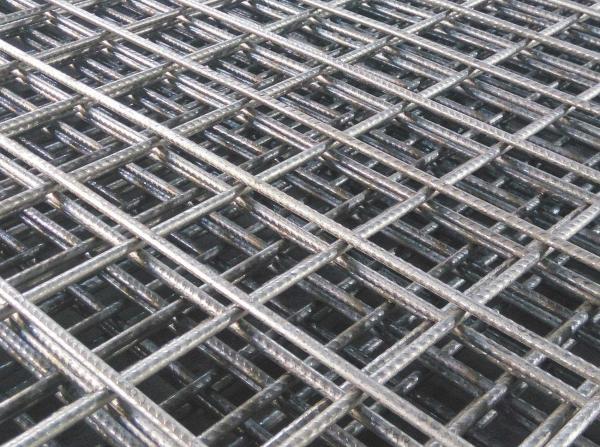

1. The steel bar has a ribbed profile surface. This ribbed profile creates improves bonding to concrete, which when compared to smooth wire profiles, minimizes any concrete cracking that may occur as a result of concrete shrinkage.
2. Compared with common binding wire mesh, wire mesh reinforcement can save labor and time. And the reinforcing mesh is especially suitable for big area concrete engineering.
Reinforcement Rebar Welded Wire Mesh Applications
Steel bar welded grating is well received and popularly used as a kind of new, efficient and excellent quality concrete structure steel materials in various industrial and civil buildings. It is mainly used in making of floors, ceilings, wall body, concrete road, bridge surface, airport, tunnel lining, concrete piping, etc.
1. Concrete footpaths
2. Precast Panel construction
3. Construction reinforcement
4. Residential slabs and footings
5. Industrial and commercial ground slabs
6. The ground for tunnel, bridge, highway, airport and wharf, also in construction of wall body
We offer heavy type welded wire mesh panels including steel bar welded wire mesh. This company specializes in producing steel bar welded mesh for reinforcement as top manufacturer of welded bar grating in North China. Our products have high precision, small difference and good quality. Steel bar welded grating is a kind of mesh type bar grating with the vertical and horizontal bars respectively welded together to a certain pitch and arranged at right angles to each other.
AS/NZS 4671:2001 Australia/New Zealand Standard (SIZE:6000mmX2400mm)
Ref No.
Std Unit
Longitudinal
Wires mm
Edge Wires mm
Cross Wires mm
Mass Kg
SL81 (F81)
Sheet
7.6 @ 100
7.60 @ 100
7.60 @ 100
105
SL102 (F102)
Sheet
9.5 @ 200
6.75 @ 100
9.50 @ 200
80
SL92 (F92)
Sheet
8.6 @ 200
6 @ 100
8.60 @ 200
66
SL82 (F82)
Sheet
7.6 @ 200
5.37 @ 100
7.60 @ 200
52
SL72 (F72)
Sheet
6.75 @ 200
4.77 @ 100
6.75 @ 200
41
SL62 (F62)
Sheet
6 @ 200
4.77 @ 100
6 @ 200
33
SL52 (F52)
Sheet
4.77 @ 200
4.77 @ 100
4.77 @ 200
21
Packaging & Shipping
1.Steel wire tied up bundles; 2.wood or iron pallets 3.band iron frame pallets

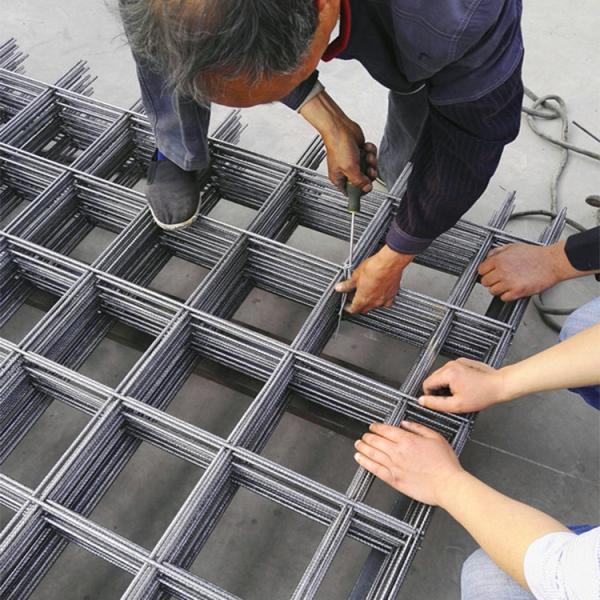

Our workshop
REF
PITCH OF WIRES
DIAMETER OF WIRE
CROSS SECTION AREA
DIMENSION OF MESH
ARER OF MESH
MASS
WEIGHT OF MESH
NO.
spacing mm
dia mm
dia mm2
sheet mm
SQm
weight
Mesh Weight
item
long
Cross
long
Cross
long
Cross
long
Cross
MM2
kg/m2
kg/pcs
Q131
150
150
5.0
5.0
131
131
2150
5000
10.75
2.091
22.476
Q188
150
150
6.0
6.0
188
188
2150
5000
10.75
3.014
32.401
Q221
150
150
6.5/5
6.5
221
221
2150
5000
10.75
3.136
33.707
Q295
150
150
7.5/5.5
7.5
295
295
2150
5000
10.75
4.116
44.245
Q378
150
150
8.5/6
8.5
378
378
2150
6000
12.90
5.167
66.659
Q443
150
100
6.5d/6.5
7.5
443
442
2150
6000
12.90
6.073
78.337
Q513
150
100
7d/7
8.0
513
503
2150
6000
12.90
6.974
89.970
Q670
150
100
8d/8
9.0
670
636
2150
6000
12.90
8.949
115.438
R378
150
250
8.5/6
5.0
378
78
2150
6000
12.90
3.306
42.644
R443
150
250
6.5d/6.5
5.5
443
95
2150
6000
12.90
3.892
50.209
R513
150
250
7d/7
6.0
513
113
2150
6000
12.90
4.540
58.576
DIN488 GERMAN STANDARD Weld Rebar Reinforced Wire Mesh For Construction SiteDIN488 GERMAN STANDARD Weld Rebar Reinforced Wire Mesh For Construction SiteDIN488 GERMAN STANDARD Weld Rebar Reinforced Wire Mesh For Construction Site
