Black PE powder Coated 65mm*65mm Chain Link Mesh for Australia 4.00mm wire
Black PE powder Coated 65mm*65mm Chain Link Mesh for Australia 4.00mm wire
Black PE powder Coated 65mm*65mm Chain Link Mesh for Australia 4.00mm wire
Black PE powder Coated 65mm*65mm Chain Link Mesh for Australia 4.00mm wire
Black PE powder Coated 65mm*65mm Chain Link Mesh for Australia 4.00mm wire
Black PE powder Coated 65mm*65mm Chain Link Mesh for Australia 4.00mm wire
Black PE powder Coated 65mm*65mm Chain Link Mesh for Australia 4.00mm wire
Black PE powder Coated 65mm*65mm Chain Link Mesh for Australia 4.00mm wire
Specifications
Brand Name :
LNF-Chain link Fence
Model Number :
2"/2.5"/1"/3"
Certification :
ASTM392 ASTM396
Place of Origin :
American Design China Made
MOQ :
1700 liner ft
Price :
2.88$/SQM
Payment Terms :
TT30% deposit balance 70% at sight of finished products
Supply Ability :
10000 liner meters
Delivery Time :
7 work days
Packaging Details :
All metal Pallets
Materials :
Q235 steel
Color :
Any Ral Color
Treatment :
Hot Dipped Glavanized,Powder Coated
Mesh Opening :
65mm x 65mm 50mm x 50mm ,55mm x 55mm ,75mm x 75mm ,60mm x 60mm ,80mm x 80mm,40mm x 40mm ,30mm x 30mm
Diameter :
1.5mm to 5.00mm
Type :
Woven Mesh
Warranty :
5 -25 years depand on the treatment
Main Market :
Europea ,Middle East ,USA ,AU etc

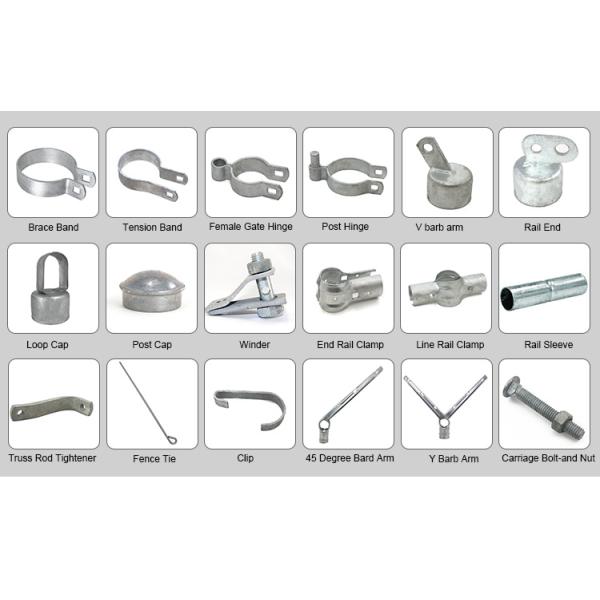

Accessoires :
Tension Band ,Bar ,Steel Plate and Post Caps etc
Customized :
Available
Feature :
Diamond Mesh
Application :
Commerical ,Industries And Security
Trade Mark :
N/M Cyclone Fence
Sample :
Free but pay freight cost
Nickname :
CYCLONE FENCE,wire netting, wire-mesh fence, chain-wire fence, cyclone fence, hurricane fence, or diamond-mesh fence
Description

Black PE powder Coated 65mm*65mm Chain Link Mesh for Australia 4.00mm wire

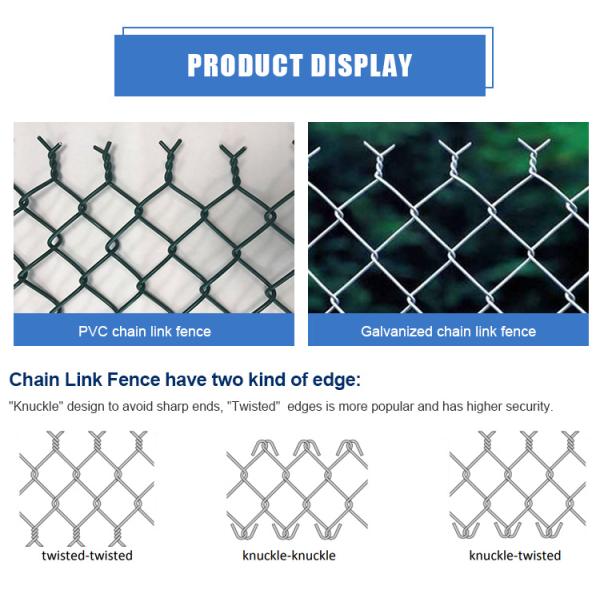

Chain link fence, also called Cyclone fence or diamond mesh fence, is made from steel wire fabrics. With a variety of wire gauges and mesh size, chain link fence can be designed according to different applications. Moreover, it has the features of low cost, transparency, and easy installation. Chain link mesh rolls normally come with line wire and knuckled edges. Barbed edges are more popular and with higher security.
Mesh Wire Thickness Surface Treatment Panel Width Height
40X40mm
50X50mm
60X60mm
65X65mm
75X75mm
2.0mm
-
4.8mm
Galvanized and
PVC coated
Or
Hot dipped galvanized
10m
15m
18m
20m
25m
30m
 1200mm
1500mm
1800mm
2000mm
2100mm
2400mm
2500mm
3000mm
3600mm
Profile Wall Thickness Surface Treatment Length Rain hat
Φ60
1.50mm
-
5.20mm
Galvanized and
Electrostatic polyester powder
Coated or hot dipped galvanized
 On the basis of panel height Metal
Φ75

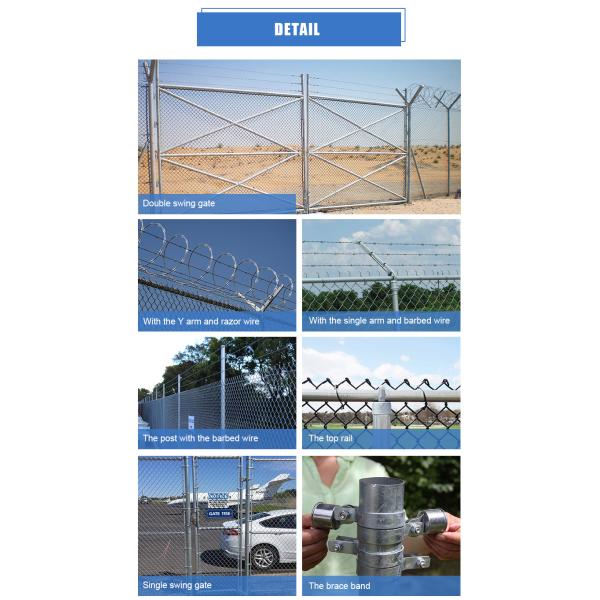

Note: Normally single branch crack or V type crack will be installed at top of the post, barbed wire and razor wire will be fixed at top of the fence to enhance the secure class.
DIMENSIONS OF GALVANIZED CAGE WIRE
Dimension 2.00mm 2.20mm 2.50mm 2.70mm 3.00mm 3.50mm 4.00mm
30×30mm - - + + + - -
40×40mm - - + + + + -
50×50mm - + + + + + +
60×60mm - - + + + + +
70×70mm - - + + + + +
75×75mm - - + + + +
+
Mesh opening
1''
1.5''
2''

2-1/4"
2-3/8''
2-1/2"
2-5/8"
3''
4''
25mm
40mm
50mm
57mm
60mm
65mm
70mm
75mm
100mm
Wire diameter
18Ga - 13Ga
16Ga - 8Ga
14Ga-6Ga
1.2mm-2.4mm
1.6mm - 4.2mm
2.0mm-5.00mm
Width of per roll
0.5M - 6.0M
Length of per roll
50M - 100M(or more)
Round post & rail diameter
32mm, 42mm,48mm,60mm,76mm,89mm
Round post & rail thickness
0.8-5.0mm
Surface treatment
Hot dipped galvanized or PVC coated
Materials and specification can be made according to customer detailed requirements
Black PE powder Coated 65mm*65mm Chain Link Mesh for Australia 4.00mm wire
Black PE powder Coated 65mm*65mm Chain Link Mesh for Australia 4.00mm wire
Black PE powder Coated 65mm*65mm Chain Link Mesh for Australia 4.00mm wire
Black PE powder Coated 65mm*65mm Chain Link Mesh for Australia 4.00mm wire
Black PE powder Coated 65mm*65mm Chain Link Mesh for Australia 4.00mm wire
Black PE powder Coated 65mm*65mm Chain Link Mesh for Australia 4.00mm wire

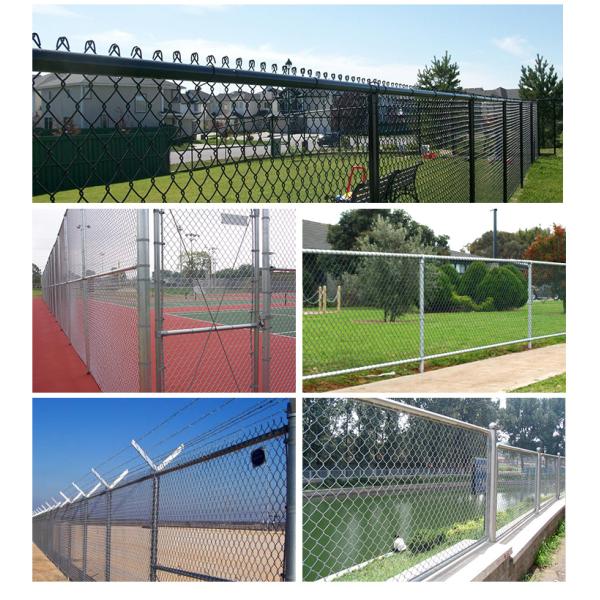

China link fence widely used in school playgrounds,so it's well known as Playground fence,Sport fence. Chain link fence is extensively used as fence for school,playground,garden,high-way,railway port,residence,etc.Also can be used for breeding animals.Children's Playgrounds,Playing Fields,Recreational Grounds.
Black PE powder Coated 65mm*65mm Chain Link Mesh for Australia 4.00mm wire
Black PE powder Coated 65mm*65mm Chain Link Mesh for Australia 4.00mm wireBlack PE powder Coated 65mm*65mm Chain Link Mesh for Australia 4.00mm wire
