1/2 flexible stainless steel wire rope mesh net 12.70mm mesh cable mesh
1/2 flexible stainless steel wire rope mesh net 12.70mm mesh cable mesh
1/2 flexible stainless steel wire rope mesh net 12.70mm mesh cable mesh
1/2 flexible stainless steel wire rope mesh net 12.70mm mesh cable mesh
Specifications
Brand Name :
LNF-ROPE MESH FENCE
Model Number :
Rope construction： 7 x 7 and 7 x 19 are the main used, and 1x7 and 1 x 19 are also supplied.
Certification :
ISO
Place of Origin :
China
MOQ :
50M2
Price :
16.78$/M2
Payment Terms :
Western Union, T/T, MoneyGram
Supply Ability :
10000M2/per Week
Delivery Time :
7 work days
Packaging Details :
Metal Pallet
Material :
Stainless Steel Wire,316,316L stainless steel,304L,Galvanized Steel Wire
Application :
Protecting Mesh,Filters,Screen,Woven Wire Mesh,decorative cable mesh
Type :
Rope Mesh,Weave Wire Mesh,Reinforced Mesh,knotted mesh and ferrule mesh,stainless steel decorative wire mesh
Weave style :
Plain Weave,Dutch Weave,Twill,handmade,Dutch-Twill Weave
Technique :
Woven,Welded Mesh,Weave
Feature :
Corrosion Resistance,Flexible,durable,high-strength,Rust-Resistance
Wire diameter :
Requirement,0.019mm to 2.32mm,0.02mm-0.5mm,1x7 7x7 7x19 or customized
Usage :
filter,Protection,decorative wire mesh,aviary mesh
Hole shape :
Diamond,Square Hole,Rectangular,as per requirement,round hole
Color :
Silver,requirement,gold,blue or as your request,Red/yellow/green/blue;customized
Product name :
SS 304 decorative wire mesh,smoking pipe filters,X-tend Kontted Type Stainless Steel Inox Cable Wire Rope Mesh,304 316 316L stainless steel bird cage wire rope/aviary mesh,Stainless Steel Wire Rope Net/Stainless Steel Cable Mesh for Bird
Width :
0.1m-8m,2-4m,Cunstomized,0.914m~1.83m,1.5m
Length :
30m,2-4m,30m per roll or as required,30m/roll 50m/roll
Surface treatment :
Hot Dipped Galvanized,black/ pre-gal/hot dip gal,Mill.Coloer Finish
Sample :
Available,Free
Mesh size :
8-500 mesh,20mm-160mm,as your requirement
Size :
3"*3",4"*4",1"*1",1.5"*1.5",Customized
Advantage :
Superior wire,no noise,corrosion resistance,High strength,Wear-resisting
Aperture :
25-100mm,75-2800 Micron,1" 2"x2" 3"x3" 4 or customized
Description

1/2" flexible stainless steel wire rope mesh net provides the ideal aesthetic and functional alternative to fencing; stainless steelz00 mesh is a cost-ft safety. certified, weather-resistant and highly durable material that requires virtually no maintenance. When architects and engineers plan new animal enclosures, zoo mesh allows designs to be built to virtually any shape and size as the size and resilience of the mesh structure can be adjusted to suit specific requirements simply by choosing wire ropes of the appropriate diameter.

Details

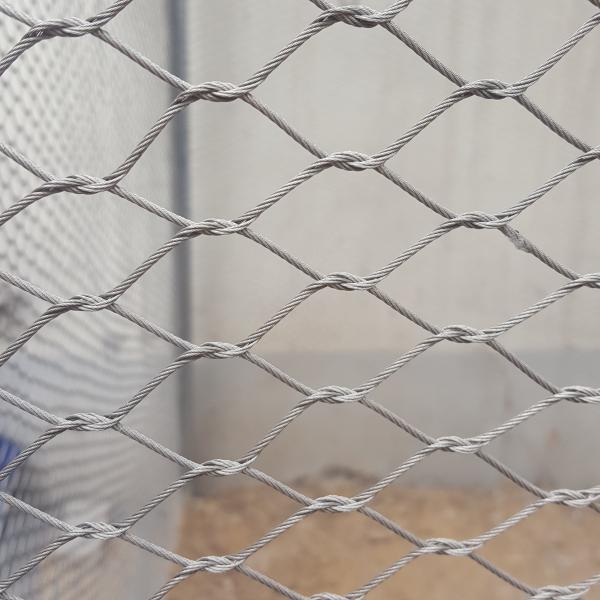

stainless steel wire rope mesh net is a mesh structure object made of high-quality 304/304L/316/316L stainless steel wire rope.

Common specifications: mesh 3x3, 4x4, 5x5, 6x6, 7x7, 8x8, etc. But there is no specific specification because it can weave mesh of any size. Designers and users have loved this.

We can provide references according to customer requirements. Its overall mesh width and length can be made in any size.

There are commonly used wire rope structures: 7x7 and 7x19 high-quality stainless steel wire rope.

Common rope diameter: 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0 Common materials are: 304, 304L, 316, 316L stainless steel wire rope.

1/2 1/2

Application 1/2" flexible stainless steel wire rope mesh net

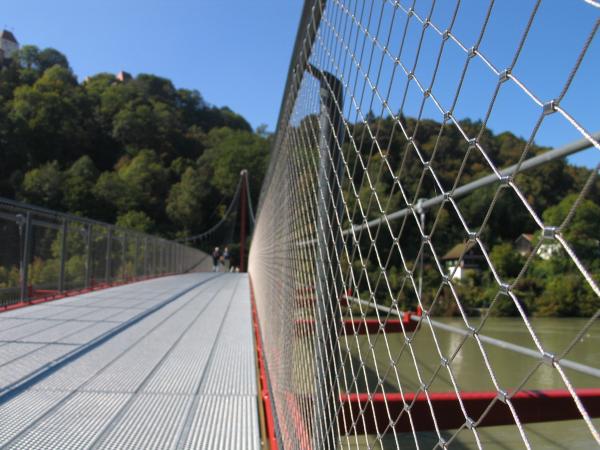

>Zoo mesh, safari parks, marine parks, and similar environments.
>Animal cages, bird nets, animal fences, garden decorations and construction and renovation.
>Stainless steel rope mesh is also suitable for playgrounds, gymnasiums, acrobatics, home decoration, architectural decoration, and many other fields.

Specification

Product ID Wire cable diameter
Inch		 Wire cable diameter
mm		 Mesh hole size
Inch		 Mesh hole size
mm		 Weight (kg/m2)
BM32120 1/8" 3.18 120mm x 120mm 120mm x 120mm 0.85
BM32102 1/8" 3.18 4" x 4" 102mm x 102mm 0.96
BM3290 1/8" 3.18 90mm x 90mm 90mm x 90mm 1.10
BM3280 1/8" 3.18 80mm x 80mm 80mm x 80mm 1.30
BM3276 1/8" 3.18 3" x 3" 76mm x 76mm 1.40
BM3260 1/8" 3.18 60mm x 60mm 60mm x 60mm 1.65
BM3250 1/8" 3.18 2" x 2" 51mm x 51mm 2.10
BM30120 3.0mm 3.0 120mm x 120mm 120mm x 120mm 0.75
BM30102-1/2" 1/2" flexible stainless steel wire rope mesh net 3.0mm 3.0 4" x 4" 102mm x 102mm 0.84
BM3090 3.0mm 3.0 90mm x 90mm 90mm x 90mm 0.97
BM3080 3.0mm 3.0 80mm x 80mm 80mm x 80mm 1.14
BM3076 3.0mm 3.0 3" x 3" 76mm x 76mm 1.23
BM3060 3.0mm 3.0 60mm x 60mm 60mm x 60mm 1.45
BM3050 3.0mm 3.0 2" x 2" 51mm x 51mm 1.85
BM24120 3/32" 2.38 120mm x 120mm 120mm x 120mm 0.45
BM24102 3/32" 2.38 4" x 4" 102mm x 102mm 0.54
BM2490 3/32" 2.38 90mm x 90mm 90mm x 90mm 0.60
BM2480 3/32" 2.38 80mm x 80mm 80mm x 80mm 0.68
BM2476- 1/2" flexible stainless steel wire rope mesh net 3/32" 2.38 3" x 3" 76mm x 76mm 0.72
BM2460 3/32" 2.38 60mm x 60mm 60mm x 60mm 0.87
BM2450 3/32" 2.38 2" x 2" 51mm x 51mm 1.07
BM20120 5/64" 2.00 120mm x 120mm 120mm x 120mm 0.30
BM20102 5/64" 2.00 4" x 4" 102mm x 102mm 0.40
BM2090 5/64" 2.00 90mm x 90mm 90mm x 90mm 0.44
BM2080 5/64" 2.00 80mm x 80mm 80mm x 80mm 0.48
BM2076 5/64" 2.00 3" x 3' 76mm x 76mm 0.50
BM2060 5/64" 2.00 60mm x 60mm 60mm x 60mm 0.76
BM2050 5/64" 2.00 2" x 2" 51mm x 51mm 0.80
BM2040-1/2" 1/2" flexible stainless steel wire rope mesh net 5/64" 2.00 40mm x 40mm 40mm x 40mm 1.02
BM2038 5/64" 2.00 1.5" x 1.5" 38mm x 38mm 1.10
BM16120 1/16" 1.60 120mm x 120mm 120mm x 120mm 0.2
BM16102 1/16" 1.60 4" x 4" 102mm x 102mm 0.26
BM1690 1/16" 1.60 90mm x 90mm 90mm x 90mm 0.30
BM1680-1/2" 1/2" flexible stainless steel wire rope mesh net 1/16" 1.60 80mm x 80mm 80mm x 80mm 0.35
BM1676 1/16" 1.60 3" x 3" 76mm x 76mm 0.37
BM1660 1/16" 1.60 60mm x 60mm 60mm x 60mm 0.45
BM1650 1/16" 1.60 2" x 2" 51mm x 51mm 0.50
BM1640 1/16" 1.60 40mm x 40mm 40mm x 40mm 0.62
BM1638 1/16" 1.60 1.5" x 1.5" 38mm x 38mm 0.65
BM1630 1/16" 1.60 30mm x 30mm 30mm x 30mm 0.90
BM1625 1/16" 1.60 1" x 1" 25.4mm x 25.4mm 1.10
BM12120- 1/2" flexible stainless steel wire rope mesh net 3/64" 1.20 120mm x 120mm 120mm x 120mm 0.12
BM12102 3/64" 1.20 4" x 4" 102mm x 102mm 0.15
BM1290 3/64" 1.20 90mm x 90mm 90mm x 90mm 0.17
BM1280 3/64" 1.20 80mm x 80mm 80mm x 80mm 0.18
BM1276 3/64" 1.20 3" x 3" 76mm x 76mm 0.19
BM1260 3/64" 1.20 60mm x 60mm 60mm x 60mm 0.22
BM1250 3/64" 1.20 2" x 2" 51mm x 51mm 0.25
BM1240 3/64" 1.20 40mm x 40mm 40mm x 40mm 0.38
BM1238 3/64" 1.20 1.5" x 1.5" 38mm x 38mm 0.40
BM1230 3/64" 1.20 30mm x 30mm 30mm x 30mm 0.45
BM1225 3/64" 1.20 1" x 1" 25.4mm x 25.4mm 0.55
BM1220 3/64" 1.20 4/5" x 4/5" 20mm x 20mm 0.73
BM10012-1/2" flexible stainless steel wire rope mesh net 1.00 1.00 12.7mm x 12.7mm 12.7mm x 12.7mm 0.80
