Specifications
Brand Name :
LNF-358 Fencing
Model Number :
Clearvu 358 Wire Mesh Fence
Certification :
ISO
Place of Origin :
China
MOQ :
100 liner meter
Price :
16.88$-28.66$ per liner meter
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
10000 liner meter per month
Delivery Time :
14 work days
Packaging Details :
Pallet
Type :
Fencing,Trellis & Gates,Welded Mesh
Feature :
Easily Assembled,Eco Friendly,Waterproof,Renewable Sources,Rodent Proof
Metal type :
Steel,Iron,High quality carbon steel wire,Low carbon steel
Frame material :
Metal
Frame finishing :
Powder Coated,PVC Coated,Hot dipped galvanized,galvanized
Pressure treated wood type :
Heat Treated,Nature,Chemical
Product name :
358 Welded Mesh Fence,factory galvanized steel wire welded panel 358 fence,prison 358 fence,factory direct supply cyclone wire fence price philippines
Color :
green,blue,Black,yellow
Material :
Galvanized Iron Wire,Low-Carbon Iron Wire,Low Carbon Steel Wire,High quality carbon steel wire,PVC coated wire
Surface treatment :
Galvanized+PVC Coated,Hot Dipped Galvanized,PVC Coated,PVCcoated,Galvanized/Powder Coated/PVC coated
Application :
Fence Mesh,Construction Wire Mesh,Prison,Protecting Mesh,District guardrail
Wire diameter :
4.0mm,etc
Height :
1.8m,3m,2.4m,2m,3.0m
Width :
0.5M----3.0M
Packing :
Pallet,Plastic film& wooden pallet,Skecth film paper and pallet,In Rolls or Sheets
Wire gauge :
3mm,3mm - 6mm,2.0mm,3-5mm,3.0-4.0mm
Usage :
Protection,Anti-climbing,house,Prison wire mesh fence
Hole shape :
Square,rectangle
Length :
2.0m,Customized
Description

High Security Prison Anti -Cut Wire Fencing Panels Anti-Climb Security Resisdential Fence

358 anti climb fence, known as "prison mesh", is a high security anti-climbing and anti-cutting welded wire fence. Galvanized wire, commonly, is welded into fencing panels with extremely fine opening holes, which cannot be penetrated by hand fingers or cut by bolt cutters. Therefore it is highly recommended for high security needed area and private living field.
The name—358 high security fence comes from the size of panel mesh opening and wire diameter: 3'' × 0.5'' × 8 gauge, approximately equals to: 76.2 mm × 12.7 mm × 4 mm. As a welded wire fence, galvanized after welded and then PVC coated is recommended for a sturdy structure and corrosion resistance ability.
High Security Prison Anti -Cut Wire Fencing Panels Anti-Climb Security Resisdential Fence
358ACF-01: Black PVC coated 358 anti-climb fence is more in harmony with residential and commercial places.
High Security Prison Anti -Cut Wire Fencing Panels Anti-Climb Security Resisdential Fence
358ACF-02: Together with razor wire, 358 anti-climbing fence deters intruders and provides a high degree of security.
358 anti climb fence features:

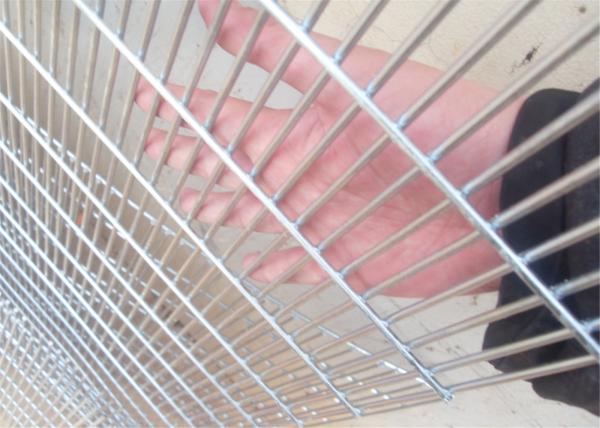

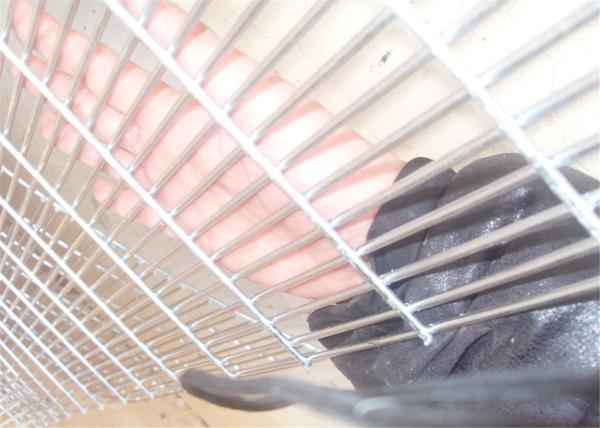

  • Anti-climb: The opening holes are so small that even fingers cannot penetrate in.
  • Anti-cut: Bolt cutter and wire cutter cannot make itself through the narrow holes, therefore the fence won't be destroyed.
  • Strong welded point: The welded joints are fixed firmly, won't split by natural human and nature force.
  • Smooth surface: The panel finish surface is well-proportioned for a decorative effect.
  • Durable: The panel sheet is galvanized uniformly and PVC coated, which ensures a long service life.
358 anti climb fence application:
358 anti climb fence is a high secure fence, suitable places include:
  • Prison.
  • Military sites.
  • Detention center.
  • Psychiatric hospital.
  • Airport.
  • Bridge.
  • Sub-station.
  • Shipping port.
  • Warehouse.
  • Power plant.
  • Laboratory.
  • Petroleum and chemical facilities guarding.
  • Industrial and commercial property, etc.
Specification:
  • 358 mesh panel size
    • Mesh pattern: 76.2 mm (3") × 12.7 mm (0.5").
    • Wire diameter: 4 mm horizontal wire and vertical Wire.
    • Weld strength: range 540–690 N/m2.
    • Surface treatment: 358 mesh fence panels made from galfan wire, then PVC powder coating (Min. 100 micron), or PVC powder painting. It provides additional protection and increases the potential life span.
    • Colors: green (RAL 6005), black (RAL 9005). All RAL color is available.
    • Accessories: posts, post base feet, barbed wire, slotted clamp bars, post cap, bracket, bolts, spacer, nuts, washer, clips, etc.
  • Fence posts
    • Material: high grade steel for maximum strength and rigidity.
    • Post section: 60 × 60 mm, 80 × 80 mm, 100 × 100 mm, 120 × 120 mm.
    • Post Plate thickness: 2.5 mm or 3.0 mm, 4.0 mm, 5.0 mm.
    • Finish: inside and outside galvanized (Min. 275 g/m2), subsequently covered with a polymer powder (Min. 60 micron ).
    • Colors: same as panel.
    • Post cap: metal caps or plastic cap.
    • Metal clips and clamps are hot dip galvanised then powder coating in green or black color.
Table-1: 358 mesh fence specifications
Product ID
Fence height (m)
Panel size (height × width) (mm)
Fence post (height × size × thickness) (mm)
Clamp bar (height × width × thick) (mm)
Inter or corner clamp no (pcs)
358F01
2.0
2007 × 2515
2700 × 60 × 60 × 2.5
2007 × 60 × 5.00
7 or 14
358F02
2.4
2400 × 2515
3100 × 60 × 60 × 2.5
2400 × 60 × 5.00
9 or 18
358F03
3.0
2997 × 2515
3800 × 80 × 80 × 2.5
2997 × 80 × 6.00
11 or 22
358F04
3.3
3302 × 2515
4200 × 80 × 80 × 2.5
3302 × 80 × 6.00
12 or 24
358F05
3.6
3607 × 2515
4500 × 100 × 100 × 3.0
3607 × 100 × 7.00
13 or 26
358F06
4.2
4204 × 2515
5200 × 100 × 100 × 4.0
4204 × 100 × 8.00
15 or 30
358F07
4.5
4496 × 2515
5500 × 100 × 100 × 5.0
4496 × 100 × 8.00
16 or 32
358F08
5.2
5207 × 2515
6200 × 120 × 120 × 5.0
5207 × 100 × 8.00
18 or 36
Note:
  • Our fence wire diameter varies from 2–6.5 mm, mesh opening could be 75 mm × 12.5 mm, 100 mm × 15 mm, other opening size available under request.
  • Maximum width is 2.515 m. 2.0 m and 2.2 m is also available under request.
  • Fence height varies from 2.0 m to 5.2 m.
  • 3 m height fence is usually used in school, residential and recreational sites, 5.2 m height used in prison and military establishments.
  • Our 358 high security mesh fencing could be manufactured with double layers of vertical wires in order to satisfy the highest level of security requirement.
High Security Prison Anti -Cut Wire Fencing Panels Anti-Climb Security Resisdential Fence
358ACF-03: Bolt cutter cannot even stretch into small hole of 358 fence, no mention of cutting.
High Security Prison Anti -Cut Wire Fencing Panels Anti-Climb Security Resisdential Fence
358ACF-04: The wire diameter and mesh opening follow strictly the standard size.
Installation:
  • Panels could be overlapped 75 mm minimum at each post and fastened with a slotted clamp bar and bolts. (see picture 358FI-05 below)
  • Panels could be bind together without overlap but by brackets. (see picture 358FI-06 below)
  • Spacing between brackets in post would better be 0.3 m.
  • A full installation guide is available under request.
High Security Prison Anti -Cut Wire Fencing Panels Anti-Climb Security Resisdential Fence
358ACF-05: Two panels were installed into a narrow post with 75 mm overlap for a solid structure.
High Security Prison Anti -Cut Wire Fencing Panels Anti-Climb Security Resisdential Fence
358ACF-06: Two panels were installed into a wide post with brackets without overlap but still firm.
358 mesh fence panels packaging:
358 mesh fence panels packed in wooden pallets and enveloped by plastic film then wrapped by tape firmly for the security of storage and transportation.
High Security Prison Anti -Cut Wire Fencing Panels Anti-Climb Security Resisdential Fence
358ACF-07: 358 mesh fence panels packed in pallets and then enveloped by plastic film for transportation and storage.
358 Prison Mesh Fence System has been developed for applications where security andlongevity are paramount concerns. The system is very durable, near-impossible to climb nor breakthrough (without cutting tools), modular, low maintenance, and blends into its environment.

Fence Panels: 2515 mm wide, flat, rigid, fully-welded mesh panels, constructed from 4 mm diameter

steel vertical wires, set 75 mm apart welded to 4 mm dia. steel horizontal wires set 12.5
mm apart, giving its characteristic 75 x 12.5 x 4 mm mesh configuration. In imperial
measurements the mesh is 3 inch x 0.5 inch x 8 gauge, hence its name “358”’.
Fence Posts: Rectangular Hollow Section (RHS) steel sections, set into concrete foundations at 2.44
metre intervals.

Clamp-strips: 40 x 5 mm steel Flats (one per panel height), slotted at 300 mm intervals for galvanised
security bolts.

Finish: All manufactured steelwork Galvanised and Polyester Powder Coated.
358 Prison Mesh Fence
SYSTEMS BENEFITS & CHARACTERISTICS:
• Because of its durability and security value, 358 mesh is commonly used to surround prisons and
secure units – hence its nickname Prison Mesh.
• Largely maintenance free: galvanised and a polyester powder coated, with galvanised fittings.
• Comprise rigid panels that will not sag or deform (during normal usage).
• Present no sharp protrusions utilising flat clamp-strips and dome-headed security fixings.
• They are designed to avoid head and finger traps with covered panel joints and a tight mesh
aperture.
• Are ‘anti-vandal’ in their design - utilising security bolts (with snap off nuts or hidden inserts), and a
dense mesh which cannot easily be cut/damaged, and are near-impossible to climb.
• In the event of vandalism/damage, they are modular, i.e. individual component parts can be easily
replaced.
• Aesthetically pleasing and blends into its environment (available in a wide colour range).
• Have excellent see-through qualities, reducing shadows and blind spots, and making it easy to
monitor use and/or abuse.
• Due to its rigidity and durability 358 Prison Mesh Fence is often used as a rebound surface for sports pitches.
358 Mesh Fence Perfectly suited to high security applications, providing excellent see through visibility extensively used with CCTV. This high performance system provides the ultimate protection against anti-climb & cut through. Suitable to be used on schools, retail parks, business parks, utility sites, airports, secure units. Detection systems are fully compatible with 358 Mesh Fence
358 Mesh Fence is designed for demanding applications. The system can have multiple additional features to aid additional security including detection and electrified fencing
Panels
Posts
Total number of fixings
Inters
Corners
Fence height mtrs
Panel size
H & W
Wire diameter mm
Clamp bar 40 x 5 mm
Post centres mm
Hanging bracket
Hanging bracket
2
2000 x 2515
4
2
2480
8
16
2.4
2404 x 2515
4
2
2480
9
18
2.7
2430 x 2515
4
2
2480
9
18
3
3000 x 2515
4
2
2480
9
18
3.3
3300 x 2515
4
2
2480
9
18
3.6
3600 x 2515
4
2
2480
10
20
4
4000 x 2515
4
2
2480
11
22
5
5000 x 2515
4
2
2480
12
24
Please note: Hole centres on fixing detail can be reduced from 304mm to 152mm for additional security. Post section is determined by the height of the fence.
358 Mesh Fence Heights
1.8 metres, 2.0 metres, 2.4 metres, 2.7 metres and 3.0 metres.
358 Mesh Fence size
75mm x 12.5mm produced with 4.00mm +/- 0.10mm wire.
358 Mesh Fence Panels
Manufactured using 4mm wire welded at each intersection creating a strong and durable panel, the mesh aperture consists of a 76.2 x 12.7mm mesh spacing providing ultimate protection against climbing and cut-through with excellent see through visibility!
358 Mesh Post system
Standard posts are manufactured from 60 x 60 up to 2.4m high, rolled hollow section and include stepping provisions to suit on-site conditions. All posts include bolt-through or threaded inserts. Specially designed PROFIX Securing clamp system is used for quick and easy installation. Extra length posts can be used to
increase the fence heights above standard heights.
Posts
  • 60 x 60 x 3 RHS c/w clamp bar and M8 cup square bolts complete with cone nuts through posts.
  • 80 x 40 x 3 RHS c/w clamp bar and M8 cup square bolts complete with cone nuts through posts.
  • 80 x 80 x 3 RHS c/w clamp bar and M8 cup square bolts complete with cone nuts through posts.
Applications
The SECUREGUARD-358 system is suitable for high security applications.
Gates
Standard gates are available or tailored-made to suit your requirements. All gates are supplied with rear hung adjustable hinges, pad-lockable drop-bolts, multi-holed to suit site conditions complete with anti-climb PROTECTORGATE slide latch. See our gate range for further details.
Heavy duty fence panels ideal for enclosing high security and key point installations
358 High Security Mesh Fence Features:
  • Intersections are electrically welded to form an integral and impenetrable, non-collapsible barrier
  • Mesh aperatures are too small to allow cutting by conventional methods
  • Fence cannot be scaled as mesh openings are too small to allow footholds
  • Various coating options are available specially suited to specific regional anti-corrosive requirements
358 High Security Mesh Fence Applications:
  • Military installations
  • Prisons
  • Power Stations
  • Sport stadiums
  • Mines
  • Refineries
High Security Prison Anti -Cut Wire Fencing Panels Anti-Climb Security Resisdential FenceHigh Security Prison Anti -Cut Wire Fencing Panels Anti-Climb Security Resisdential FenceHigh Security Prison Anti -Cut Wire Fencing Panels Anti-Climb Security Resisdential Fence
Product tags

anti climb fence panels

,

chain link fence security top

,

security chain link fence
Send your message to this supplier
Send Now

High Security Prison Anti -Cut Wire Fencing Panels Anti-Climb Security Resisdential Fence

Ask Latest Price
Product Detail
Brand Name :
LNF-358 Fencing
Model Number :
Clearvu 358 Wire Mesh Fence
Certification :
ISO
Place of Origin :
China
MOQ :
100 liner meter
Price :
16.88$-28.66$ per liner meter
Contact Supplier
High Security Prison Anti -Cut Wire Fencing Panels Anti-Climb Security Resisdential Fence
High Security Prison Anti -Cut Wire Fencing Panels Anti-Climb Security Resisdential Fence
High Security Prison Anti -Cut Wire Fencing Panels Anti-Climb Security Resisdential Fence
High Security Prison Anti -Cut Wire Fencing Panels Anti-Climb Security Resisdential Fence
High Security Prison Anti -Cut Wire Fencing Panels Anti-Climb Security Resisdential Fence
High Security Prison Anti -Cut Wire Fencing Panels Anti-Climb Security Resisdential Fence

Top Fencing Co.Limited

Active Member
10 Years
hebei, hengshui
Since 2010
Business Type :
Manufacturer
Main Products :
Birds Aviary, Farm Gates, Razor Wire
Total Annual :
90000000-10000000
Employee Number :
55~200
Certification Level :
Active Member
Discover similar products
View More

Find Similar Products By Category:

Supplier Homepage Products High Security Wire Fence
MachineU China Products Minerals & Metallurgy Wire Mesh Barbed Wire
Contact Supplier
Submit Requirement
