Grey Colour 358 Fence Security Wire Mesh Fence PVC Coated / Galvanized 4 . 0 MM Wire Diameter
Grey Colour 358 Fence Security Wire Mesh Fence PVC Coated / Galvanized 4 . 0 MM Wire Diameter
Grey Colour 358 Fence Security Wire Mesh Fence PVC Coated / Galvanized 4 . 0 MM Wire Diameter
Grey Colour 358 Fence Security Wire Mesh Fence PVC Coated / Galvanized 4 . 0 MM Wire Diameter
Specifications
Brand Name :
LNF-358 Fencing
Model Number :
Clearvu 358 Wire Mesh Fence
Certification :
ISO
Place of Origin :
China
MOQ :
100 liner meter
Price :
16.88$-28.66$ per liner meter
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
10000 liner meter per month
Delivery Time :
14 work days
Packaging Details :
Pallet
Type :
Fencing,Trellis & Gates,Welded Mesh
Feature :
Easily Assembled,Eco Friendly,Waterproof,Renewable Sources,Rodent Proof
Metal type :
Steel,Iron,High quality carbon steel wire,Low carbon steel
Frame material :
Metal
Frame finishing :
Powder Coated,PVC Coated,Hot dipped galvanized,galvanized
Pressure treated wood type :
Heat Treated,Nature,Chemical
Product name :
358 Welded Mesh Fence,factory galvanized steel wire welded panel 358 fence,prison 358 fence,factory direct supply cyclone wire fence price philippines
Color :
green,blue,Black,yellow
Material :
Galvanized Iron Wire,Low-Carbon Iron Wire,Low Carbon Steel Wire,High quality carbon steel wire,PVC coated wire
Surface treatment :
Galvanized+PVC Coated,Hot Dipped Galvanized,PVC Coated,PVCcoated,Galvanized/Powder Coated/PVC coated
Application :
Fence Mesh,Construction Wire Mesh,Prison,Protecting Mesh,District guardrail
Wire diameter :
4.0mm,etc
Height :
1.8m,3m,2.4m,2m,3.0m
Width :
0.5M----3.0M
Packing :
Pallet,Plastic film& wooden pallet,Skecth film paper and pallet,In Rolls or Sheets
Wire gauge :
3mm,3mm - 6mm,2.0mm,3-5mm,3.0-4.0mm
Usage :
Protection,Anti-climbing,house,Prison wire mesh fence
Hole shape :
Square,rectangle
Length :
2.0m,Customized
Description

358 Fence Security Wire Mesh Fence PVC Coated / Galvanized 4 . 0 MM Wire Diameter

358' comes from its measurements 3" x 0.5" x 8 gauges which equates to approx. 76.2mm x 12.7mm x 4mm (Length x height x Diameter) in metric.358 security fences are extremely difficult to penetrate, with the small mesh aperture being effectively finger proof, and extremely difficult to attack using conventional hand tools. 358 fences are recognized as one of the most difficult to break through the barrier, because it is difficult to climb. It is called security fencing and high- strength fencing. 358 security fencing panel can be bent in part to enhance the aesthetic effect. While 3510 Security Fencing has many of the attributes of 358 Security Fencing and its main strength is it's lighter. Using 3mm wire instead of 4mm allows even better visibility allowing a wider variety of applications. It’s lighter and cheaper so it's ideal for commercial applications.
Anti climb fence is a much more secure barrier than the common 358 mesh fence. It has the same wire thickness as 358 fence, but the size of mesh opening pattern is smaller. The intruder can not climb up with fingers and toes, and conventional bolts or wire-cutters have no way to cut the anti climb fencing.
Anti-climbing fence has more rigid double vertical wire welding structure, which makes it difficult to cross. Anti-climb rigid mesh fencing has the advantages of anti-climbing, anti-cutting, anti-corrosion, and good viewing visibility. Combined with the fence top of razor barbed wire, security fence spikes, or tooth spikes, it becomes a ideal high-security fencing for high-end applications, such as, prisons, military and power facilities.
Grey Colour 358 Fence Security Wire Mesh Fence PVC Coated / Galvanized 4 . 0 MM Wire Diameter
ACF-01: Anti-climbing fence with double vertical wire design for high security perimeter fencing, available in black, dark green, brown, yellow colors.
High security anti-climbing fence features
  • Good viewing visibility, it is a type of high security clear view fencing.
  • Welded well at each intersection.
  • Intrusion resistant, with extremely strong double vertical wire design.
  • Small mesh aperture, anti-cut, anti-climb, finger-resistant and toe-resistant.
  • Corrosion resistant with zinc aluminum alloy and PVC powder coating.
  • Surface finish after welding, every weld-point are protected well.
  • High strength with fully integrated with posts and anti-tamper fixings.
  • Fence security toppings are optional.
  • Easy for installation and free maintenance.
  • 5 year warranty.
Anti climb fence specifications:
  • Wire: 4 mm steel wire.
  • Wire surface finish: galfan coating after welded, and then PVC powder coating (Min. 120 micron), or PVC powder painting.
  • PVC coated color: black, dark green, brown, yellow, desert sand, bronze or other colors request.
  • Mesh opening pattern: 70 mm × 8 mm, welded well at each intersection.
  • Mesh sheet width: 2515 mm.
  • Anti-climb mesh fencing panels and posts.
Table-1: anti-climb mesh fencing panels and posts specifications
Fence height (m)
Panel size
(Height × Width)
Fence Post
(Height × Size × Thick)
Clamp Bar
(Height × Width × Thick )
Inter or corner
Clamp No. (PCS)
2.0
2007 mm × 2515 mm
2700 × 80 × 80 × 3 mm
2007 × 60 × 5.00 mm
7 or 14
2.4
2410 mm × 2515 mm
3100 × 80 × 80 × 3 mm
2400 × 60 × 5.00 mm
9 or 18
3.0
3010 mm × 2515 mm
3800 × 100 × 100 × 3.0 mm
2997 × 80 × 6.00 mm
11 or 22
3.6
3610 mm × 2515 mm
4500 × 100 × 100 × 3.5 mm
3607 × 100 × 7.00 mm
13 or 26
Note: anti-climb mesh fencing can be custom ordered to measure.
  • Fence security toppings: Flat razor wire coils with barbed wire, concertina barbed wire, security fence spikes, or shark tooth spikes (coating according to the anti-climb fence panels).
    • Shark tooth spikes: width 35 mm, long teeth up to 58 mm.
    • Security anti-climb fence spikes:
      • Plate thickness: 2.0 mm
      • Base width: 65 mm.
      • Spike length: 35 mm short spikes, 70 mm long spikes.
      • Spikes pitch: 70 mm.
    • Razor wire
      • Style: flat razor wire or concertina razor wires.
      • Barb length: short barb or long barb.
      • Material: galvanised steel, stainless steel (for extremely corrosive environments).
      • Wire: high tensile 25 mm, aluminum/zinc wire, breaking load 7700 N.
      • Coil Diameter: 600 mm, 750 mm.
      • Number of loops: 55.
      • Extent length: 7.5 m.
    • Barbed wire
      • Galvanized and PVC coated barbed wire with 2 strands and 4 points.
      • Gauge of strand and barb wire: 11 gauge.
      • Barbs spacing: 3 inch.
Anti-climb fence with double vertical wire provides an ideal solution for high security perimeter and access control applications, such as:
  • Prison perimeter areas.
  • Military sites and government facilities.
  • Electricity distribution sites.
  • Airports, railways, roadways.
  • Seaports.
  • Fencing & intrusion detection projects.
  • Hydel power project.
  • Petroleum and chemical facilities.
  • Wildlife sanctuaries.
  • Warehousing facilities,
  • School.
Anti climb high security mesh fence price
  • The anti climb high security fence price is determined by the following aspects: raw material price, processing cost, and freight.
  • If your budget is limited, and the used environment requirements for corrosion and rust protection is not too high, for example in desert areas, you can choose Galfan coating without PVC coating.
  • If used in high corrosion and high humidity marine environment, then you must choose Galfan coating then PVC coating fence to meet the requirements. Of course, the price is higher than just galfan anti climb fencing.
  • In short, we recommend that you choose the most durable option within your budget.
Grey Colour 358 Fence Security Wire Mesh Fence PVC Coated / Galvanized 4 . 0 MM Wire DiameterGrey Colour 358 Fence Security Wire Mesh Fence PVC Coated / Galvanized 4 . 0 MM Wire Diameter
Material:
low carbon steel wire Q195, galvanized wire, stainless steel wire.
Type:
Welded mesh
Wire Diameter:
4.0 m
Hole Size:
3'' x 0.5''
Surface Treatment:
Electric galvanizing,
Hot-dipp galvanizing,
PVC spraying,
PVC coating.
Color:
Any color can be customized. While green is the popular color.
Specification:
Master View 358
2.1m
2.4m
3.0m
Panel Height
2134mm
2438mm
2997mm
Panel Width
2515mm
2515mm
2515mm
Mesh Size
12.7x76.2mm
12.7x76.2mm
12.7x76.2mm
Horizontal Wire
4mm
4mm
4mm
Vertical Wire
4mm
4mm
4mm
Panel Weight
50kg
57kg
70kg
Posts
60x90x4mm
60x90x4mm
80x80x4mm
Post Length
2.8m
3.1m
4.0m
Clamp Bar
40x6m slotted
40x6m slotted
40x6m slotted
Fixings
8 security nuts
No. Of fixings
8
9
11
Other specifications could be customized by your requirements
Anti Climb Wire Mesh Fence / 358 Security Fence Post:
Security Fencing Post System:
80x60x2.5mm RHS intermediate posts pitched at 2.525m centres
80x80x3mm RHS corner posts
Utilise steel fixing brackets to secure panels to the front face of the posts

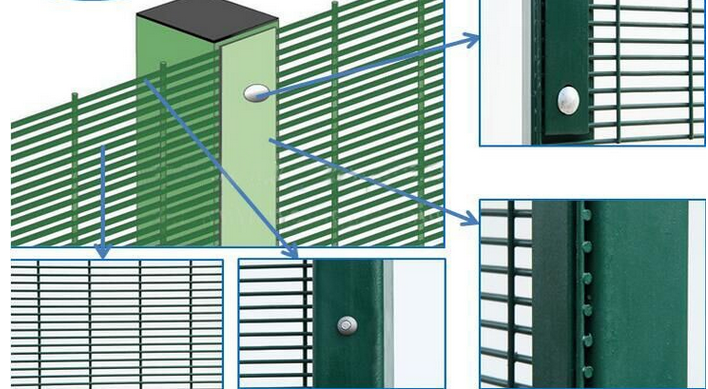

Panels are butt jointed at each post for securing with double-drilled fixing brackets, posts are fitted with twin rows of M8 threaded inserts.
Post Fittings-Rain hats and clamps:

For SHS post
For RHS post
For C type steel post(On request)
Metal claw with screws
Flat bar with screws
Grey Colour 358 Fence Security Wire Mesh Fence PVC Coated / Galvanized 4 . 0 MM Wire Diameter
Anti Climb Wire Mesh Fence / 358 Security Fence Characteristics:
1. It is easy to work,
2. bright color, .
3. Difficult to corrosion,
4. durable and long life expectancy.
5. uniform mesh,
6. flat surface,
7.high quality and easy to maintain.
Anti Climb Wire Mesh Fence / 358 Security Fence Application:
358 security can be widely used in the following fields.
1. correctional facilities.
2. detention centres.
3. airports.
4. military sites.
5. schools.
6. retail precincts.
7. business precincts.
8. utility/public works facilities.
9. critical services infrastructure.
10.Bridge security.
Grey Colour 358 Fence Security Wire Mesh Fence PVC Coated / Galvanized 4 . 0 MM Wire Diameter
