Stainless Steel Flexible Wire Mesh Netting AISI 304 AISI 316L
Stainless Steel Flexible Wire Mesh Netting AISI 304 AISI 316L
Stainless Steel Flexible Wire Mesh Netting AISI 304 AISI 316L
Stainless Steel Flexible Wire Mesh Netting AISI 304 AISI 316L
Specifications
Brand Name :
LNF-ROPE MESH
Model Number :
ROPE MESH 2"
Certification :
ISO
Place of Origin :
AUSTRALIA
MOQ :
100sqm
Price :
12.88$/m2
Payment Terms :
Western Union, MoneyGram, T/T, L/C
Supply Ability :
10000 sqm per week
Delivery Time :
5 work days
Packaging Details :
Australia Standard Stillage
Material :
Stainless Steel Wire,316L stainless steel,Galvanized Steel Wire
Application :
Protecting Mesh,Filters,Woven Wire Mesh,decorative cable mesh
Type :
Rope Mesh,Weave Wire Mesh,Reinforced Mesh,knotted mesh and ferrule mesh,stainless steel decorative wire mesh
Weave style :
Plain Weave,Dutch Weave,Twill,handmade,Dutch-Twill Weave
Technique :
Woven,Welded Mesh,Perforated,Weave
Feature :
Corrosion Resistance,Flexible,durable,high-strength,Rust-Resistance
Wire diameter :
Requirement,0.019mm to 2.32mm,0.02mm-0.5mm,1x7 7x7 7x19 or customized,1/16"
Usage :
filter,Protection,decorative wire mesh,oil,aviary mesh
Hole shape :
Diamond,Square Hole,Rectangular,as per requirement,round hole
Color :
Silver,requirement,gold,blue or as your request,Red/yellow/green/blue;customized
Product name :
SS 304 decorative wire mesh,smoking pipe filters,X-tend Kontted Type Stainless Steel Inox Cable Wire Rope Mesh,304 316 316L stainless steel bird cage wire rope/aviary mesh,Stainless Steel Wire Rope Net/Stainless Steel Cable Mesh for Bird
Width :
0.1m-8m,2-4m,Cunstomized,0.914m~1.83m,1.5m
Length :
30m,2-4m,30m per roll or as required,1-30m,30m/roll 50m/roll
Surface treatment :
polishing,black/ pre-gal/hot dip gal,Mill.Coloer Finish
Sample :
Available,Free
Mesh size :
8-500 mesh,20mm-160mm,as your requirement
Size :
3"*3",4"*4",1"*1",1.5"*1.5",Customized
Advantage :
Superior wire,no noise,corrosion resistance,High strength,Wear-resisting
Aperture :
25-100mm,75-2800 Micron,1" 2"x2" 3"x3" 4 or customized
Description
stainless steel flexible wire mesh netting is the characteristic leading product of Metal Mesh, which has been manufacturing the product since 2006. We have the CE and ROHS certificates.

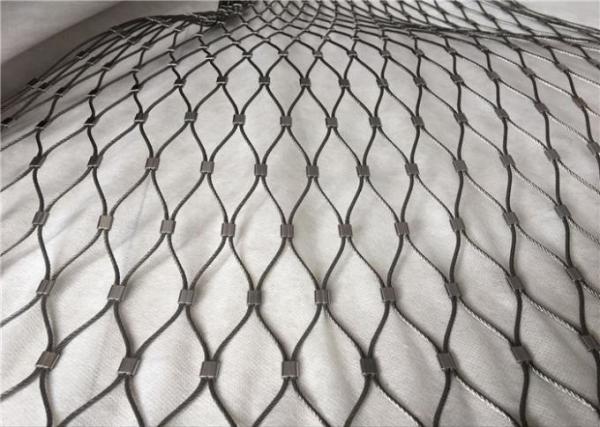

Stainless steel rope mesh, also called SS cable mesh, is made from high-quality stainless steel wire rope, with the features of extremely anti-corrosion and resistance to UV rays, and has a long lifespan in harsh environments.

From the perspective of safety, the stainless steel flexible wire mesh netting railing is solid and firm, which can effectively prevent people from falling. It can be designed like a railing traditionally, or it can also be designed as a protective wall extending from the ceiling to the ground. The excellent visibility of stainless steel rope mesh can create a magnificent and transparent space effect and make the designer’s diverse inspiration translate into reality.

Product Name Stainless steel wire rope mesh(stainless steel cable mesh)
Certificates CE and ROHS Certificates
Material
AISI 304 or AISI 316
Wire Diameter 1mm-5mm, the common diameter:1.5mm,2.0mm,3.0mm
Wire Structure 7*7 or 7*19
Opening Hole Size From10*10mm to 300*300mm,the common size:40*70mm 50*90mm 60*104mm 80*140mm.
Woven Type Ferruled type and Knotted type

Details stainless steel flexible wire mesh netting

  • The stainless steel rope net is hand-made with high-quality stainless steel rope.
  • The primary materials for processing stainless steel rope are 304, 304L, 316, 316L, etc. Standard specifications for stainless steel rope: wire diameter:
  • 1.2 mm, 1.5 mm, 2 mm, 3 mm, 4 m sides: 25 mm, 30 mm, 40 mm, 50 mm,
  • 60 mm, 70 mm, 80 mm, 90 mm, 100 mm, 120 mm, 150 mm, etc.
  • Particular specifications can be customized.

Specification

Parameters
Code Rope Construction Rope Diameter Aperture Break Force
JY01 7*19 INCH MM MM KN
JY02 7*19 1/8 3.2 120*208 7.38
JY03 7*19 1/8 3.2 100*173 7.38
JY04 7*7 1/8 3.2 90*156 7.38
JY05 7*7 3/32 2.4 100*173 4.18
JY06 7*7 3/32 2.4 90*156 4.18
JY07 7*7 3/32 2.4 80*139 4.18
JY08 7*7 3/32 2.4 70*121 4.18
JY09 7*7 5/64 2.0 100*173 3.17
JY010 7*7 5/64 2.0 90*156 3.17
JY011 7*7 5/64 2.0 801*39 3.17
JY011-stainless steel flexible wire mesh netting 7*7 5/64 2.0 70*121 3.17
JY012 7*7 1/16 1.6 80*139 2.17
JY013 7*7 1/16 1.6 70*121 2.17
JY014 7*7 1/16 1.6 60*104 2.17
JY015 7*7 1/16 1.6 518*7 2.17
JY016 7*7 3/64 1.2 80*139 1.22
JY017 7*7 3/64 1.2 60*104 1.22
JY018 7*7 3/64 1.2 50*87 1.22
JY019 7*7 3/64 1.2 40*69 1.22
1. Knotted stainless steel flexible wire mesh netting is a plain weave; each warp wire rope crosses alternately above and below each weft wire rope. Warp and weft wire ropes generally have the same diameter.
2. Ferruled mesh has the same physical properties as the knotted mesh; the only difference is in the combination style; the stainless wire rope is combined with the ferrules, which are made of the same grade of stainless steel.
Stainless Steel Flexible Wire Mesh Netting AISI 304 AISI 316L
Stainless Steel Flexible Wire Mesh Netting AISI 304 AISI 316L Stainless Steel Flexible Wire Mesh Netting AISI 304 AISI 316L Stainless Steel Flexible Wire Mesh Netting AISI 304 AISI 316L
The flexible stainless steel zoo mesh rhombus mesh has excellent flexible performance, is virtually indestructible, most packing-resistant and breaking resistant force, and most resisting rain, snow and hurricane.
