Specifications
Brand Name :
LNF-ROPE MESH
Model Number :
ROPE MESH 2"
Certification :
ISO
Place of Origin :
AUSTRALIA
MOQ :
100sqm
Price :
12.88$/m2
Payment Terms :
Western Union, MoneyGram, T/T, L/C
Supply Ability :
10000 sqm per week
Delivery Time :
5 work days
Packaging Details :
Australia Standard Stillage
Material :
Stainless Steel Wire,316L stainless steel,Galvanized Steel Wire
Application :
Protecting Mesh,Filters,Woven Wire Mesh,decorative cable mesh
Type :
Rope Mesh,Weave Wire Mesh,Reinforced Mesh,knotted mesh and ferrule mesh,stainless steel decorative wire mesh
Weave style :
Plain Weave,Dutch Weave,Twill,handmade,Dutch-Twill Weave
Technique :
Woven,Welded Mesh,Perforated,Weave
Feature :
Corrosion Resistance,Flexible,durable,high-strength,Rust-Resistance
Wire diameter :
Requirement,0.019mm to 2.32mm,0.02mm-0.5mm,1x7 7x7 7x19 or customized,1/16"
Usage :
filter,Protection,decorative wire mesh,oil,aviary mesh
Hole shape :
Diamond,Square Hole,Rectangular,as per requirement,round hole
Color :
Silver,requirement,gold,blue or as your request,Red/yellow/green/blue;customized
Product name :
SS 304 decorative wire mesh,smoking pipe filters,X-tend Kontted Type Stainless Steel Inox Cable Wire Rope Mesh,304 316 316L stainless steel bird cage wire rope/aviary mesh,Stainless Steel Wire Rope Net/Stainless Steel Cable Mesh for Bird
Width :
0.1m-8m,2-4m,Cunstomized,0.914m~1.83m,1.5m
Length :
30m,2-4m,30m per roll or as required,1-30m,30m/roll 50m/roll
Surface treatment :
polishing,black/ pre-gal/hot dip gal,Mill.Coloer Finish
Sample :
Available,Free
Mesh size :
8-500 mesh,20mm-160mm,as your requirement
Size :
3"*3",4"*4",1"*1",1.5"*1.5",Customized
Advantage :
Superior wire,no noise,corrosion resistance,High strength,Wear-resisting
Aperture :
25-100mm,75-2800 Micron,1" 2"x2" 3"x3" 4 or customized
Description

AISI316 Ferrule Stainless Steel Wire Cable Mesh

Stainless Steel Wire Rope Mesh (stainless steel wire cable net) is very popular in the field of modern architectural decoraturation and animal protection.

The Hesly Architectural Mesh is experienced in processing stainless steel wire rope mesh, available Sleeve Type andWoven Type which made from super 304,316 grade stainless steel cable or Hot Dipped Galvanized Wire Cable.

AISI316 Ferrule Stainless Steel Wire Cable Mesh Zoo Mesh AISI316 Ferrule Stainless Steel Wire Cable Mesh Zoo Mesh

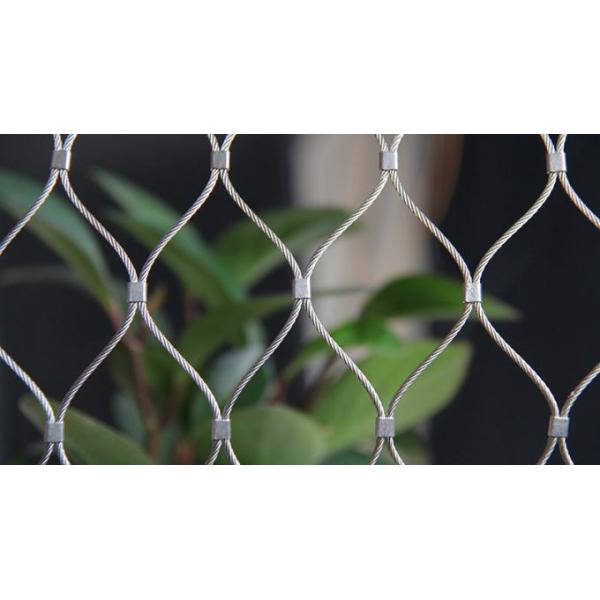

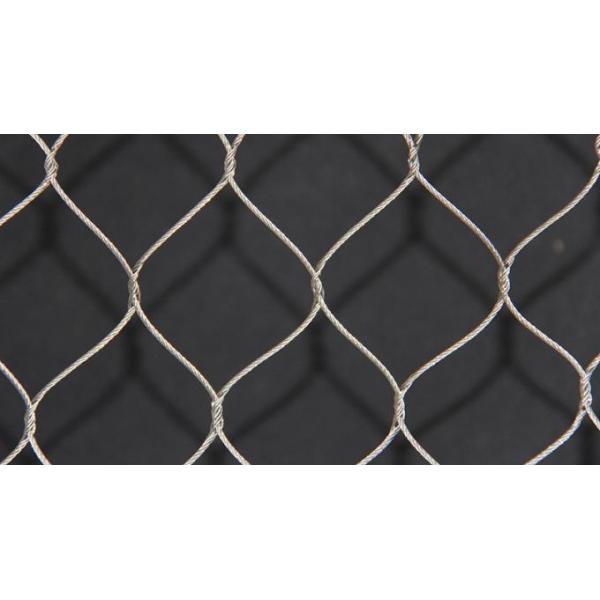

SS Cable Mesh (Ferrule/Sleeve Type) SS Cable Mesh (Woven Type)

Advantages

  • > 316 "marine grade" stainless steel
  • > Innovative, highly durable product
  • > Black anodised or galvanised finish options
  • > Great prices
  • > Professional, friendly service
  • > Pliable, high strength mesh system
  • > Wide range of sizes available
  • > UV and weather resistant
  • > Fast turnaround
  • > Ideal for many applications

The Hesly Wire Rope Mesh is ideal for many different applications, including: balustrade infill, animal enclosures, art forms, plant supports, safety nets, fencing and aviaries.

Technical Info

HeslyRope stainless steel wire rope mesh net is assembed by seamless ferrules and stainless steel wire rope.Diamond mesh when it is stretched at 60° angle ( Option: 20 °- 90° angle ).

Rope diameter:1.0 mm (7*7 ),1.5 mm (7*7 ), 2.0 mm (7*7 ),3.0 mm (7*19) ,4.0 mm (7*19).

Opening (OW X OH): 20mm x 35 mm - 200mm x 346 mm.

Stainless Steel Wire Ropes AISI316 Ferrule Stainless Steel Wire Cable Mesh Zoo Mesh
Structure 1.0 mm 1.5 mm 2.0 mm 3.0mm 4.0 mm
Structure 7 x 7 7 x 7 7 x 7 7 x 19 7 x 19

Single Wire TS

(N/mm2)

 1770 1770 1770 1570 1570

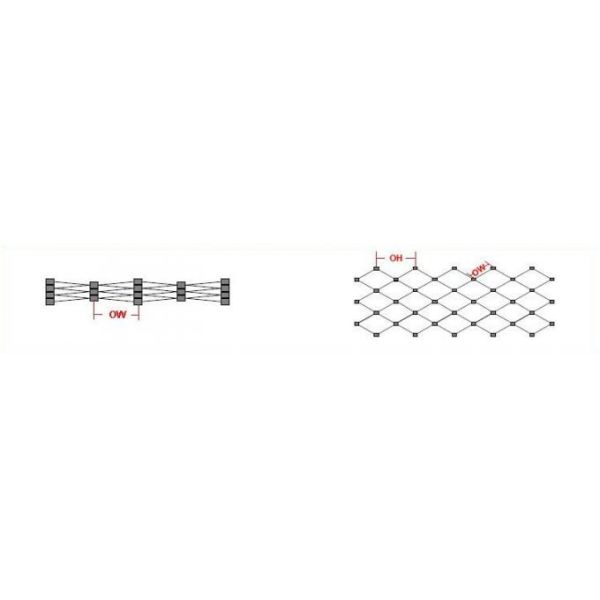

Mesh Structure
Opening Size Rope Diameter
OW X OH 1.0 mm 1.5 mm 2.0 mm 3.0 mm 4.0 mm
20 x 35 CD1020
25 x 43 CD1025 CD1525
35 x 61 CD1035 CD1535
40 x 69 CD1040 CD1540 CD2040
50 x 87 CD1050 CD1550 CD2050 CD3050
60 x 104 CD1060 CD1560 CD2060 CD3060 CD4060
70 x 121 CD1070 CD1570 CD2070 CD3070 CD4070
80 x 139 CD1080 CD1580 CD2080 CD3080 CD4080 HeslyRope
100 x 173 CD10100 CD15100 CD20100 CD30100 CD40100 OW : Opening Width
120 x 242 CD10120 CD15120 CD20120 CD30120 CD40120 OH : Opening Height
160 x 277 CD10160 CD15160 CD20160 CD30160 CD40160 OG : Opening Guage
180 x 312 CD10180 CD15180 CD20180 CD30180 CD40180 α : 60° standard (Angle: 30° - 90°)
200 x 346 CD10200 CD15200 CD20200 CD30200 CD40200

Stretched

The HeslyRope rope mesh net can be stretched at 20°-90°,standard 60° angle.

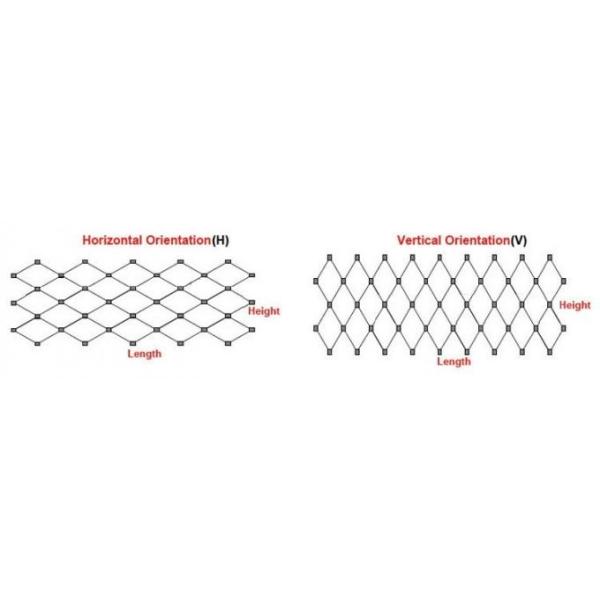

AISI316 Ferrule Stainless Steel Wire Cable Mesh Zoo MeshOpening Orientation

Customized wire rope mesh net's height and length.

AISI316 Ferrule Stainless Steel Wire Cable Mesh Zoo Mesh


How to order ?

  • Rope diameter + Opening : such as CD1560,CD3060 etc
  • Opening orientation : H or V
  • Edge : such as L10,L18,L24 etc
  • Piece height and length
  • Drawing is necessary if available
  • Order e.g. :CD1560 - 60° - H - L10 - Height x Length
