Usages:Widely used in villas, community, gardens, schools, factories and other flower beds, lawns, industrial

and mining enterprises, financial institutions, sports stadiums, convention centers, squares, roads, balconies,

residential use, its flowing lines, simple and beautiful and full of rich modern residential sensual, garden Light,

villas era of high grade. Simple installation, easy maintenance, easy to clean, affordable, eliminating maintenance.

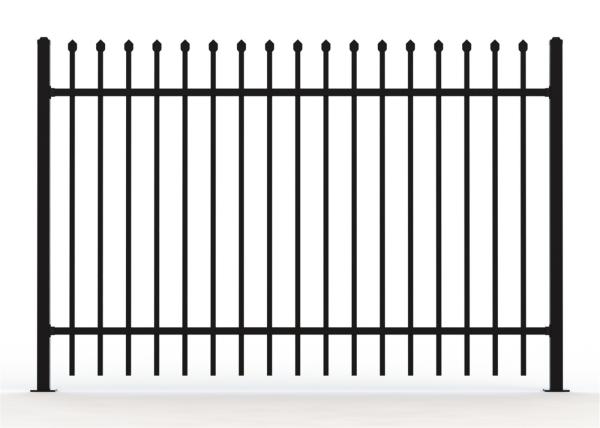

Steel fence specification introduction:

1. Heavy duty Crimp top picket steel fence in Black colour only

2.Width 2400mm x Height 1800mm Crimp top diamond shape

3.40x40x1.6mm top rail,25x25x1.2mm Verticals

4. There are 17 vertical pickets 20x20mm with diamond crimped on top.

5. The gap in between the pickets is110mm

6. 60x60x2mm thick post - these are 3m long each not 2.6m long as others supply.

7. Normal fence powder coated brackets

8. Security fence brackets (powder coated )

9. Caps for 60x60 posts (powder coated )

10. Phosphate treated before powder coating (Very Important)

11. All panels are fully protected

The procedure of welded steel fence and assembling steel fence:

Welded fence procedure:

1>Cut Shot

2>Punching Holes

3>Profusion welded

4>Acid Washing

5>Powder Coating

Assembled fence procedure:

1>Cut Shot

2>Punching Holes

3> Acid washing

4>Powder Coating

5>Assembled

1. Pickets detail:

Pickets top is so important. It must be sealed very well on the top, or it is easy to rust. We

can ensure you sealed very well pickets. Which highly improved the lifetime of the fence:

Another famous kind of pickets is finials (Usually tubular fence need finials):

2. Horizontal rails:

Type 1: Punch round hole on 20*40mm rail or 40*40mm or 45*45mm rail:

Type2: Punch a square hole on 40*40mm rail or 20*40mm or 45*45mm rail:

Type 3: Punch holes on 1-7/16’’ * 1-1/2’’ “U” Type rail:

3. Posts:

According to usage, posts can be divided into 2 kinds. One kind is embedded post (At least 50cm will

be embedded under the ground. The other kind is Post with flanged chassis. According to the direction,

posts including Line post, Corner post & End post.

4. Fittings which used to connect the panel and the post:

5. Gates (single gates, double opening gates and electric gates)

6. Panels which can suit up and down hills or sloped terrain.

There are mainly 2 ways to suit the slope, one way is made the fence into slope fence, it can adjust

according to the slope.

The other way is to install the fence like stairs step.

See the 2 ways below the pictures:
