2.1m*2.4m Pressed spear top security Steel fencing with Punched Tube Rails 45mmx45mm x 1.80mm black powder steel fence
2.1m*2.4m Pressed spear top security Steel fencing with Punched Tube Rails 45mmx45mm x 1.80mm black powder steel fence
2.1m*2.4m Pressed spear top security Steel fencing with Punched Tube Rails 45mmx45mm x 1.80mm black powder steel fence
2.1m*2.4m Pressed spear top security Steel fencing with Punched Tube Rails 45mmx45mm x 1.80mm black powder steel fence
2.1m*2.4m Pressed spear top security Steel fencing with Punched Tube Rails 45mmx45mm x 1.80mm black powder steel fence
2.1m*2.4m Pressed spear top security Steel fencing with Punched Tube Rails 45mmx45mm x 1.80mm black powder steel fence
2.1m*2.4m Pressed spear top security Steel fencing with Punched Tube Rails 45mmx45mm x 1.80mm black powder steel fence
2.1m*2.4m Pressed spear top security Steel fencing with Punched Tube Rails 45mmx45mm x 1.80mm black powder steel fence
2.1m*2.4m Pressed spear top security Steel fencing with Punched Tube Rails 45mmx45mm x 1.80mm black powder steel fence
2.1m*2.4m Pressed spear top security Steel fencing with Punched Tube Rails 45mmx45mm x 1.80mm black powder steel fence
Specifications
Brand Name :
Perth Fencing
Model Number :
Perth Steel Fence-1200mm-1500mm-1800mm-2100mm-2400mm
Certification :
AS/NZS1163& AS/NZS4506-1998
Place of Origin :
New Zealand And Australia Design
MOQ :
150
Price :
48.88$
Payment Terms :
TT 30% deposit balance 70% at sight of done cargo
Supply Ability :
90001
Delivery Time :
7 days
Packaging Details :
Metal Pallet With Plastic Jacket
Materials :
Q235
Color :
Black and Grey or other
Dimensions :
1800mm x 2400mm ,2100mm x 2400mm or Customized
Salt Spray Testing :
Pass
Treatment :
Powder Coated ,Hot Dipped Galvanized
Technical :
Punch Pipes and Welding etc
Nick Name :
Steel Fence ,Steel Tubular Fence ,Steel Spear Fence,Garrison Fence,ornamental steel fence
Upright Pipes :
25mm x 25mm x 1.20mm
Rails :
40mm x 40mm x 1.60mm
Post :
65mm x 65mm x 2.00mm x 3000mm
Popular :
Powder Coated Stain Black
Apllication :
Garden Fence, Farm Fence, Residential Fence, Highway Fence, Railway Fence, Balcony Fence, Airport Fence, Stadium Fence, Municipal Fence, Bridge Fence, Stair Fence, Air-Condition Fence
Description

2.1m*2.4m Pressed spear top security Steel fencing with Punched Tube Rails 45mmx45mm x 1.80mm black powder steel fence

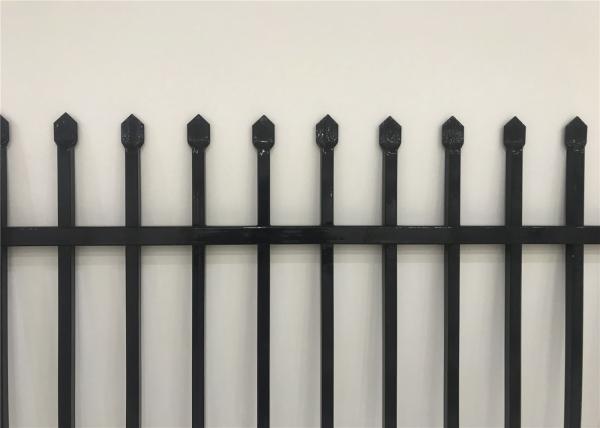

Pressed spear top security Steel fencing with Punched Tube Rails

LN is a China manufacturer of pressed spear top security fencing. The fence panels are composed with punched tubular rails with spear tops. Horizontal tube, vertical tube and column are the three major parts. The spear top fence system can be fitting with swing gates.

Our popular spear top fencing for export in 2015:
40 x 40mm rails: Punched rails
25 x 25mm uprights & 125mm centre
Fully welded and powder coated
Fencing Panel Size:
2400 x 1800mm high
2400 x 2100mm high

2.1m*2.4m Pressed spear top security Steel fencing with Punched Tube Rails 45mmx45mm x 1.80mm black powder steel fence

Pressed Tubular Spear Top Fences made with Australian standard:

Specification: 2.1m(H) x 2.4m(W) / 1.8m(H) x 2.4m(W)/
The horizontals rail: galvanized 40 x 40 x 1.6mm SHS
The vertical spear post: galvanized 25 x 25 x 1.2mm SHS
The Posts: galvanized 65 x 65 x 5mm SHS; Post 60x60x2.0mm or 80x80x2.0mm.
The spacing of vertical post: 125mm or customization
The gap in between the pickets is 110mm
The surface finish: powder coating after fabricated by hot dip galvanized/pre-galvanized steel tube
Material: hot dipped galvanized round and square tube
Powder coating: Black colour powder coated normally
40x40x1.6mm top and bottom rail, 25x25x1.2mm Verticals
There are 18 vertical pickets 25x25mm with the spear.

Features of Steel Tube Railing Fence with Spear Top:
Two layers anticorrosive processing: galvanizing and powder coating;
Good anti-corrosion performance;
Long service life;
Can be reused after surface treatment after long uses.

2.1m*2.4m Pressed spear top security Steel fencing with Punched Tube Rails 45mmx45mm x 1.80mm black powder steel fence

The selection of parameters:

Rail tube Vertical tube 50 steel column 75 steel column Height
45*45*1.2mm 25*25*1.0mm 50*50*1.5mm 75*75*1.8mm 1.2m / 1.5m/ 1.8m/ 2.0m
40*40*1.2mm 19*19*1.0mm 50*50*1.5mm 75*75*1.8mm 1.2m / 1.5m/ 1.8m/ 2.0m
32*32*1.2mm 16*16*1.0mm 50*50*1.5mm 75*75*1.8mm 1.2m / 1.5m/ 1.8m/ 2.0m
