stainless steel suspension bridge railing mesh
stainless steel suspension bridge railing mesh
Specifications
Brand Name :
LNF-ROPE MESH
Model Number :
ROPE MESH 2"
Certification :
ISO
Place of Origin :
AUSTRALIA
MOQ :
100sqm
Price :
12.88$/m2
Payment Terms :
Western Union, MoneyGram, T/T, L/C
Supply Ability :
10000 sqm per week
Delivery Time :
5 work days
Packaging Details :
Australia Standard Stillage
Material :
Stainless Steel Wire,316L stainless steel,Galvanized Steel Wire
Application :
Protecting Mesh,Filters,Woven Wire Mesh,decorative cable mesh
Type :
Rope Mesh,Weave Wire Mesh,Reinforced Mesh,knotted mesh and ferrule mesh,stainless steel decorative wire mesh
Weave style :
Plain Weave,Dutch Weave,Twill,handmade,Dutch-Twill Weave
Technique :
Woven,Welded Mesh,Perforated,Weave
Feature :
Corrosion Resistance,Flexible,durable,high-strength,Rust-Resistance
Wire diameter :
Requirement,0.019mm to 2.32mm,0.02mm-0.5mm,1x7 7x7 7x19 or customized,1/16"
Usage :
filter,Protection,decorative wire mesh,oil,aviary mesh
Hole shape :
Diamond,Square Hole,Rectangular,as per requirement,round hole
Color :
Silver,requirement,gold,blue or as your request,Red/yellow/green/blue;customized
Product name :
SS 304 decorative wire mesh,smoking pipe filters,X-tend Kontted Type Stainless Steel Inox Cable Wire Rope Mesh,304 316 316L stainless steel bird cage wire rope/aviary mesh,Stainless Steel Wire Rope Net/Stainless Steel Cable Mesh for Bird
Width :
0.1m-8m,2-4m,Cunstomized,0.914m~1.83m,1.5m
Length :
30m,2-4m,30m per roll or as required,1-30m,30m/roll 50m/roll
Surface treatment :
polishing,black/ pre-gal/hot dip gal,Mill.Coloer Finish
Sample :
Available,Free
Mesh size :
8-500 mesh,20mm-160mm,as your requirement
Size :
3"*3",4"*4",1"*1",1.5"*1.5",Customized
Advantage :
Superior wire,no noise,corrosion resistance,High strength,Wear-resisting
Aperture :
25-100mm,75-2800 Micron,1" 2"x2" 3"x3" 4 or customized
Description

Stainless Steel Suspension Bridge Railing Rope Mesh

Suspension bridges are the great projects of humans. And a suspension bridge is made up of three components: deck (the load-bearing portion), railing and suspension cables. The railings of many suspension bridges are made of stainless steel rope mesh, namely stainless steel suspension bridge railing mesh. Why stainless steel rope mesh can play so important role? Because it has many incomparable features:

  • light weight and soft.
    Stainless steel suspension bridge rope mesh is light, making the installation easier. And the mesh is very soft, so it will not hurt hands if you touch it.
  • Aesthetic appearance.
    Stainless steel suspension bridge rope mesh has diamond-shape openings and smooth surface. So it makes the suspension bridge a grand landscape.
  • High flexibility.
    The mesh size and rope diameter can be modified according to the bridge.
  • High strength.
    Stainless steel suspension bridge rope mesh is soft, but it has high strength. So it can ensure the safety of the people.
  • Resistant to corrosion and rust.
    Stainless steel suspension bridge rope mesh is made of high quality stainless steel ropes, and it is resistant to rust and corrosion in spite of damp environment for long time. What's more, its life span can be up to more than 30 years.
  • Non-toxic, environmentally friendly and maintenance-free.
    There is no any toxic material in stainless steel suspension bridge rope mesh. And it does not require maintenance.
stainless steel suspension bridge railing mesh

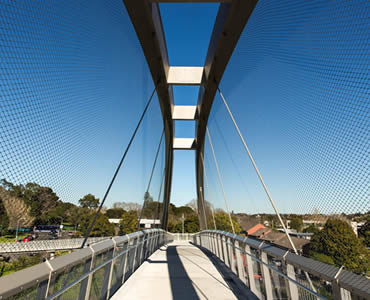

Stainless steel ferrule rope mesh makes the suspension bridge more beautiful and safer.

stainless steel suspension bridge railing mesh

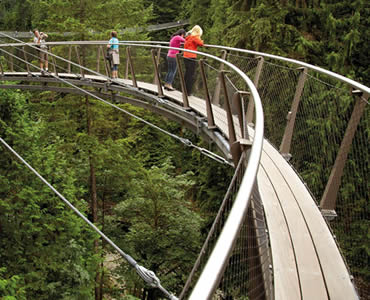

Stainless steel ferrule rope mesh makes Cliffwalk Capilano Suspension Bridge more attractive and safer.

stainless steel suspension bridge railing mesh

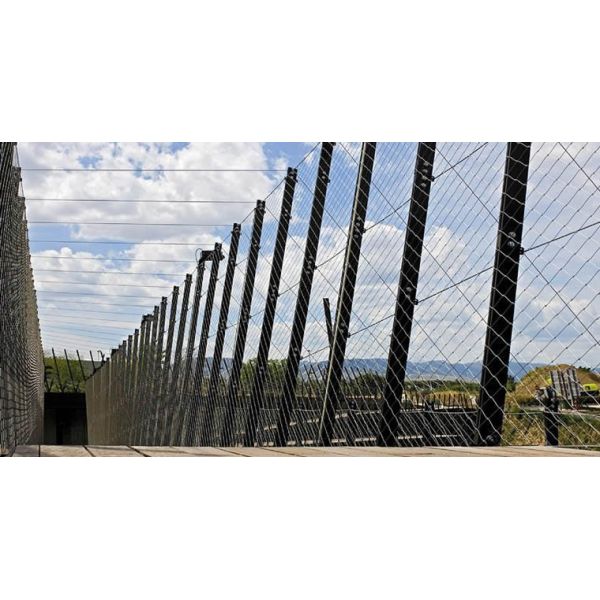

Stainless steel ferrule rope mesh makes the bridge grand and safe.

Suspension Bridge Railing Mesh Details:

  • Rope material: high quality stainless steel 304, 316, 304L and 316L.
  • Rope diameter: 1.2mm to 3.2mm, and other rope diameters are also available.
  • Rope construction: 7 × 7 and 7 × 19 are the main used, but 1 × 7 and 1 × 19 are also supplied.
  • Mesh type: stainless steel ferrule rope mesh or stainless steel knotted rope mesh.
The specification of suspension bridge railing mesh
Code Rope Construction Rope Diameter Aperture Breaking Force
Inch mm mm kN
SSBRM-01 7 × 19 1/8 3.2 90 × 156 7.38
SSBRM-02 7 × 7 3/32 2.4 70 × 121 4.18
SSBRM-03 7 × 7 5/64 2.0 80 × 139 3.17
SSBRM-04 7 × 7 5/64 2.0 70 × 121 3.17
SSBRM-05 7 × 7 1/16 1.6 60 × 104 2.17
SSBRM-06 7 × 7 1/16 1.6 51 × 87 2.17
SSBRM-07 7 × 7 3/64 1.2 51 × 87 1.22
SSBRM-08 7 × 7 3/64 1.2 40 × 69 1.22
