Specifications

Brand Name :

LNF Stainless Steel Wire Mesh

Model Number :

Stainless Steel Wire Mesh

Certification :

ISO

Place of Origin :

China

MOQ :

1 Roll

Price :

138.88$-8789$/roll

Payment Terms :

T/T, Western Union, MoneyGram

Supply Ability :

10000sqm per month

Delivery Time :

15 days

Packaging Details :

metal pallet

Application :

Filters,Woven Wire Mesh,mining,Protecting Mesh,Circuit board printing

Weave style :

Plain Weave,twill weave,Plain/Twill Weave,Dutch/Plain/Twill Weave,twill or dutch

Type :

Weave Wire Mesh,Wire Cloth,Welded Mesh,Chain Link Mesh,Linear

Technique :

Woven,Welded Mesh

Material :

Stainless Steel Wire,304,316,imported wire 304N,SUS stainless steel

Wire diameter :

Requirement,0.1-5MM,0.02-2mm,0.018mm-2.5mm,BWG33-BWG16

Width :

Usually1M,0.5m-3m or customized,1-2meters,1m,102mm

Product name :

Square 4X4 Woven Flour 100 Micron Stainless Steel Wire Mesh,Stainless Steel Security Wire Mesh,SS304 316 dutch weave micronic stainless steel wire mesh,Food grade 100 micron stainless steel wire mesh

Usage :

oil,space flight,filter,Printing,chmical industry

Length :

1-30m,30mtr 60mtr,30m/roll 50m/roll or as required,30m per roll or as required,30m-100m or customerized

Feature :

Acid-resisting,corrosion resistent etc.,Anti-corrosion,alkali resist,alkali-resisting etc

Color :

Silver,steel

Hole shape :

Square Hole,triangular tunnel openings,rectangle hole

Mesh :

1-3200mesh,3-500 MESH,1-635mesh

Advantage :

Superior wire,standard mesh,factory direct sale,competitive price

Mesh count :

1-400mesh,1x1-635x635mesh/inch,2-635mesh

Sample :

Avaliable

Name :

Welded Wire Mesh Fence,304 316 20Mesh Plain Woven Stainless Steel Wire Mesh

Packing :

paper tube inside+ wodden box +plastic bag +,waterproof paper,Wooden carton,plastic film

Description

Stainless Steel Dutch Weave Wire Cloth

Dutch Weave Wire Cloth has four types of weaves, which has plain dutch woven,twill dutch woven, reverse dutch woven and five heddle weave.
Dutch woven wire filter cloth can be weaved by stainless steel wire, nickel wire, brass wire and galvanized wire.

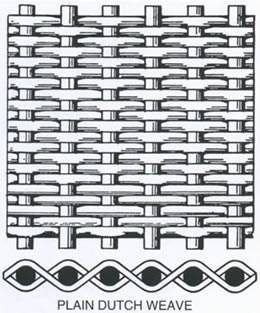

Plain Dutch Woven Wire Cloth is woven with a large wire diameter in the warp direction and a relatively smaller wire in the shute direction. This weave has great strength and is available in wide range of micron ranges. It is primarity used to filter a wide range of liquid and slurry products.

Stainless Steel Dutch Weave Wire Cloth

Specification of Plain Dutch Weave Wire Cloth
Mesh/Inch Warp x Weft	Wire Diameter mm	Weight kgs/m²	Filtering value μm
7 x 50	0.70 x 0.54	4.50	315
8 x 60	0.55 x 0.45	3.64	280
12 x 64	0.58 x 0.42	3.80	180
16 x 80	0.43 x 0.34	3.05	140
14 x 88	0.50 x 0.33	2.81	150
18 x 100	0.40 x 0.28	2.61	140
24 x 110	0.35 x 0.25	2.45	115
25 x 140	0.30 x 0.20	1.96	100
30 x 150	0.23 x 0.18	1.61	95
30 x 160	0.23 x 0.18	1.69	90
40 x 200	0.18 x 0.14	1.30	75
45 x 220	0.18 x 0.125	1.22	56
50 x 250	0.14 x 0.11	1.00	60
50 x 280	0.14 x 0.10	0.84	45
60 x 300	0.14 x 0.09	0.80	40
65 x 320	0.12 x 0.085	0.75	36
70 x 350	0.11 x 0.08	0.70	32
70 x 400	0.11 x 0.07	0.68	31
80 x 400	0.12 x 0.07	0.77	35

Twill Dutch Weave Wire Cloth

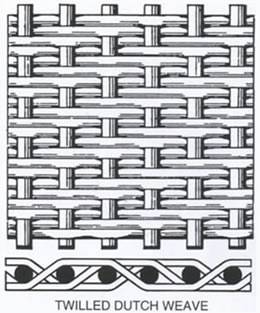

Twill Dutch Weave Wire Cloth is the larger diameter warp wires successively pass over and under the lighter diameter shute wires. Each pass of the shute wires shifts the over and under movement one wire. The shute wires are driven up close, resulting in a tightly woven filter cloth with tapered or wedge shaped openings.

Specification of Twill Dutch Weave Wire Cloth
Mesh/Inch Warp x Weft	Wire Diameter mm	Weight kgs/m²	Filtering value μm
20 x 250	0.90 x 0.20	6.55	87
30 x 250	0.25 x 0.20	2.96	70
80 x 700	0.10 x 0.08	1.32	25
80 x 780	0.11 x 0.07	1.19	27
100 x 780	0.10 x 0.07	1.20	25
100 x 900	0.10 x 0.06	1.06	22
100 x 780	0.10 x 0.07	1.21	24
120 x 400	0.10 x 0.06	0.66	40
120 x 600	0.10 x 0.06	0.84	30
120 x 1100	0.08 x 0.05	0.88	18
165 x 800	0.07 x 0.05	0.70	15
165 x 1200	0.07 x 0.04	0.68	19
165 x 1400	0.07 x 0.04	0.76	14
200 x 600	0.06 x 0.045	0.48	20
200 x 900	0.05 x 0.035	0.40	23
200 x 1400	0.07 x 0.04	0.80	10
250 x 2000	0.04 x 0.027	0.46	8
280 x 2200	0.035 x 0.025	0.42	6.3
320 x 2300	0.033 x 0.024	0.41	5
325 x 2300	0.035 x 0.025	0.45	5
400 x 2800	0.025 x 0.020	0.36	3
500 x 3500	0.025 x 0.015	0.30	5

Reverse Dutch Weave Wire Cloth

Reverse Dutch Weave Wire Cloth is a very strong woven product.This mesh is ideal for making filter belts, and applications where fine filtration and great strength are required.
Properties: Very good flow rates, small pressure drop; surface is slightly structured.
Applications: Pressure and vacuum filters; filter candles.

Specification of Reverse Dutch Weave Wire Cloth
Mesh/Inch Warp x Weft	Wire Diameter Warp x Weft mm	Wire Diameter Warp x Weft inch	Absolute Filter rating μm
63 x 18	0.40 x 0.60	0.0157 x 0.0236	220
107 x 20	0.24 x 0.60	0.0094 x 0.0236	210
130 x 35	0.20 x 0.40	0.0079 x 0.0157	80
132 x 16	0.24 x 0.60	0.0094 x 0.0236	200
132 x 32	0.20 x 0.40	0.0079 x 0.0157	105
140 x 40	0.19 x 0.38	0.0075 x 0.015	100
170 x 40	0.20 x 0.45	0.0079 x 0.0177	130
180 x 120	0.088 x 0.10	0.0035 x 0.004	75
200 x 120	0.08x 0.10	0.0031 x 0.004	70
175 x 40	0.15 x 0.38	0.0079 x 0.0157	70
175 x 50	0.15 x 0.30	0.0059 x 0.012	60
290 x 75	0.09 x 0.20	0.0035 x 0.0079	55
600 x 100	0.04x 0.14	0.0157 x 0.0055	25
615 x 130	0.04 x 0.13	0.0157 x 0.0051	22
615 x 102	0.04x 0.16	0.0157 x 0.0063	42
625 x 133	0.04 x 0.13	0.0157 x 0.0051	17
720 x 150	0.036 x 0.10	0.0014 x 0.0039	17
850 x 155	0.03 x 0.10	0.0012 x 0.004	10
