Stainless Steel Disc Filter Made Stainless Steel Wire Mesh
Stainless Steel Disc Filter Made Stainless Steel Wire Mesh
Stainless Steel Disc Filter Made Stainless Steel Wire Mesh
Stainless Steel Disc Filter Made Stainless Steel Wire Mesh
Specifications
Brand Name :
LN
Model Number :
Crimped Wire Mesh
Certification :
SGS,FORM E,ISO,FORM A,SGS/ISO
Place of Origin :
China
MOQ :
100pcs
Price :
1.88$/m2
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
10000 sqm per week
Delivery Time :
5-7 days
Packaging Details :
pallet
Application :
Filters,Screen,Woven Wire Mesh,Protecting Mesh,decorative wire mesh
Technique :
Woven,Welded Mesh,Weave
Type :
Crimped Wire Mesh,Weave Wire Mesh,Wire Cloth,Crimped Screen,Reinforced Mesh
Material :
Stainless Steel Wire,Black Wire Mesh,copper,High carbon steel,SS304/SS304L/SS316/SS316L/SS310/Low carbon steel wire
Weave style :
Plain Weave,twill,Dutch Weave,First roll,compound bending
Wire diameter :
0.5-10mm,0.025-1mm,0.7mm-6.0mm,Requirement,40-600micron
Hole shape :
Square Hole,as per requirement
Color :
Silver,Black,copper,stainless steel color,Customized
Length :
30m per roll or as required,customized,30m,50m/roll at customer request,0.5-5.8m
Product name :
crimped wire mesh,65Mn steel wire Iron wire square Hole crimped wire mining screen mesh,architectural woven wire mesh,65Mn steel wire High Manganese Stainless Steel Woven Crimped Wire Mesh
Usage :
coal industrial,screening coarse material,Speaker Grills,chicken wire mesh,construction industrial
Surface treatment :
Untreatment,copper,powder coated Antique Bronze,Acid Washing,Powder Coating
Width :
customized,1-5m,1.2m,0.5-2.2m,0.5-3m
Feature :
Durable,Corrosion Resistance,beautiful,Anti-corrosion,Flexibility
Features :
Durable,alkali-resisting etc.,Structure firm and durable,Acid resistant,Acid-resisting
Name :
Stainless Steel Mesh Screen,double crimped wire mesh,mine screen mesh
Keyword :
Stainless steel woven net,woven mesh,crimped wire mesh,galvanized square woven wire mesh
Hole size :
0.1-30mm
Description

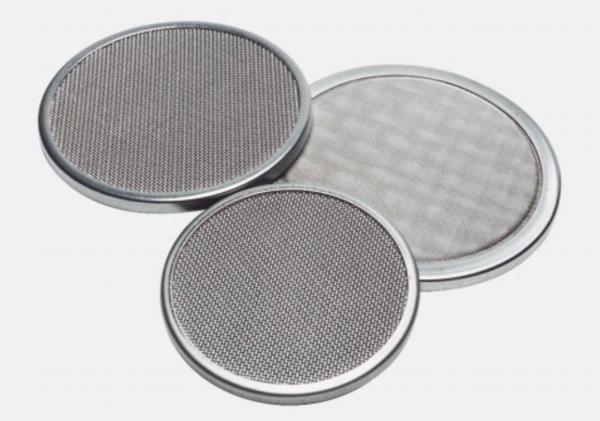

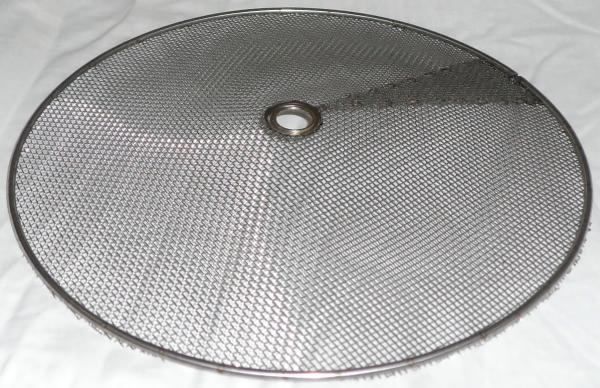

Stainless Steel Filter discs are made of metal wire mesh in single layer or multi-layer. Double layers or three layers,Can be classified into round, square, kidney shape, oval and other special shapes according to the outside designs.

Materials: Stainless steel woven wire mesh and wire cloth, brass wire cloth,phosphor bronze wire cloth or mild steel wire mesh,etc.

Applications: Filter discs are mainly used in the absorption, evaporation and filtration process in petroleum, chemical, medicine, metallurgy, machinery, ship and automobiles to delete the mist drop or liquid foam or used as air filter in cars and trucks.

Disc Diameter: From 5mm to 600mm.

Stainless Steel Disc Filter Made Stainless Steel Wire MeshStainless Steel Disc Filter Made Stainless Steel Wire Mesh

Stainless Steel Disc Filter Made Stainless Steel Wire MeshStainless Steel Disc Filter Made Stainless Steel Wire Mesh

Specification of Stainless Steel Wire Mesh Plain Weave
Mesh Wire Dia.(MM) Opening(MM) Material(AISI)
7 1.00 2.63 304 or 316
10 0.60 1.94 304 or 316
12 0.50 1.62 304 or 316
16 0.40 1.19 304 or 316
16 0.35 1.24 304 or 316
18 0.35 1.06 304 or 316
20 0.40 0.87 304 or 316
24 0.26 0.80 304 or 316
30 0.30 0.55 304 or 316
35 0.17 0.56 304 or 316
40 0.23 0.40 304 or 316
50 0.20 0.31 304 or 316
60 0.15 0.27 304 or 316
70 0.12 0.24 304 or 316
80 0.12 0.19 304 or 316
90 0.12 0.16 304 or 316
100 0.10 0.15 304 or 316
120 0.09 0.12 304 or 316
150 0.06 0.11 304 or 316
180 0.05 0.091 304 or 316
200 0.05 0.077 304 or 316
220 0.05 0.065 304 or 316
250 0.04 0.062 304 or 316
270 0.035 0.059 304 or 316
