W2m Galvanized Army Military Gabion Flood Barrier Defense
W2m Galvanized Army Military Gabion Flood Barrier Defense
Specifications
Brand Name :
KAAPGN
Model Number :
KPZ-204
Certification :
ISO9001
Place of Origin :
Hebei, China
MOQ :
50 sets
Price :
USD12.6-46.9/set FOB Tianjin
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 sets per day
Delivery Time :
7-10 days after confirmed order
Packaging Details :
in pallet
Name :
Galvanized barrier wall Army Gabion Military Gabion Flood Barrier Gabion defense
Material :
Iron wire
Surface treatment :
galvanized
Diameter :
4mm
Hole size :
76.2X76.2mm
Width :
0.3-2m
Height :
0.3-2m
Length :
0.3-10m
Packing :
in pallet or as yours
MOQ :
50 sets
Description

Galvanized barrier wall Army Gabion Military Gabion Flood Barrier Gabion defense

Wire diameter: 4mm, 5mm

Mesh size: 50mmx50mm, 76.2mmx76.2mm,100mmx100mm

Panel size: 2.21mx2.13m, 1.37mx1.06m, 0.61mx0.61m, it also can be customized according to customers requirement

Geotextile: in heavy duty non-woven polypropylene

Finish: hot dipped galvanized, galfan coated

Packing: packed in pallet then wrapped with shrink film

It is also named as defensive barrier,
barrier explosion-proof wall, hesco bastion, flood barrier,
blast wall, military bunker, hesco bag, multi-cellular defense barrier system, military barricades, military sand wall, etc.

Product feature:

1.Units can be both lined or unlined in other word it can be used together to any length, and can be stacked for

additional height.

2. The spiral hinged corners allows flat packing for ease of transportation

3. The welded mesh frame is of highly durable construction

4. The Galfan coated welded mesh frame is ideal for containing large amounts of the geavy fill material that

gives the system its strength.

5. The non-woven geotextile liner allowing a wide range of fill material

Military Defense

Perimeter Security Barrier and Defence Wall

Temporary Fort and Command Post

Observation Points and Border Checkpoints

Military Barrier Fortification System

Equipment Revetment

Explosives and Contraband Search Areas

Guard Posts

Personnel and Material Bunkers

Shooting Range

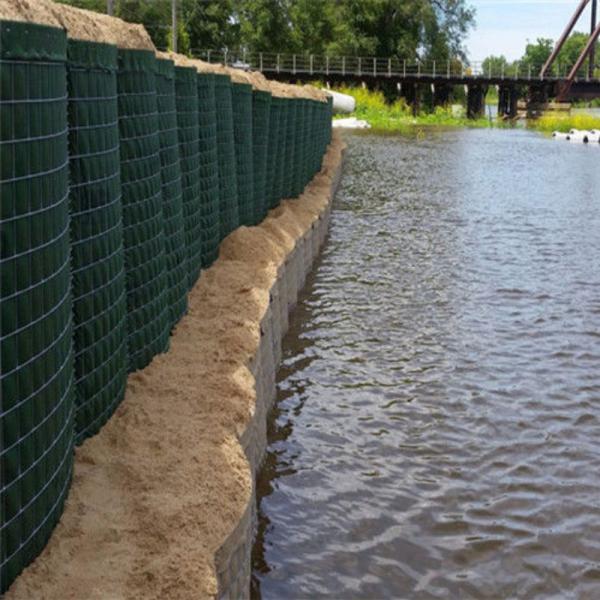

Flood Control

Flood Prevention Barrier

Permanent or Semi-permanent Dike

Flood Control Retaining Wall

Protection Engineering of Seaside Area

Protecting Existing Structures

Coastal Erosion Control

Type
Length
Width
Height
No. of Cells / Unit
Wire dia.
Mesh Opening
Packing
20'
40'
KAAPGN-1
(10m)
3'6"(1.06m)
4'6"(1.37m)
5+4 Cells
5mm
76.2x76.2mm
56 Units
112 Units
KAAPGN-2
4'(1.22m)
2'(0.61m)
2'(0.61m)
2 Cells
5mm
76.2x76.2mm
720 Units
1440 Units
KAAPGN-3
32'9"(10m)
3'3"(1m)
3'3"(1m)
5+5 Cells
5mm
76.2x76.2mm
80 Units
160 Units
KAAPGN-4
32'9"(10m)
5'(1.52m)
3'3"(1m)
5+5 Cells
5mm
76.2x76.2mm
32 Units
64
Units
KAAPGN-5
10'(3.05m)
2'(0.61m)
2'(0.61m)
5 Cells
5mm
76.2x76.2mm
300 Units
600 Units
KAAPGN-6
10'(3.05m)
2'(0.61m)
5'6"(1.68m)
5 Cells
5mm
76.2x76.2mm
108 Units
216 Units
KAAPGN-7
91'(27.74m)
7'(2.13m)
7'3"(2.21m)
5+4+4 Cells
5mm
76.2x76.2mm
6 Units
15 Units
KAAPGN-8
32'9"(10m)
4'(1.22m)
4'6"(1.37m)
5+4 Cells
5mm
76.2x76.2mm
32 Units
72 Units
KAAPGN-9
30'(9.14m)
2'6"(0.76m)
3'3"(1m)
6+6 Cells
5mm
76.2x76.2mm
70 Units
140 Units
KAAPGN-10
100'(30.5m)
5'(1.52m)
7'3"(2.21m)
5+5+5+5 Cells
5mm
76.2x76.2mm
6 Units
14 Units
KAAPGN-11
4'(1.22m)
12'(0.3m)
4'(1.22m)
2 Cells
5mm
76.2x76.2mm
480 Units
960 Units
KAAPGN-12
108'(33m)
3'6"(1.06m)
7'(2.13m)
5+5+5+6+6+6 Cells
5mm
76.2x76.2mm
6 Units
15 Units
