50x100mm Galvanized 4mm Gabion Wire Mesh Boxes
50x100mm Galvanized 4mm Gabion Wire Mesh Boxes
Specifications
Brand Name :
KAAPGN
Model Number :
KPZ-204
Certification :
ISO9001
Place of Origin :
Hebei, China
MOQ :
50 sets
Price :
USD12.6-46.9/set FOB Tianjin
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 sets per day
Delivery Time :
7-10 days after confirmed order
Packaging Details :
in pallet
Name :
50x100mm gabion wire mesh boxes garden stone wall
Material :
Iron wire
Surface treatment :
galvanized
Diameter :
4mm
Hole size :
50x100mm
Width :
0.3-1m
Height :
0.3-1.5m
Length :
0.3-2m
Packing :
in pallet or as yours
MOQ :
50 sets
Description

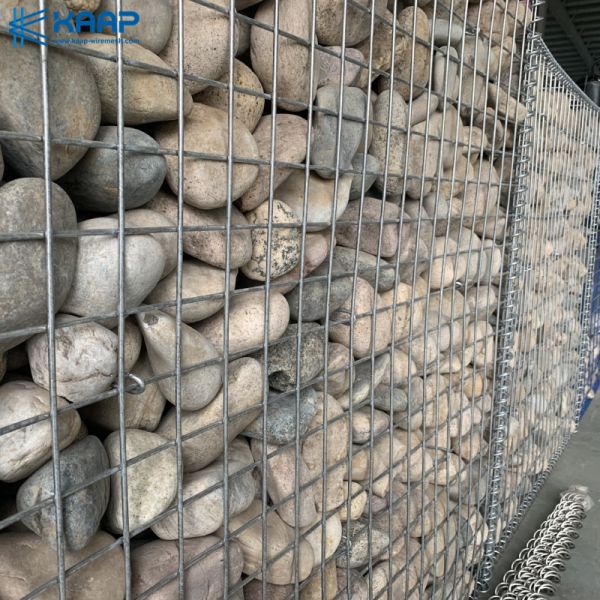

50x100mm gabion wire mesh boxes garden stone wall

1. Finishing: heavy duty galvanized or galfan galvanized
2. Surface treatment: electro galvanized, hot-dipped galvanized, pvc coated, stainless steel
3. Wire diameter: 2.7--5mm
4. Mesh size/opening: 37.5x75mm, 50x50mm, 75x75mm, 100x50mm, 100x100mm
5. Zinc coating: 40-290g/mm2
6. Application: Flood dam, dam and diversion, Prevent soil erosion, bridge protection, retaining wall, road protection
7. Feature:easy to install, beautiful structure, low cost, it is the best choice for garden decoration greening slope.

Architectural gabion Specification:

1) Material: Low carbon steel; galvanized steel
2) Gabion box Length: 1m; 2m; 3m; 4m or as your request.
3) Wire diameter: 4.0mm--6.0mm
4) Spiral wire diameter: 4.5mm--6.5mm
5) Surface treatment:
a. Hot dipped galvanized: galvanized steel wire tensile strength 350-550 mpa/mm2 , zinc contect max up to 350g/m2
b. Galfan coating (Zn-5%Al-MM or Zn-10%Al-MM): steel wire tensile strength 350--550 mpa/mm2 , corrosion resistance is 3 times of galvanized.
c. Hot dipped galvanzied+PVC coated
d. Galfan coating+PVC coated
6) ASTM standard: ASTM A 856; ASTM A 641

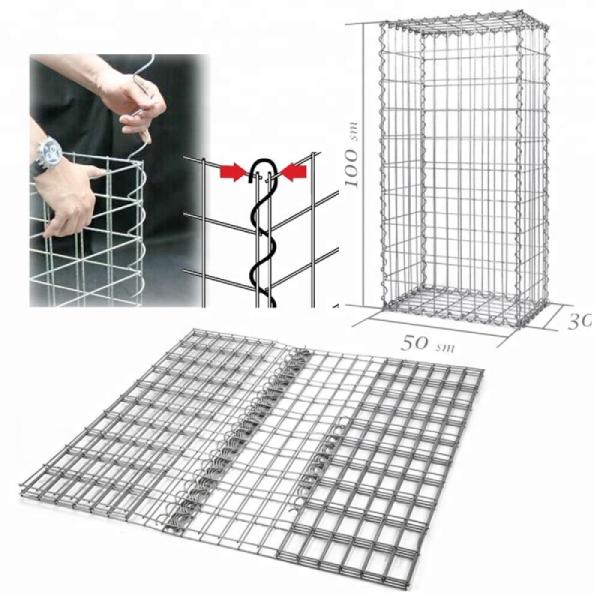

How to install welded gabion box?


1. Ends, diaphragms, front and back panels are placed upright on the bottom section of wire mesh.
2. Secure panels by screwing spiral binders through the mesh openings in adjacent panels.
3. Stiffeners shall be placed across the corners, at 300mm from the corner. Providing a diagonal bracing, and crimped over the line and cross wires on the front and side faces. None are needed in interior cells.
4. Gabion box filled with graded stone by hand or with a shovel.
5. After filling, close the lid and secure with spiral binders at the diaphragms, ends, front and back.
6. When stacking tiers of the welded gabion box, the lid of the lower tier may serve as the base of the upper tier. Secure with spiral binders and add pre-formed stiffeners to exterior cells before filling with graded stones

4mm wire square hole size welded mesh gabions stone cage specifications as below

Nominal Box sizes ( m) No. of diaphragms (no.) Capacity per box (m3)
1.0 × 1.0 × 0.5 Nil 0.50
1.0 × 1.0 × 1.0 Nil 1.00
1.5 × 1.0 × 0.5 Nil 0.75
1.5 × 1.0 × 1.0 Nil 1.50
2.0 × 1.0 × 0.5 1 1.00
2.0 × 1.0 × 1.0 1 2.00
3.0 × 1.0 × 0.5 2 1.50
3.0 × 1.0 × 1.0 2 3.00
4.0 × 1.0 × 0.5 3 2.00
4.0 × 1.0 × 1.0 3

4.00

50x100mm Galvanized 4mm Gabion Wire Mesh Boxes50x100mm Galvanized 4mm Gabion Wire Mesh Boxes50x100mm Galvanized 4mm Gabion Wire Mesh Boxes50x100mm Galvanized 4mm Gabion Wire Mesh Boxes50x100mm Galvanized 4mm Gabion Wire Mesh Boxes50x100mm Galvanized 4mm Gabion Wire Mesh Boxes50x100mm Galvanized 4mm Gabion Wire Mesh Boxes
