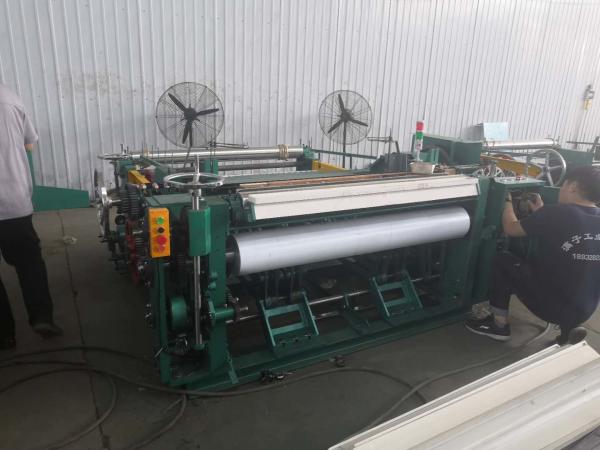

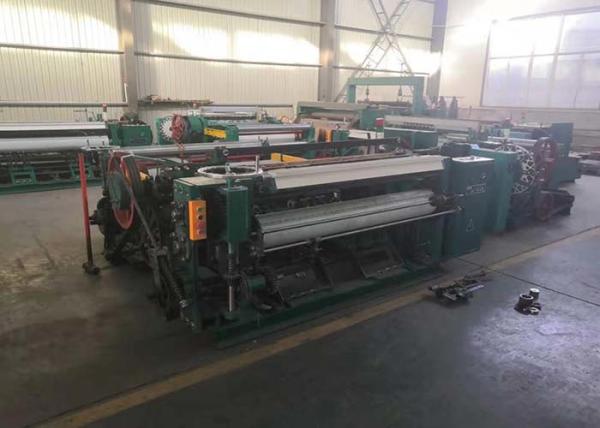

40-400 Mesh / Inch 0.200mm Shuttleless Weaving Machine
40-400 Mesh / Inch 0.200mm Shuttleless Weaving Machine
40-400 Mesh / Inch 0.200mm Shuttleless Weaving Machine
40-400 Mesh / Inch 0.200mm Shuttleless Weaving Machine
40-400 Mesh / Inch 0.200mm Shuttleless Weaving Machine
40-400 Mesh / Inch 0.200mm Shuttleless Weaving Machine
Specifications
Brand Name :
JingLian
Model Number :
ZWJ--1600B
Certification :
IATF16949:2016
Place of Origin :
Hebei, China (Mainland)
MOQ :
1 Set
Payment Terms :
L/C, T/T
Supply Ability :
100 Sets/month
Delivery Time :
25 Days
Packaging Details :
Nude packing
TYPE :
ZWJ-1300B
MESH SIZE :
40-400mesh/inch
WIRE DIAMETER :
0.025-0.200mm
BEATING-UP FREQUENCY :
70 r/min
MESH WIDTH :
1600mm
OVERALL SIZE :
2.6m*3.1m*1.4
Description

Fully Automatic Shuttleless Wire Mesh Weaving Machines for For 40-400 Mesh / Inch

Summary of Fully Automatic Shuttleless Wire Mesh Weaving Machines for For 40-400 Mesh / Inch

The light-duty metal wire net weaving machine is applicable for the industry of metal wire net weaving, and it can be used to weave mesh nets, microgroove nets and other nonmetal nets. The products weaved are widely used in various industries including petroleum, chemical industry, machinery, and aviation, etc.

Fully Automatic- The Shuttleless Wire Mesh Weaving machine adopts technique of shuttle less and straightaway weft leading, automatic warp feeding and winding. Shedding are small and surfaces of woven screens are smooth. There is not any bright spot, bright trace and other defects on fine screen. The machine can make light-grade in the standard of GB/T5330-2003. Such as warp wire feeding , rolling of mesh, braking and warning system when the wire is broken.

Main features of Fully Automatic Shuttleless Wire Mesh Weaving Machines

  1. It is highly adaptive to metal wires.
  2. It has a large range for adjustment and can weave in various patterns including plain weave, tilted weave, bead pattern, and tapered contrast microgroove.
  3. The weft wire is linearly led in without any shuttle, the warp line feeding and take-up are carried out mechanically and automatically, the opening size is small, and the net surface is flat and orderly without any defects.
  4. It works automatic stopping and displaying functions at any warp broken or weft broken.
  5. The whole machine works stably in a low center of gravity and a low level of noise.

Main Parameters of Fully Automatic Shuttleless Wire Mesh Weaving Machines

:

TYPE ZWJ-1300B ZWJ-1600B ZWJ-2100B
MESH SIZE 40-400mesh/inch 40-400mesh/inch 40-400mesh/inch
WIRE DIAMETER 0.025-0.200mm 0.025-0.200mm 0.025-0.200mm
BEATING-UP FREQUENCY 70 r/min 70 r/min 70 r/min
MESH WIDTH 1300mm 1600mm 2100mm
MOTOR POWER 2.2kw 2.2kw 2.2kw
OVERALL SIZE 2.6m*2.8m*1.4m 2.6m*3.1m*1.4m 2.6m*3.6m*1.4m

Main components and specification

In the direction of the technical flow for weaving, it mainly consists of: take-up unit, weft beating-up unit, opening unit, and warp feeding unit, etc.

Note-The light metal shuttle less wire mesh machine after setting up can produce Plain Dutch Wire Mesh, Reverse Plain Dutch Wire Mesh and Twill Dutch Wire Mesh. The Max. Mesh Size can up to 40 To 400 mesh

.

Operation

  1. The weaving machine can be operated through press buttons and turn knobs, shown as Fig. 1.

Forward

Inch

Stop

Reverse

Manual

Automatic

О

О

О

О

О
  1. The weaving machine can be started up and stopped at any running position.
  3. It has the function of automatic stop and red/green light indication at weft or warp broken.
  5. Turn the knob to the MANUAL stage to release the motor brake for manual trial running and adjusting.
  7. Turn the knob to the AUTOMATIC stage and then press the FORWARD button to bring the weaving machine into normal operation.
  9. At a fault of weft broken or warp broken, the weaving machine will be automatically stopped and the red/green light will give an indication. The weaving machine can be brought back into normal operation after the fault is removed, the STOP button is pressed down, and the indicator is turned off. If the indicator does not turn off when the STOP button is pressed down, and the weaving machine can not be brought back into normal operation even by pressing down the FORWARD button, it means the fault hasn't been removed yet.
  11. When necessary, the weaving machine can be stopped at any running position by pressing down the STOP button.
  13. The weaving machine will be brought into reverse running by pressing down the REVERSE button. Usually reverse running is required at any weft broken, but it is recommended not using this function frequently otherwise the rapier will break off the warp line or the motor will be damaged because of overheat.
  15. The weaving machine will be inching by pressing down the INCH button, but it is recommended not using this function otherwise the motor will be damaged.
  17. Installation and Tiral Operation
