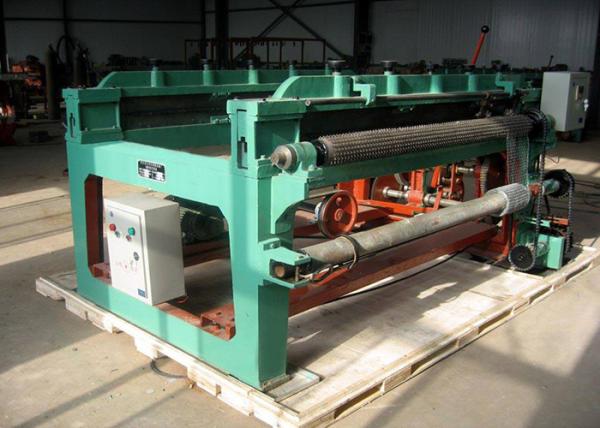

Net Type Weave Mesh 90-120T / Min High Speed Wire Mesh Weaving Machine
Net Type Weave Mesh 90-120T / Min High Speed Wire Mesh Weaving Machine
Net Type Weave Mesh 90-120T / Min High Speed Wire Mesh Weaving Machine
Net Type Weave Mesh 90-120T / Min High Speed Wire Mesh Weaving Machine
Specifications
Brand Name :
JingLian
Model Number :
ZWJ-1300B
Certification :
IATF16949:2016
Place of Origin :
Hebei, China (Mainland)
MOQ :
1 set
Payment Terms :
D/P, Western Union, MoneyGram
Supply Ability :
100 sets/month
Delivery Time :
25 Days
Packaging Details :
Nude packing
Name :
Shuttleless Weaving Machine
Type :
Automatic
Color :
As Required
Weight :
2.75T
Dimension(L*W*H) :
2800*3100*1650
Wire diameter :
0.025-0.25
Speed :
90-120T/min
Woven Type :
Plain ,Twill
Warranty Period :
1 year
Description
Net Type Weave Mesh 90-120T / Min High Speed Wire Mesh Weaving Machine
Wire Mesh Weaving Machine Description

Metal Wire Mesh Weaving Machine is also called mesh weaving machine without shuttle. It was divided into three models:ZWJ-1300 medium type metal wire mesh weaving machine,ZWJ-1300B metal wire mesh weaving machine and ZWJ-2000 heavy type metal wire mesh weaving machine.

Wire Mesh Weaving Machine Data

Type Max width of mesh Mesh density Speed of crankshaft Power of motor Overall weight
ZWJ-1300 1300mm 10-350mesh 53rpm 4kw 6000kg
ZWJ-1600 1600mm 10-350mesh 53rpm 4kw
ZWJ-2000 2000mm 10-350mesh 53rpm 4kw

Wire Mesh Weaving Machine Application:

used for industrial purpose, window doors and poultry’s guards,Sieves, filters and other purpose.

Wire Mesh Weaving Machine Character:

single electromotor driving be suitable for soft metal, stainless steel, flexible copper wire, galvanized wire, etc

Wire Mesh Weaving Machine Notes:

The light metal shuttle less wire mesh machine (LZWJ-1300B/LZWJ-1600Q) after setting up can produce Plain Dutch Wire Mesh, Reverse Plain Dutch Wire Mesh and Twill Dutch Wire Mesh. The Max. Mesh Size can up to 2600mesh.

ZWJ-1300B wire weaving machine

1, single electromotor driving

2, Automatic compensation of winding and was feeding

3, It stopped automatically when the latitude and longitude is cutted off

4, be suitable for soft ferrous metal, flexible brass wire, galvanized wire and organic fiber

5, five kinds of arbitrary combination

Our Services

Provide installation and commissioning services abroad, one year warranty, the warranty period there were problems, at any time to repair.

Packaging & Shipping

The control box is wooden case package, other small parts the bag package, the big part is waterproof film package, if you need others we can do also

Company Information

1. we have engaged in wire mesh machine manufacture over 15 years.

2.We are produce and sell kinds of wire mesh machine, like chain link fence machine, welding wire mesh machine, expanded plate mesh machine, weaving machine, razor barbed wire machine, perforated mesh machine and so on
