1300B Stainless Steel Automatic Wire Mesh Weaving Machine 2.2KW Low Noise
1300B Stainless Steel Automatic Wire Mesh Weaving Machine 2.2KW Low Noise
1300B Stainless Steel Automatic Wire Mesh Weaving Machine 2.2KW Low Noise
1300B Stainless Steel Automatic Wire Mesh Weaving Machine 2.2KW Low Noise
1300B Stainless Steel Automatic Wire Mesh Weaving Machine 2.2KW Low Noise
1300B Stainless Steel Automatic Wire Mesh Weaving Machine 2.2KW Low Noise
Specifications
Brand Name :
JingLian
Model Number :
ZWJ--1300B
Certification :
IATF16949:2016
Place of Origin :
Hebei, China (Mainland)
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 Sets/month
Delivery Time :
15 Days
Packaging Details :
Nude packing
Machine Type :
Automatic
Width :
1300 mm
Motor Power :
2.2 KW
After Sales Service :
Engineers Available To Service Overseas
Wire Diameter :
0.025--0.2 mm
Density :
4 -- 400
Color :
White and according to your requirements
After-sales service provided :
Engineers available to service machinery overseas
Description

1300B Stainless Steel Automatic Wire Mesh Weaving Machine 2.2KW

Summary

The machine consists of an organic frame, a main transmission part, a browning mechanism, a weft pulling mechanism of a sword belt and an automatic edge holding mechanism,
The main drive part includes motor, two-stage belt drive and crankshaft, and the pulley of the second stage belt drive is installed on the crankshaft. The weft pulling mechanism of the rapier includes gear, eccentric rod, connecting rod, pipe joint bearing, weft clamping device, sword path and rapier belt. A pin shaft is fixed on the gear. The upper end hole of the eccentric rod is sleeved on the pin shaft of the gear. Two connecting rods have holes at both ends. A hemispherical concave bowl is arranged in the middle of the connecting rod. The left end hole of the connecting rod is sleeved on the fixed pin shaft. The other end hole of the connecting rod is movably connected with the lower end hole of the eccentric rod by a pin shaft, The right end hole of the other connecting rod is sleeved on the fixed pin shaft, the middle part of the two connecting rods is movably connected by the pipe joint bearing, the left end hole of the other connecting rod is movably connected with the pipe joint bearing, the pipe joint bearing is connected with the rack, the rack is meshed with the gear, the gear is fixed with the sword belt through the rod, and the sword belt is reciprocating in the sword path. The chain wheel and chain drive the chain wheel of the edge gripper to cut the weft and grip the edge. The working surfaces of the two cams are installed on the central shaft in a positive and negative way. One end of the two brown feet is fixed, the other end is connected with the brown through the pull rod and swings around the fixed end. There are rollers in the middle of the two brown feet, and the two brown feet are hung on the pulley respectively

Main features

1

It is highly adaptive to metal wires.

2

It has a large range for adjustment and can weave in various patterns including plain weave, tilted weave, bead pattern, and tapered contrast microgroove.
3

The weft wire is linearly led in without any shuttle, the warp line feeding and take-up are carried out mechanically and automatically, the opening size is small, and the net surface is flat and orderly without any defects.
4

It works automatic stopping and displaying functions at any warp broken or weft broken.
5

The whole machine works stably in a low center of gravity and a low level of noise.
6

Type ZWJ-1300B weaving machine is an improvement based on Type ZWJ-1300A weaving machine to satisfy the user's requirement, as some of the parts are rebuilt, Type B machine is especially improved in the rigidity when comparing with Type A machine, and thus it is more suitable for weaving with wires in larger diameters. For type ZWJ-1600Q weaving machine, the weave breadth is enlarged on the basis of Type ZWJ-1300A and ZWJ-1300B weaving machines.

The technical parameters are shown in the Table below.

Item

Unit

Reference value

Wire net maximum breadth

mm

1300

Density

mm

0.45~0.036

Crankshaft rotating speed

r/min

65~90

Brake moto Power

 KW 2.2
Brake moto Voltage V 380
Brake moto Rotating speed

r/min

 1420

External dimension

 mm

2600×2800×1200

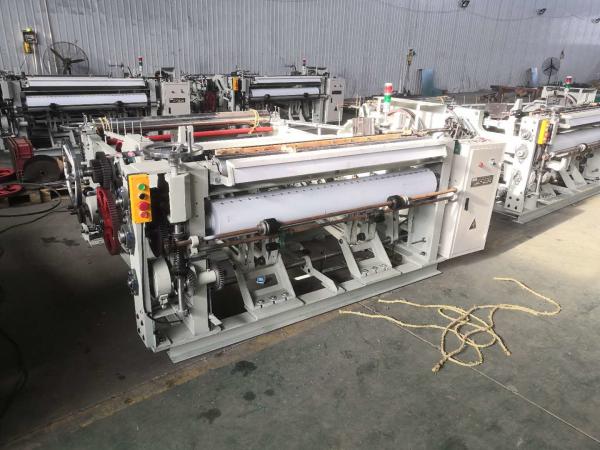

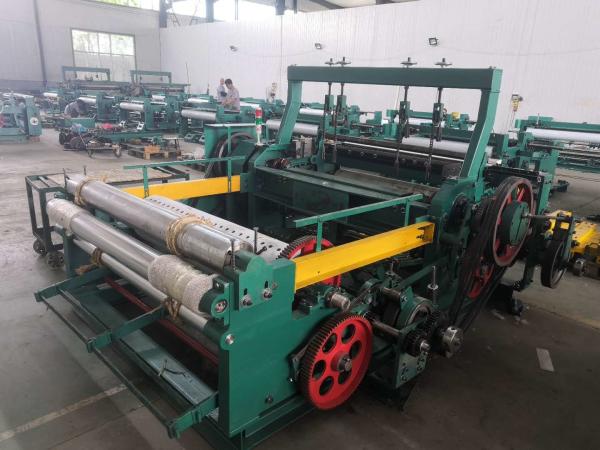

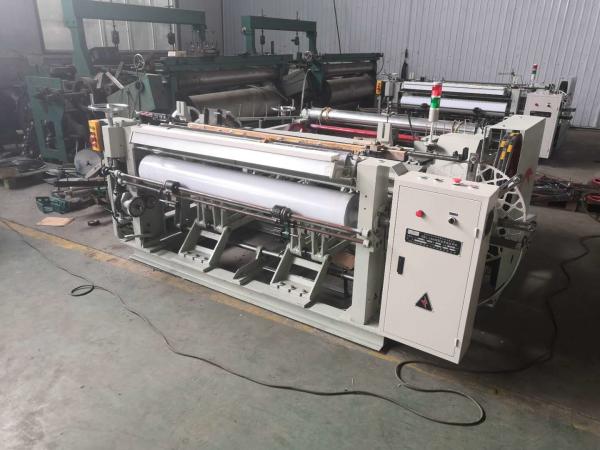

Machine picture

1300B Stainless Steel Automatic Wire Mesh Weaving Machine 2.2KW Low Noise

1300B Stainless Steel Automatic Wire Mesh Weaving Machine 2.2KW Low Noise
